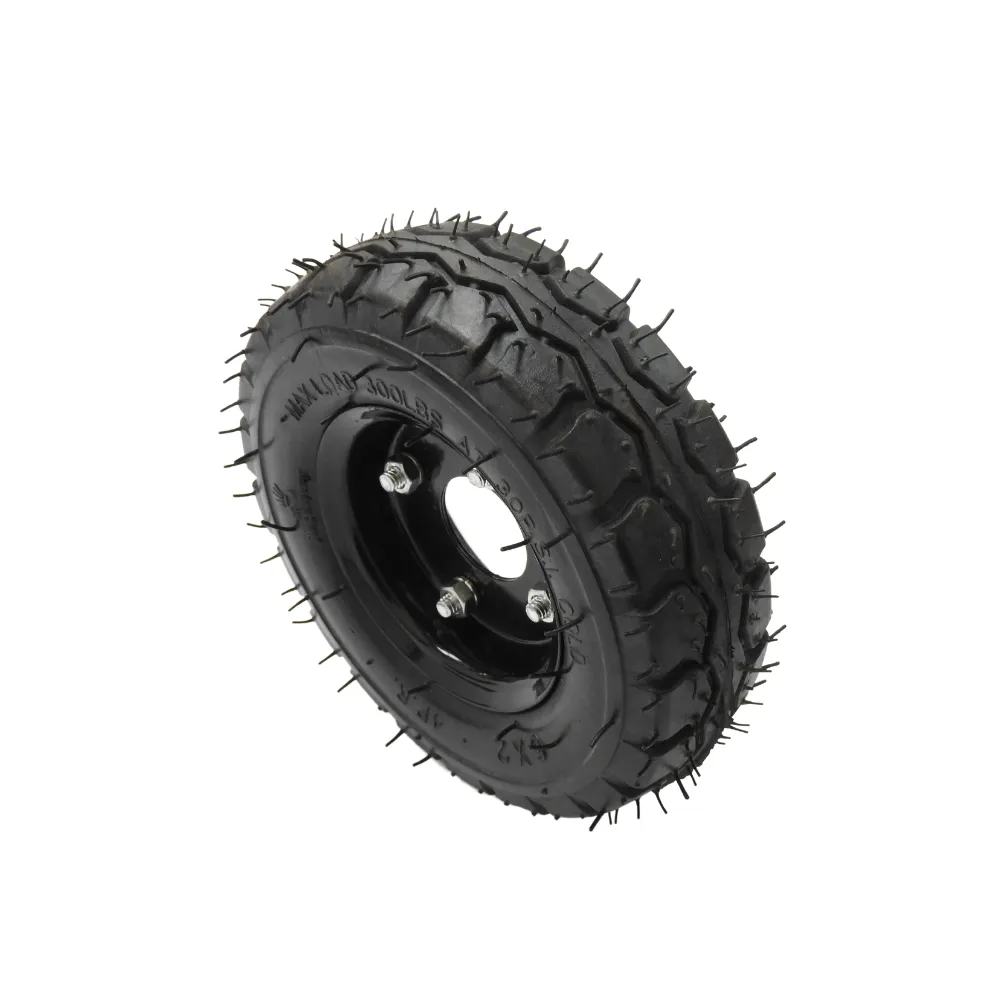

6.2 inch – 160mm Pneumatic Wheel

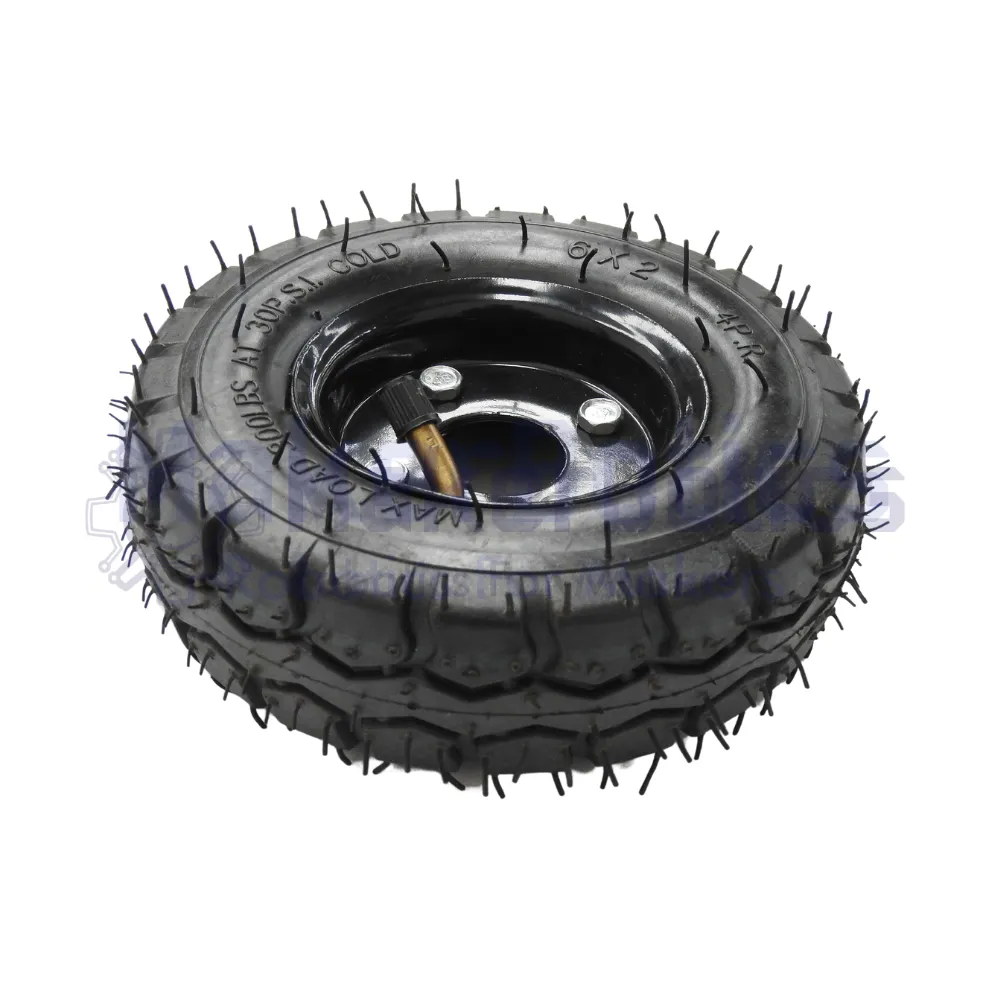

Our 160mm pneumatic wheels are ideal for various applications, including robotics, carts, or any situation that demands pneumatic wheels. These wheels offer great traction and can support a load of up to 50kg due to the high-quality rubber tyre and steel rim construction. They come with a two-piece steel rim set, securely fastened to the rubber wheel using the provided fasteners. Please note that our pneumatic wheels do not come with bearings and are designed for hubs with a 40mm bolt-hole mounting pattern.

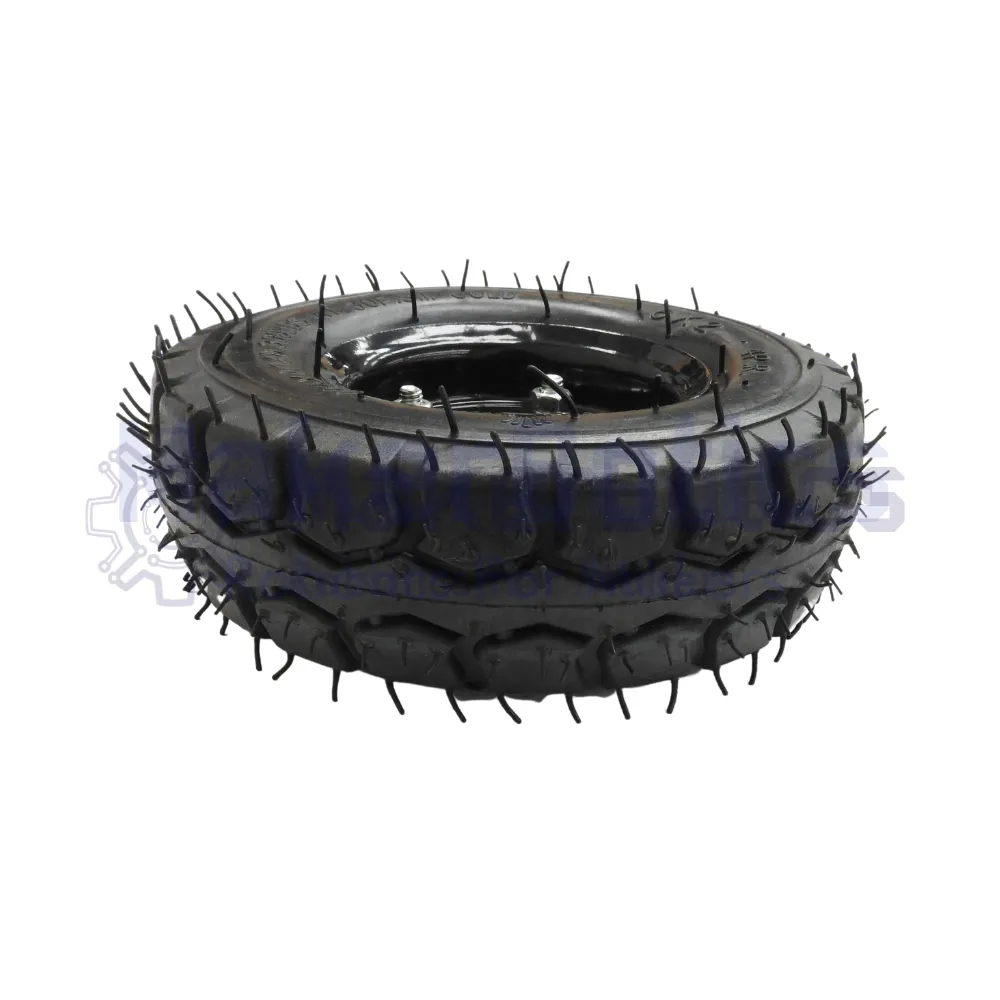

The tyre features a zig-zag tread pattern which is excellent for use on smooth paved surfaces and mild terrain when using them in a powered system.

When inflated, these wheels measure 6.2 inches or 160mm in diameter and 50mm width.

This wheel uses a M8 bolt to connect to the hub.

Features and Specifications

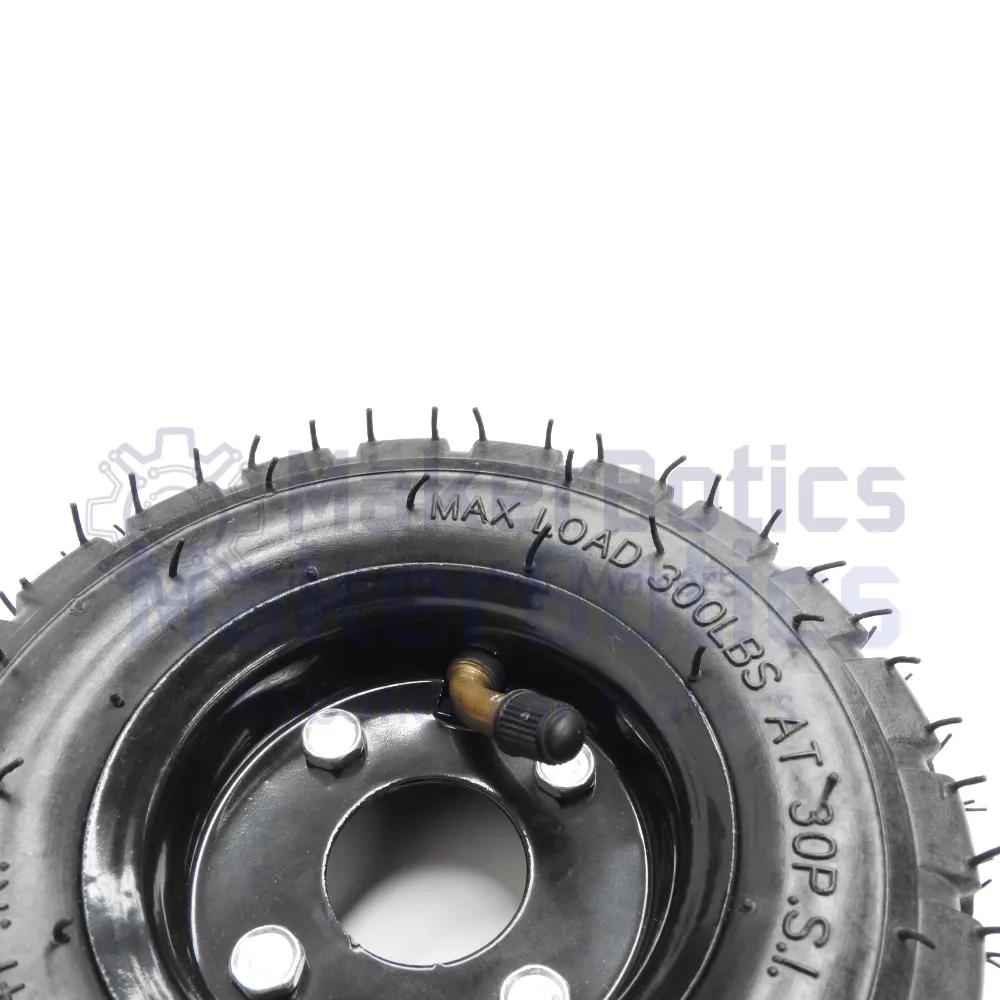

• Max Tyre Pressure: 30PSI
• Maximum recommended weight: 60kg

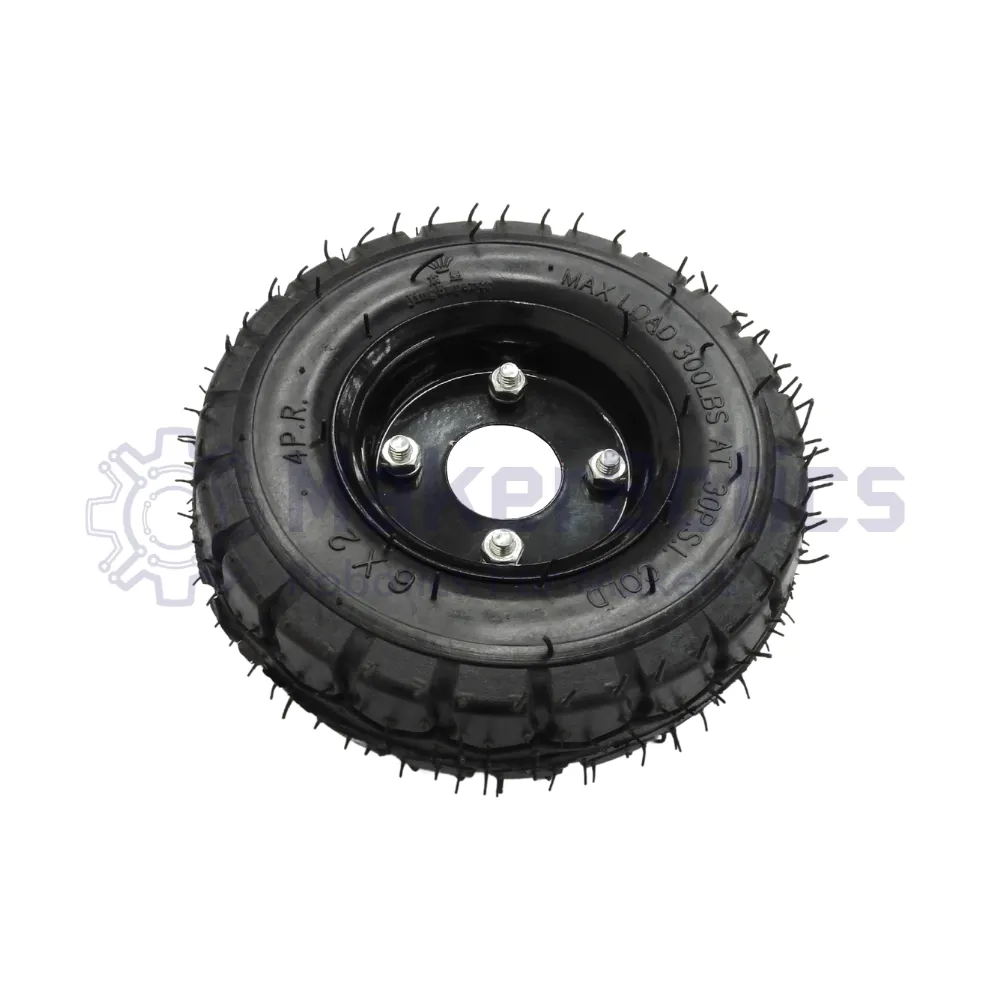

• 4 Hole Bolt Pattern with a 55mm diameter bolt hole circle
• 30mm rim hole centre.
• When Inflated: 6.2 inch (160mm) diameter  and 50mm width
• Weight 500g.
• Not for road use
• Max RPM: 500

Please note:

• Do not run these wheels deflated, the Tube can get  damaged

Tips and tricks

For robotics, drive these wheels with our 36mm or 42mm Planetary Geared Motors.

Uses:

• Carts
• Robotics
