80mm Mecanum Wheels with Coupling (Left/Right Pair)

Our popular 80mm Mecanum wheels are used in larger robotic vehicles where their larger diameter and precise motion are required. The wheels ship with a hub receptacle which is compatible with both the TT motors and a Lego-compatible crossbar. The rollers are made from a high-quality silicone rubber which allows for high grip when the robot is in motion.

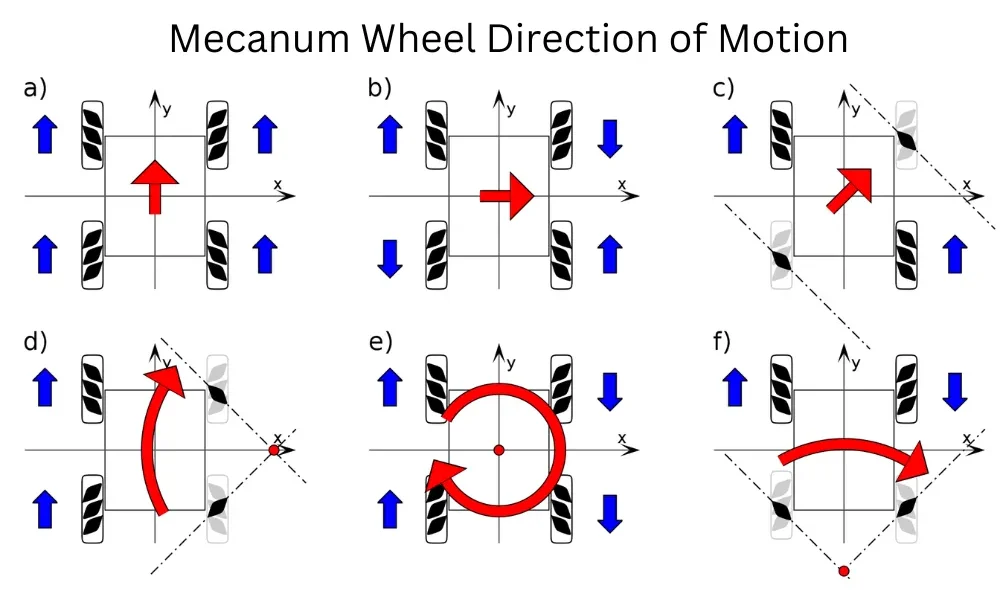

A Mecanum wheel is like a regular wheel, but it has rollers attached diagonally around it at a 45-degree angle. This design allows the wheel to push or pull in a diagonal direction when it moves forward or backward. By turning the wheels in a specific pattern, we harness the diagonal forces, enabling the robot to move in any direction.

The wheels are embossed with the wheel direction for your convenience!

Specifications:

• Wheel Diameter: 80mm/3.15”
• Wheel Thickness: 37.5mm/1.48”
• Hub: Suits TT Motor or Lego Crossbar
• Number of rollers: 9
• Roller Angle: 45°
• Colour: Yellow and Black
• Material: Plastic + Silicone Rubber

Tips and Tricks:

• These wheels are compatible with our TT-Motors. No other hardware is required, Just click the motors into the wheel adaptor as shown below:

Please note:

• 1x Left and 1x Right wheels are included in this kit
• The TT motor is not included
