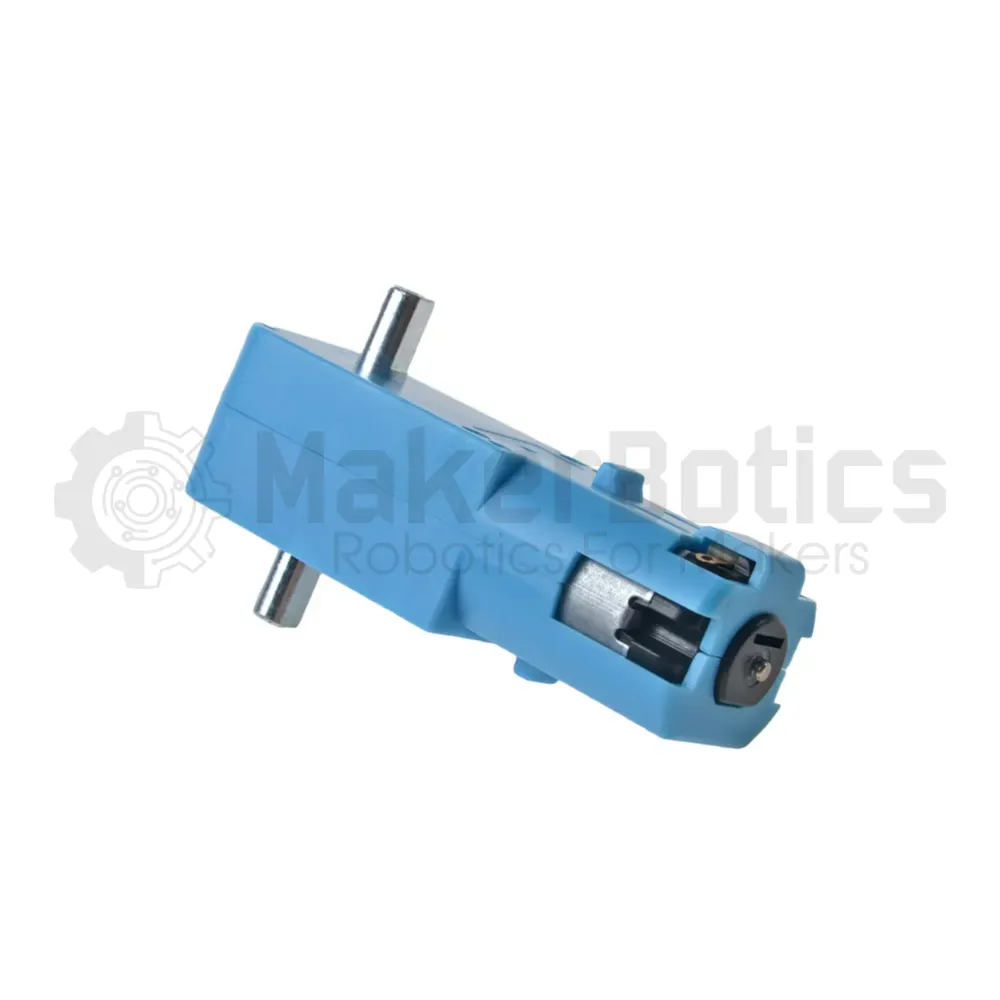

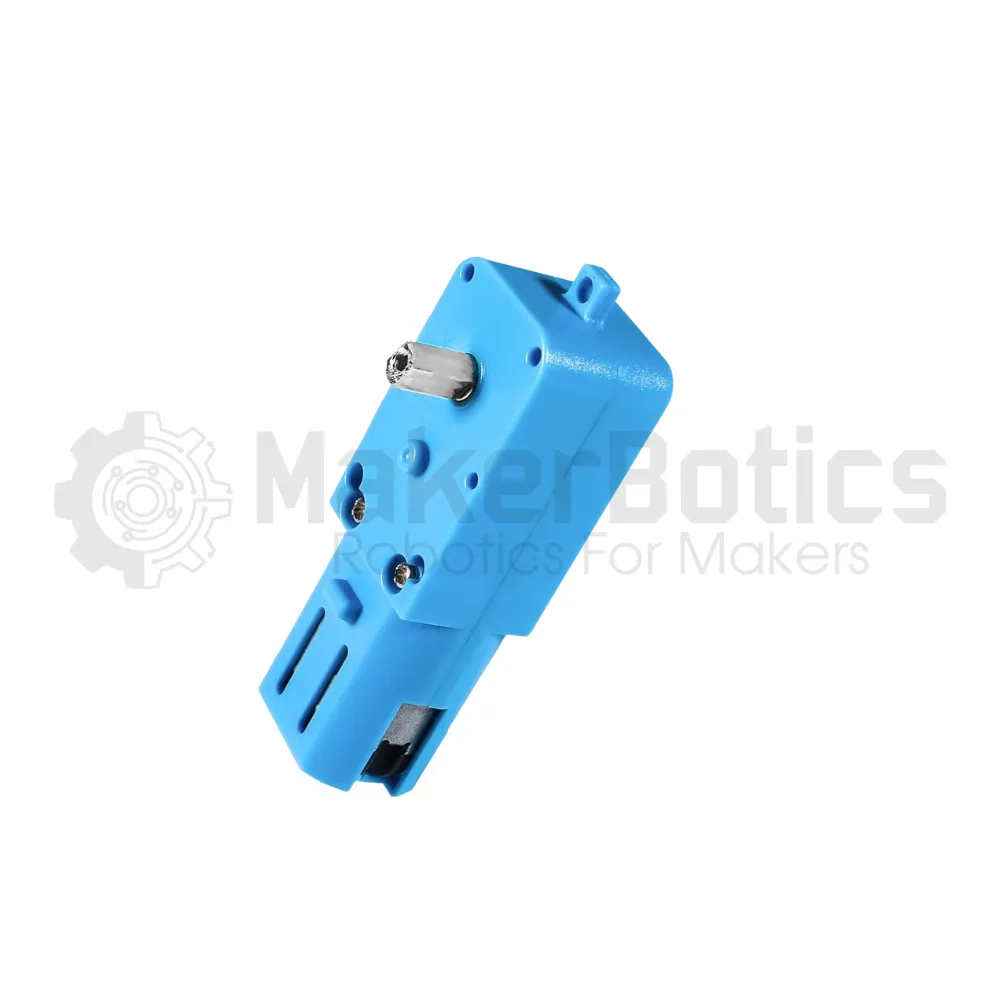

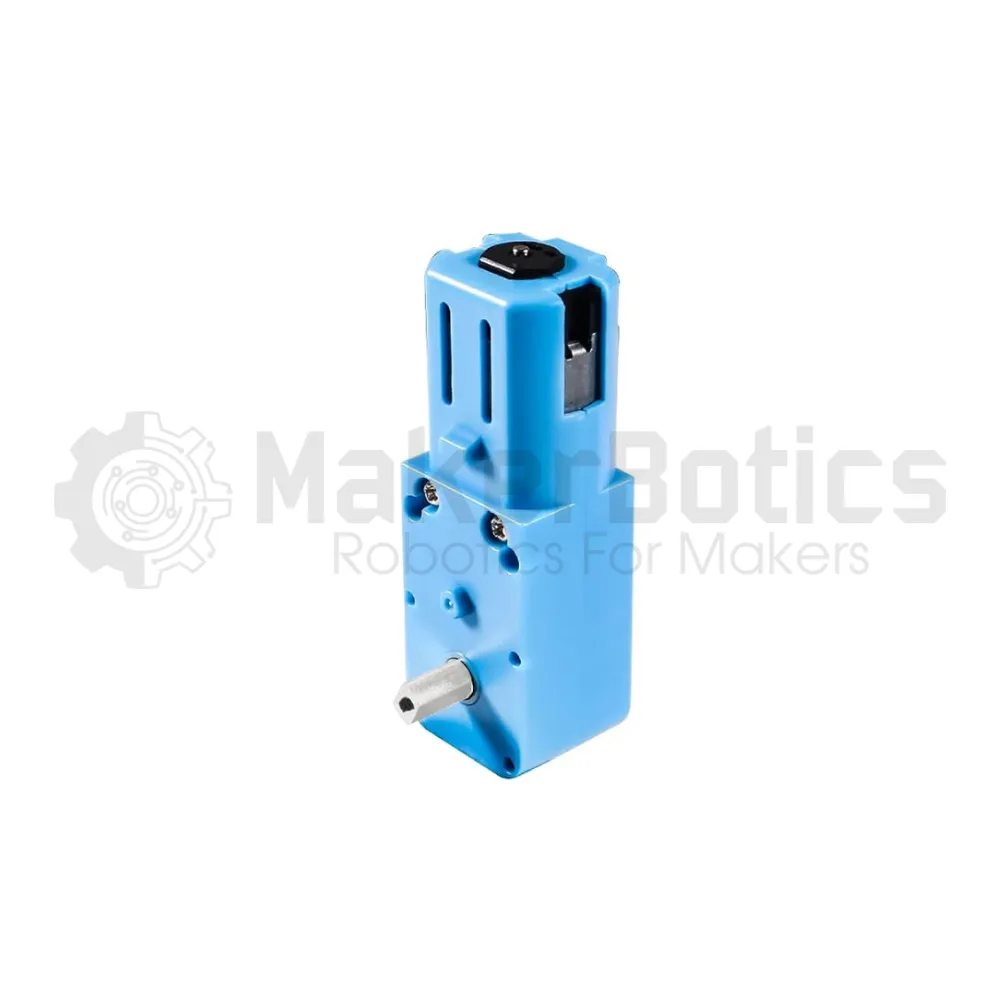

Dual Shaft Geared TT Motor: Metal Gear 100RPM

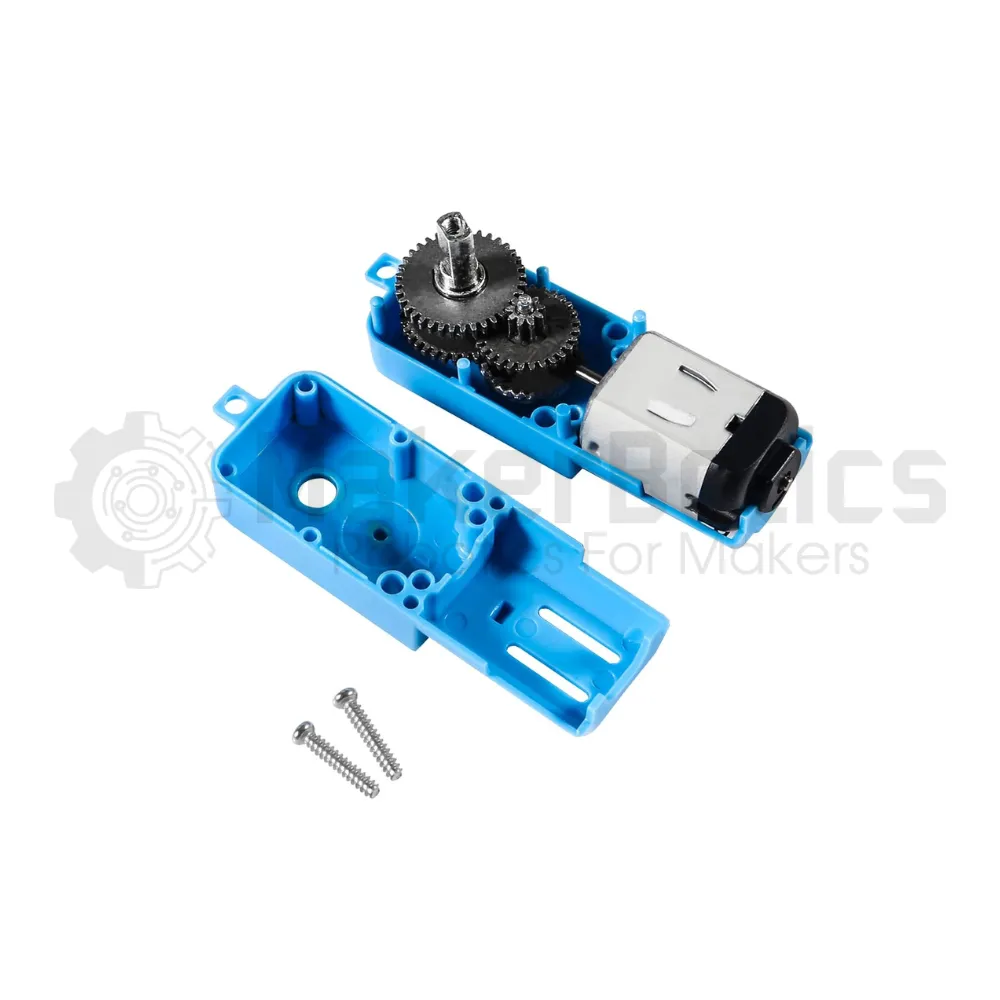

These Metal Geared TT Motors offer higher torque and increased durability for use in robotics and DIY applications. Known for its reliability and performance, this motor delivers consistent torque and speed, making it an excellent choice for hobbyists and professionals alike.

Their small size makes them perfect for use in compact devices and small robots, while robust performance ensures reliable operation.

These TT motors are pre-geared to a ratio of 1:90, giving an output speed of approximately 120RPM when operating at 6V. For added versatility, a double shaft for mounting shaft encoders for positioning accuracy comes as standard.

This motor is perfectly paired with our L293D dual channel Motor Driver Module.

Add Mobility to the TT motor with our 65mm TT motor wheel.

Suitable Hardware:

• L293D Motor Driver
• 65mm robot wheels

Motor Specifications:

• Rated Voltage: 3~6V
• Continuous No-Load Current: 100mA +/- 10%
• Operating Speed at 3V: 60+/- 10% RPM
• Operating Speed 6V: 120+/- 10% RPM
• Torque: 1.125Kgcm
• Stall Torque (6V): 1.5Kg.cm
• Gear Ratio: 1:90
• Body Dimensions: 70 x 22 x 18mm
• Weight: 40g

Engineering Drawings

Note: All dimensions are in mm

Tips and Tricks:

• Pair these motors with our L293D motor driver.
