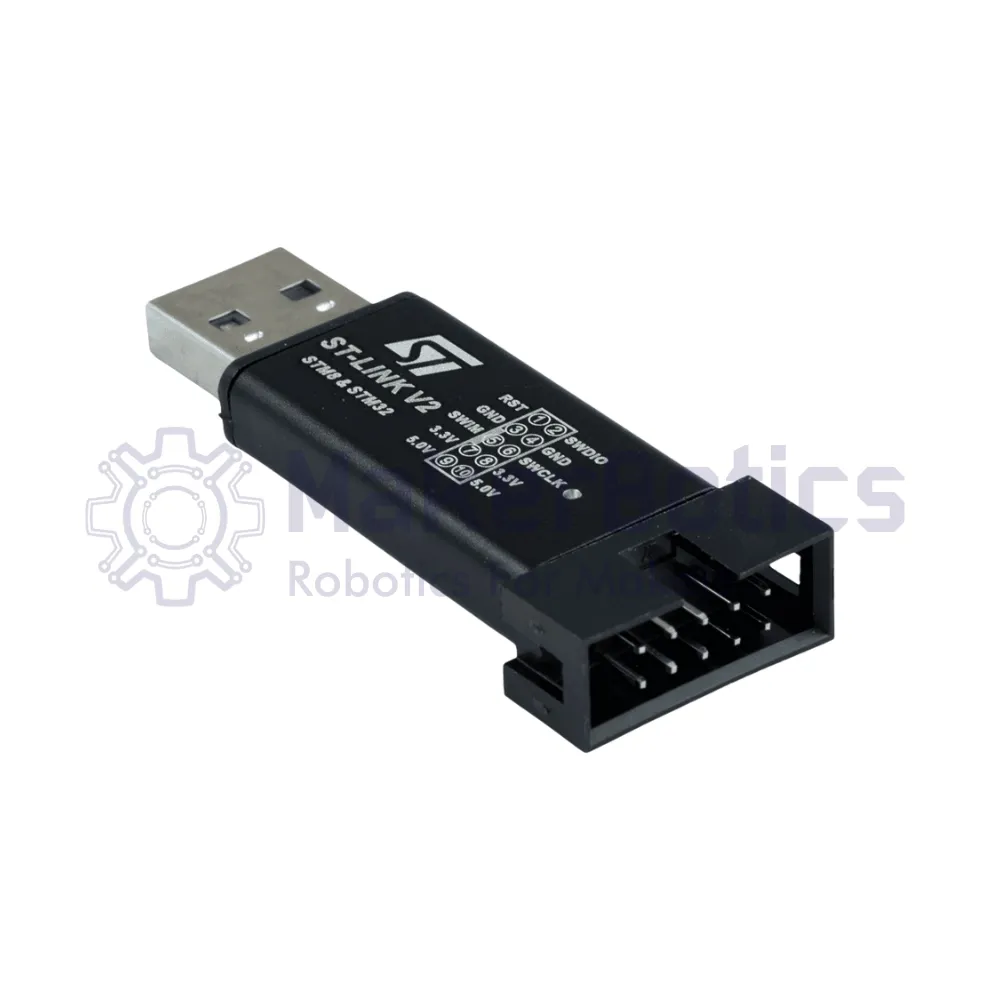

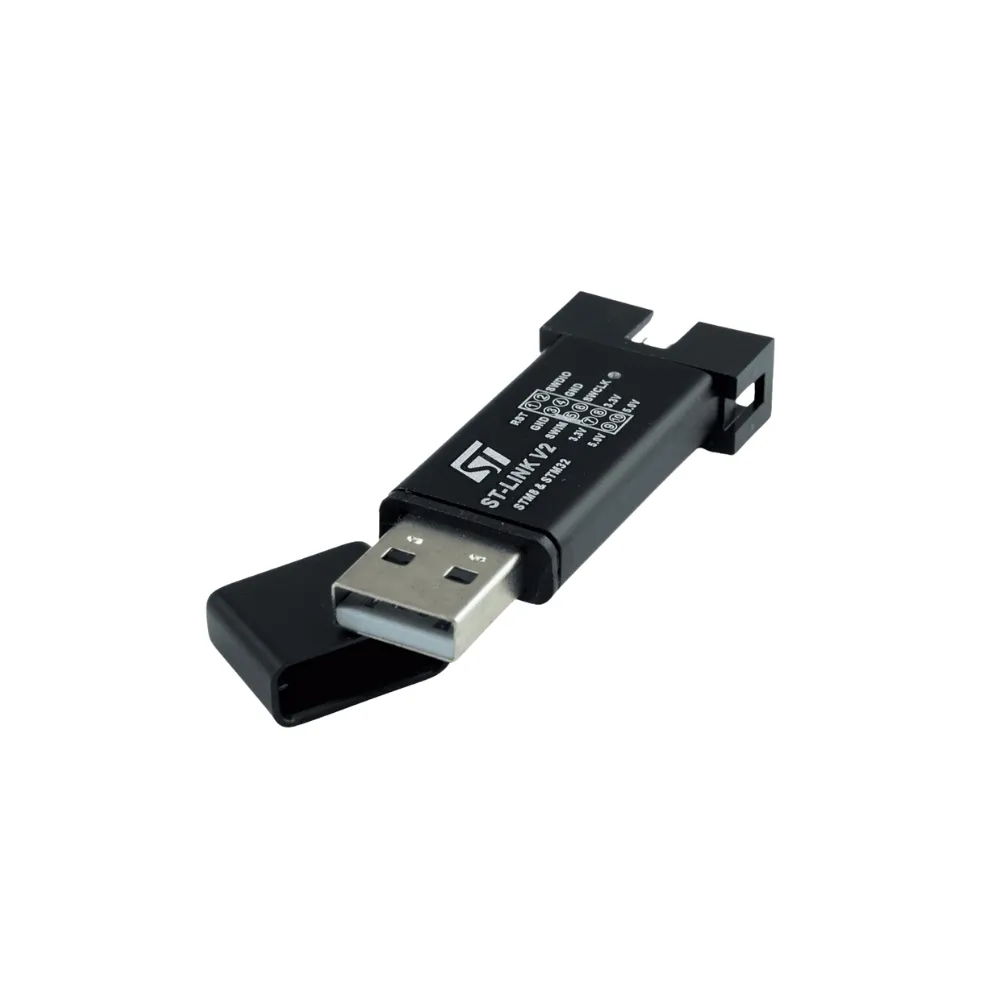

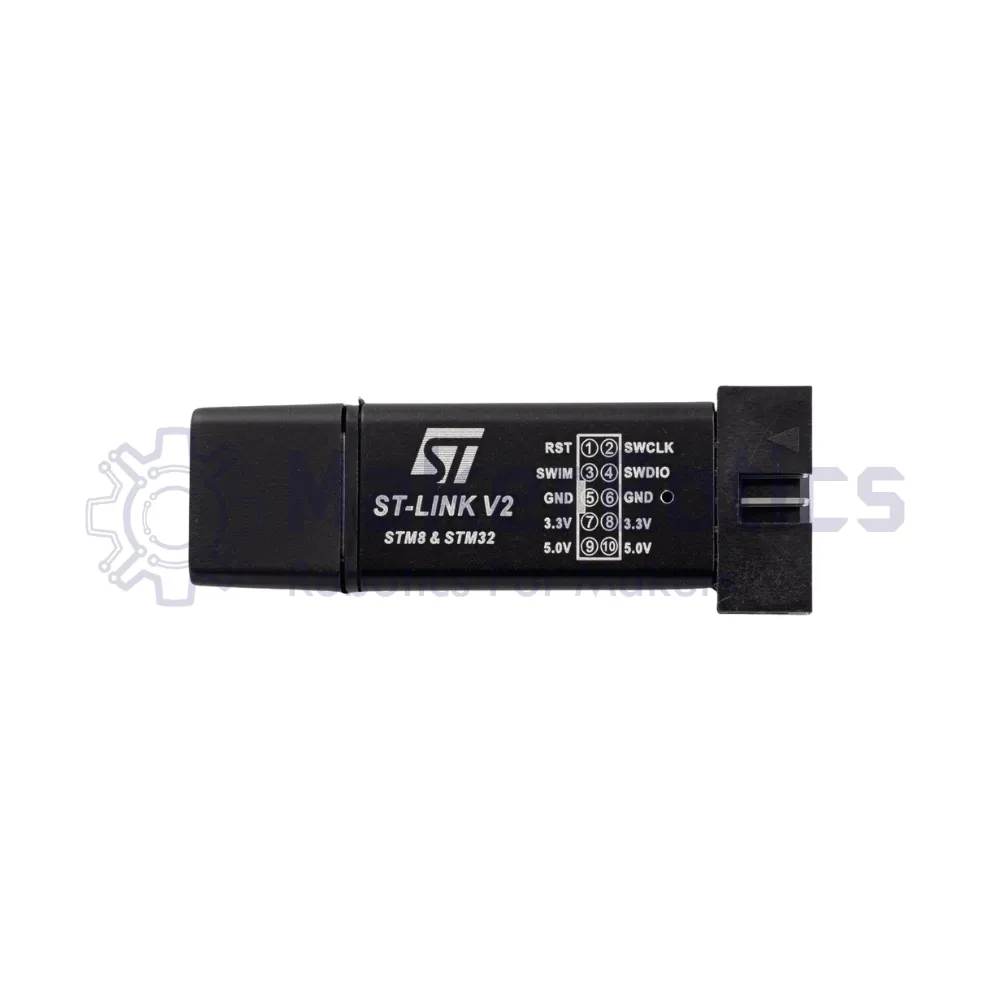

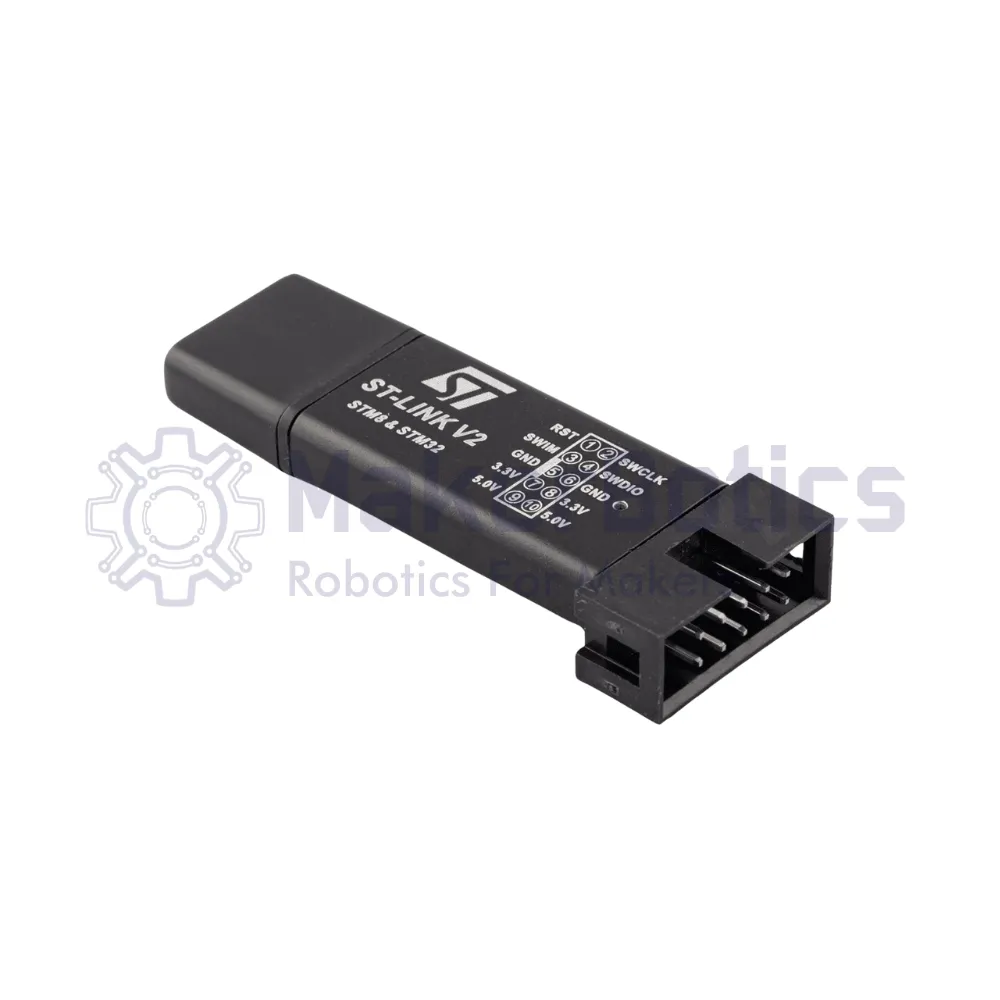

ST-LINK V2 Debugger/Programmer – STM32 – Compatible

This handy tool is based on the STMicroelectronics ST-LINK debugger/programmer and is used to program and debug the STM32 Blue Pill and Black Pill microcontrollers or any STM32-based microcontroller. The ST-Link V2 adopts a USB dongle form factor and comes bundled with female-to-female Dupont cables, streamlining wiring and configuration. Simply reference the provided wiring diagram below in the description, then plug the programmer directly into your computer for an effortless setup.

This ST-LINK V2 module also supports compatibility with STM8 microcontrollers.

Key Features:

• Programming and debugging interface for STM8 and STM32 microcontrollers.
• USB interface for quick and easy connection to your development environment.
• Compact and lightweight design for convenient portability.
• Compatible with a wide range of STM32 development boards.

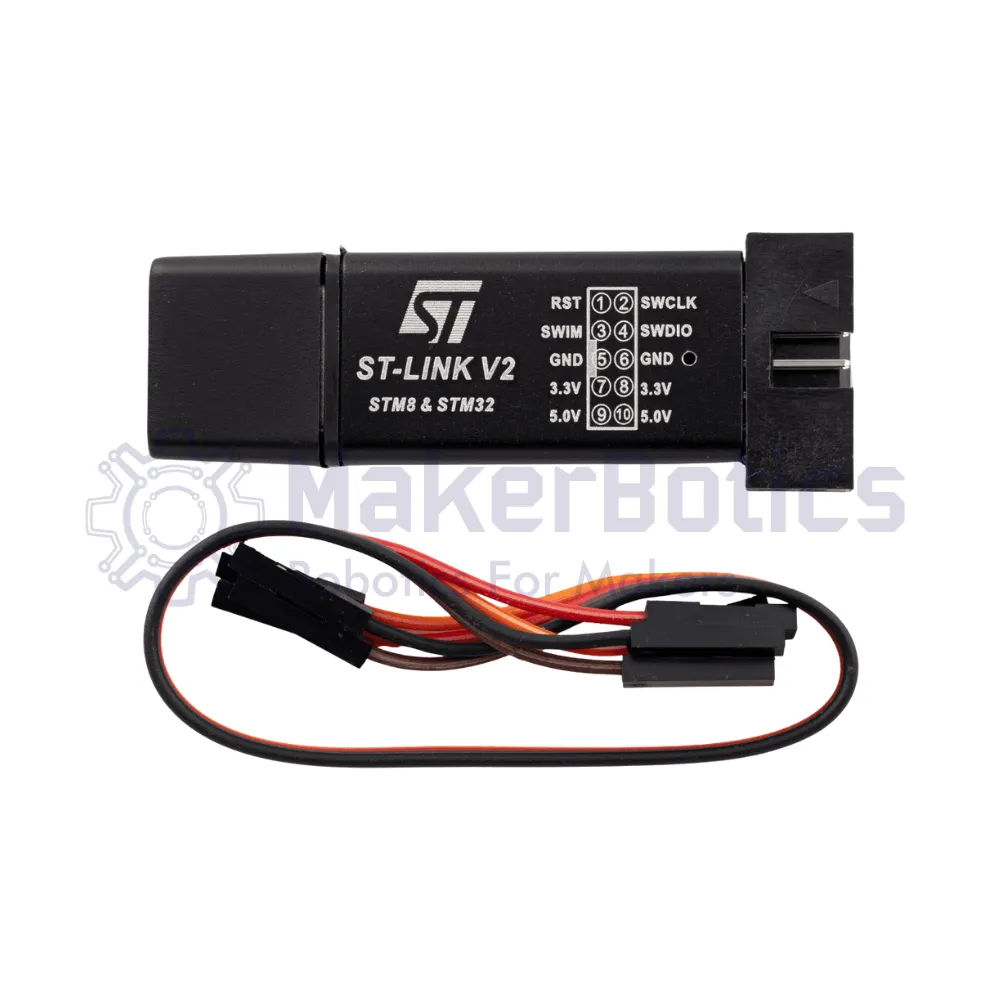

Included:

• 1x ST-Link Programmer/Debugger.
• 1x 4 pin Female to Female Dupont leads.

Wiring example for STM32 Black Pill/Blue Pill

Note that the wiring example demonstrates the STM32 Blue Pill. You can apply the same wiring for the STM32 Black Pill.

Note that you need to use the USB drivers linked in the software section below to interface the STLINK V2 with the computer.

Supporting Software:

• USB drivers
• St-Link Software

System Requirements

• The drivers for this programmer/debugger require a computer to run on either Windows 7, 8, or 10.

Please Note:

• This ST-LINK V2 Debugger/Programmer serves as a generic variant.
