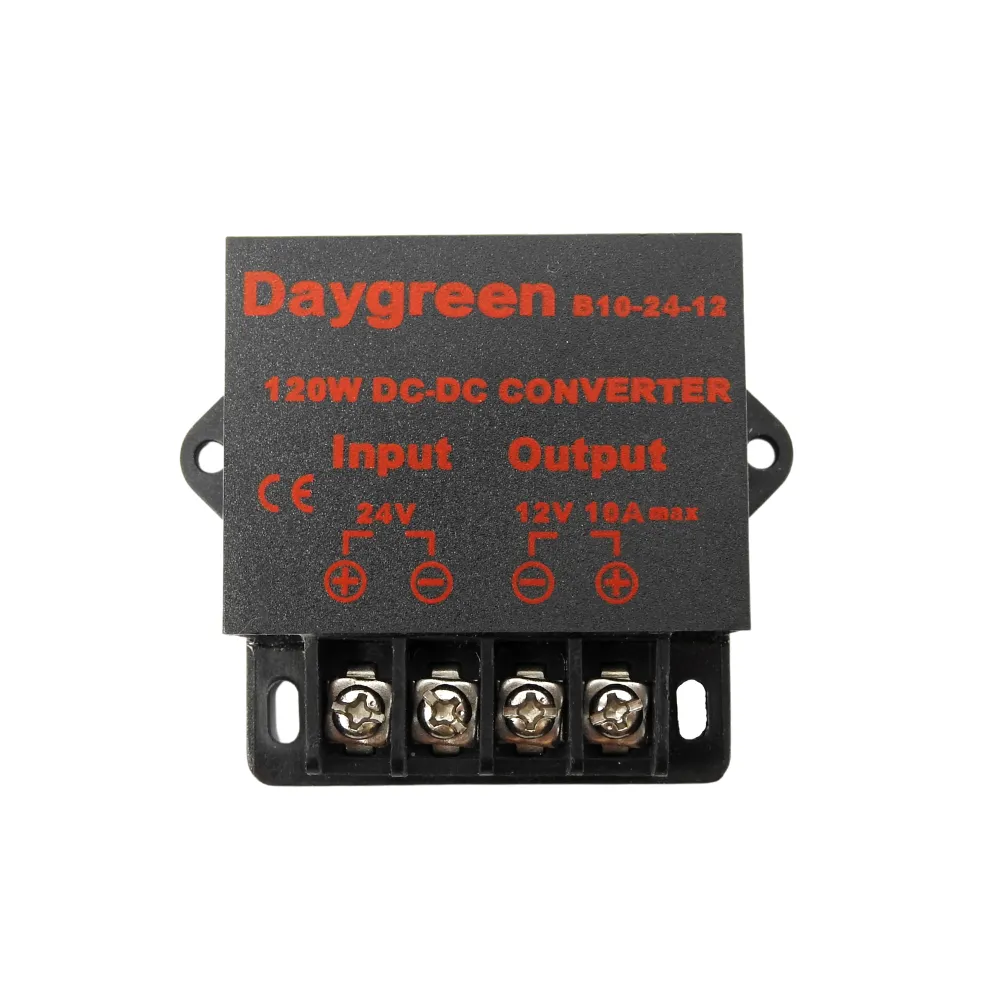

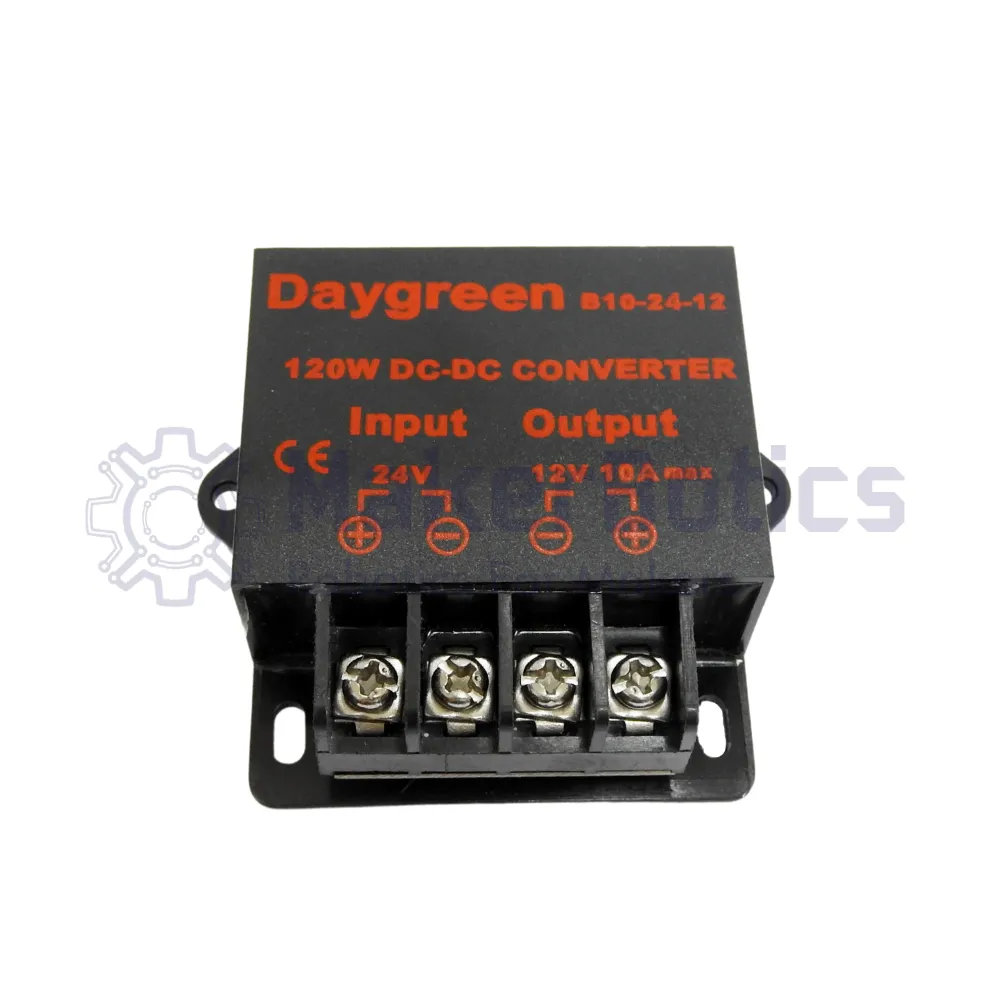

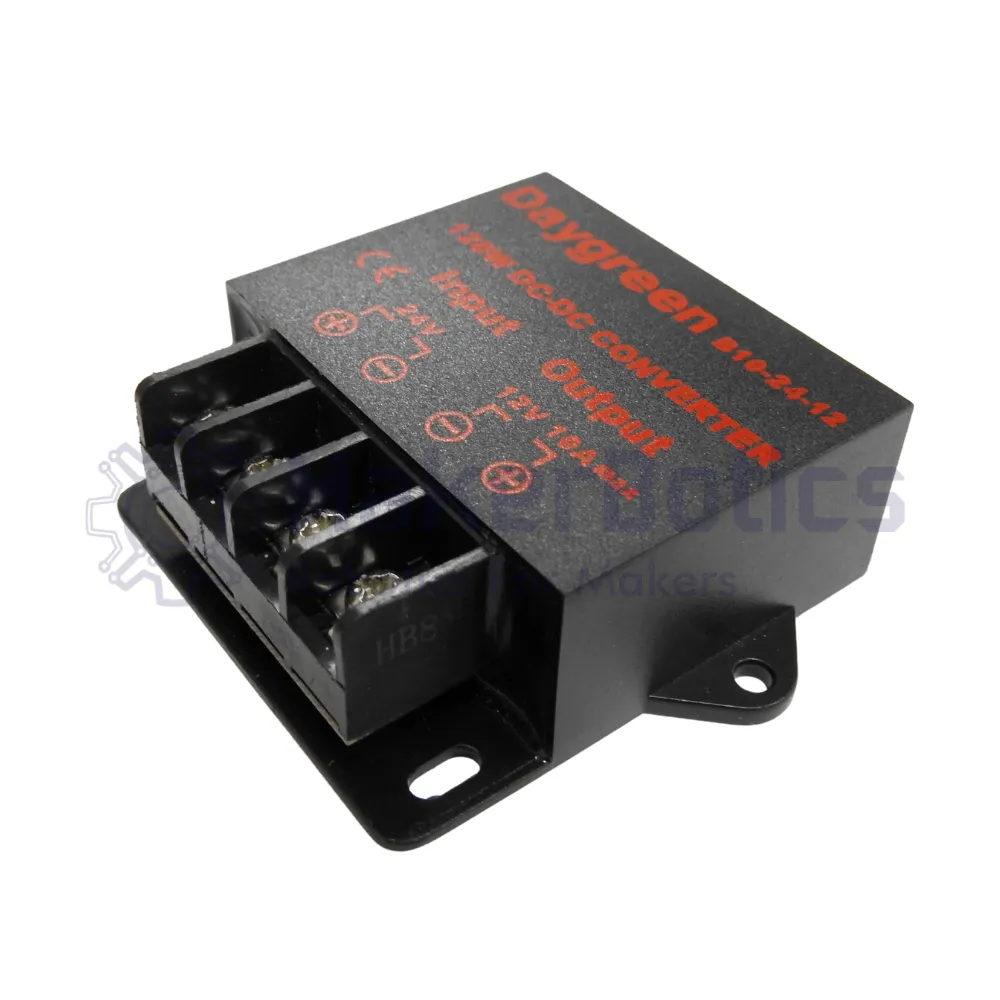

24-12VDC 10A Step Down DC-DC Converter (120W)

This 24V-12V DC-DC converter is excellent for devices requiring a high current IP-rated DC-DC converter providing 12V 10A DC power. Use this DC-DC module in robotics projects or general applications requiring a fixed 12V voltage output. An IP68 rating makes it a versatile module for hobbyist, automotive and industrial applications. The handy integrated screw terminal block makes for simple, reliable and secure connections.  This converter boasts a 95% efficiency, ensuring that little heat is produced during operation and the 10A output means plenty of power for an array of peripheral components requiring 12V power.

The mounting profile of the DC-DC module allows for easy mounting to aluminium extrusion.

Specifications:

• Brand: Daygreen
• Screw Terminal connectors
• Stable 12V output voltage
• Stable 10A current output
• 120W maximum output power
• High efficiency up to 95%
• Waterproof housing
• Cooling through free air circulation

Features:

• IP68 rating; Waterproof,  Anti-vibration and Dustproof
• Wide input voltage from 18V to 35V. (24V typical)
• Stable output voltage 12V
• High efficiency up to 95%
• Over current protection
• Over-voltage protection
• Over temperature protection
• Surface mountable
• Eternal and internal use.

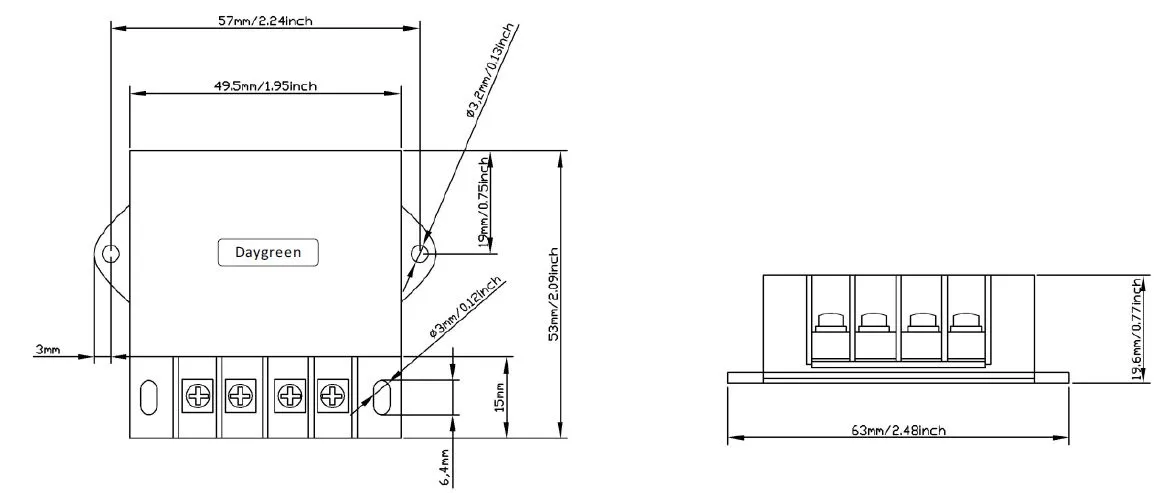

Engineering Drawings:

Load vs Temperature Graph

The graph below shows the effects of temperature on the power output of this DC-DC  Converter. To maintain 100% output, it is recommended to keep the maximum ambient temperature at 50°C maximum. Active cooling is recommended if the DC-DC converter’s operating temperature is more than 50°C.

Notes:

• Please observe the polarity of the input voltage and connected device
• Use this DC-DC in an area with adequate airflow when using it close to the maximum rated output
• This DC-DC converter outputs a fixed 12V and is not variable
