AMS1117 5V Step Down DC-DC Converter

The AMS1117 5V voltage regulator is a compact and reliable DC-DC module that provides a stable 5V output voltage from a higher input voltage. It is commonly used to power a wide range of electronic circuits and applications that require a precise and stable source of 5V power. The common use of this step-down module is as a breadboard power supply.

With its low dropout voltage, the AMS1117 can regulate the output voltage even when the input voltage is only slightly higher than the desired output voltage. This makes it a versatile and reliable choice for a variety of different applications.

Use this power supply with a breadboard.

For switching 24-12VDC at a high current, please see our 24-12VDC 10A Step Down DC-DC Converter (120W).

Specifications:

• Input voltage range of 6V-12VDC
• Output Voltage: 5VDC ±1.5%
• Output Current: 800mA
• Footprint: 25mm (L) x 11mm (W)

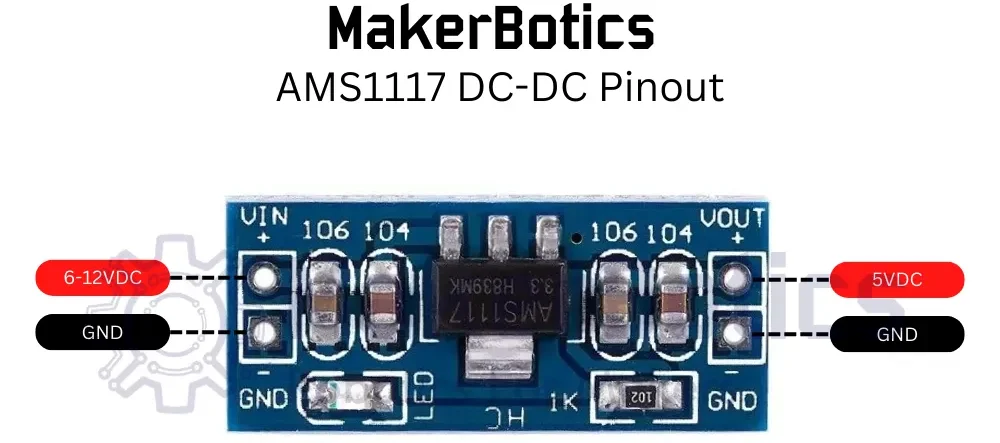

Pinout diagram:

Included:

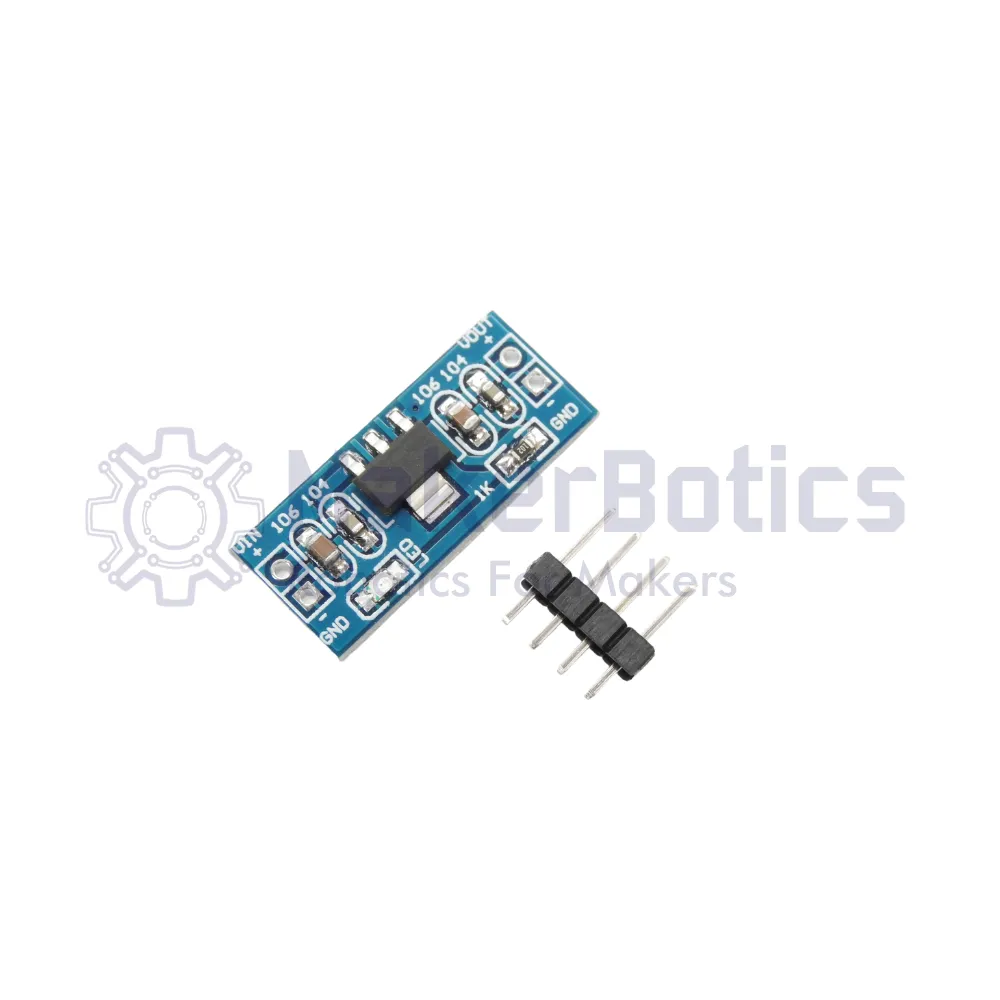

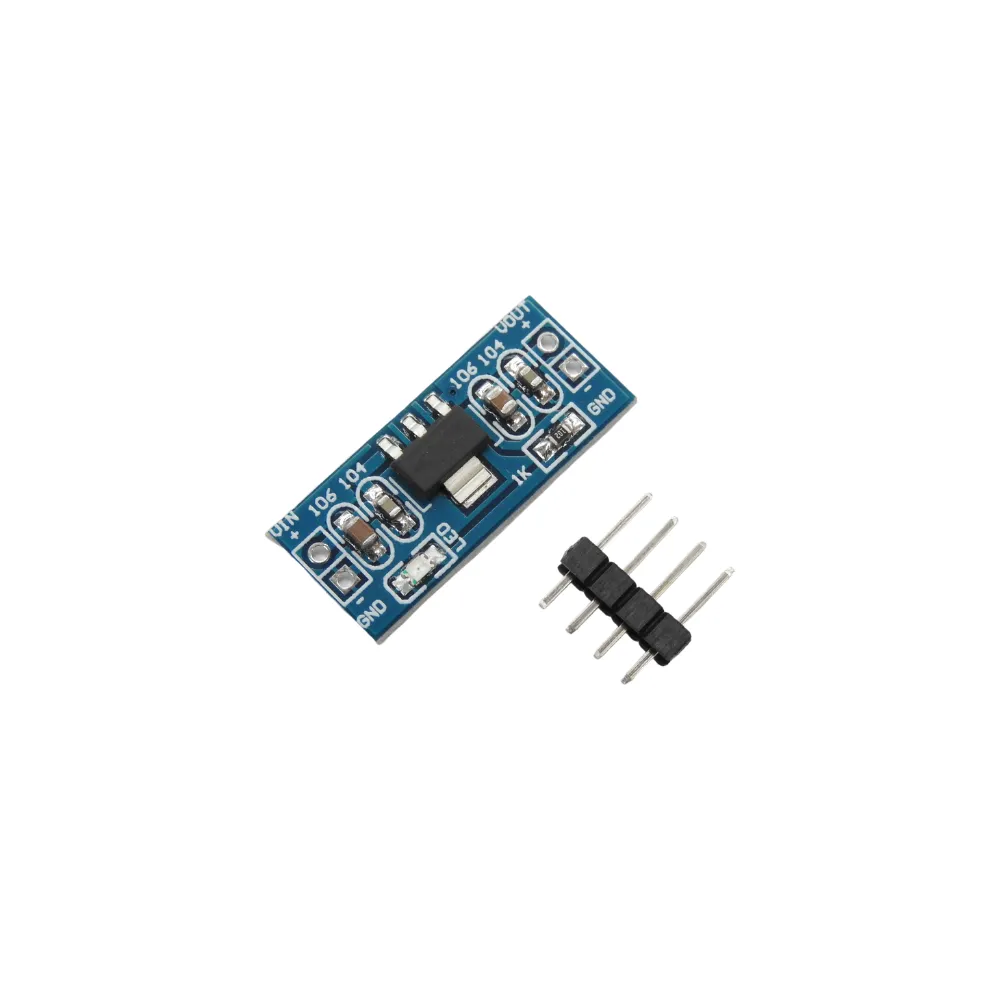

• 1x AMS1117 5V voltage regulator (headers unsoldered)
• 4x 2.54mm header pins for input and output power

Notes:

• Please observe the polarity of the input voltage and connected device
• Use this DC-DC in an area with adequate airflow when using it close to the maximum rated output
• This DC-DC converter outputs a fixed 5V and is not variable
