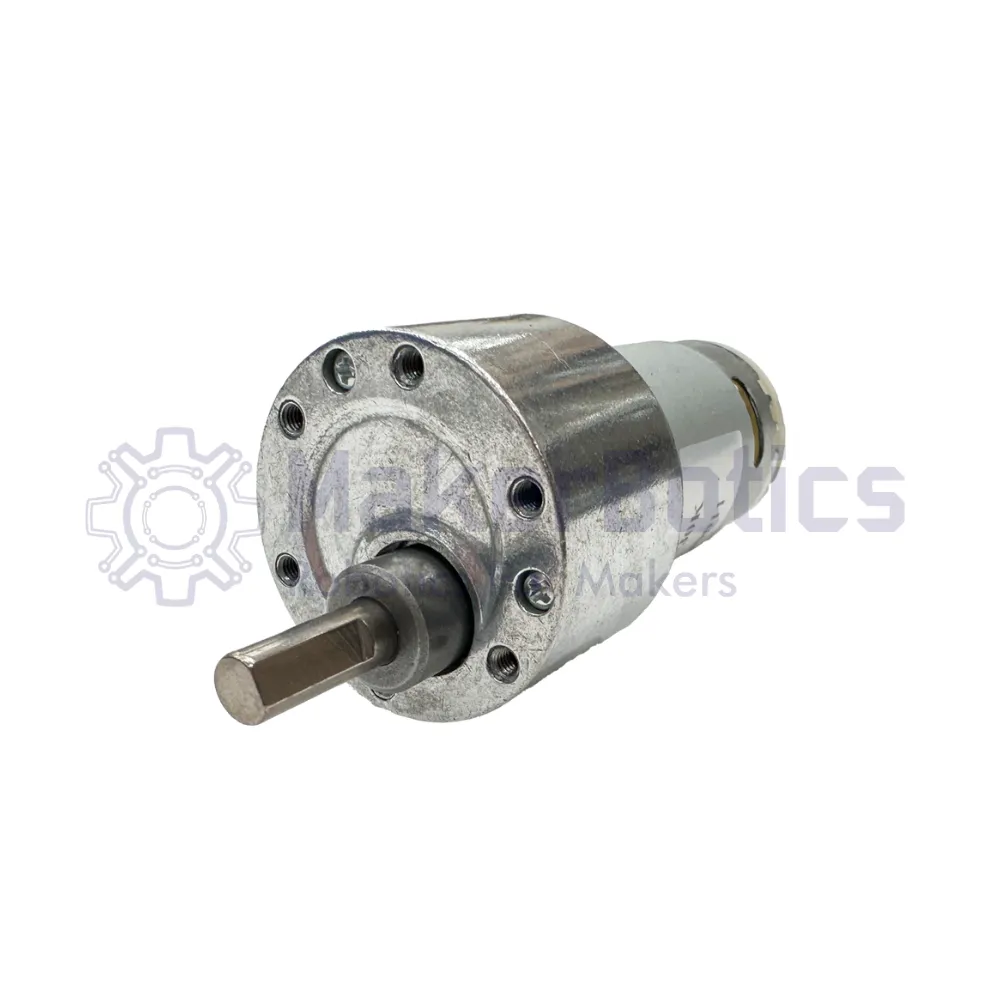

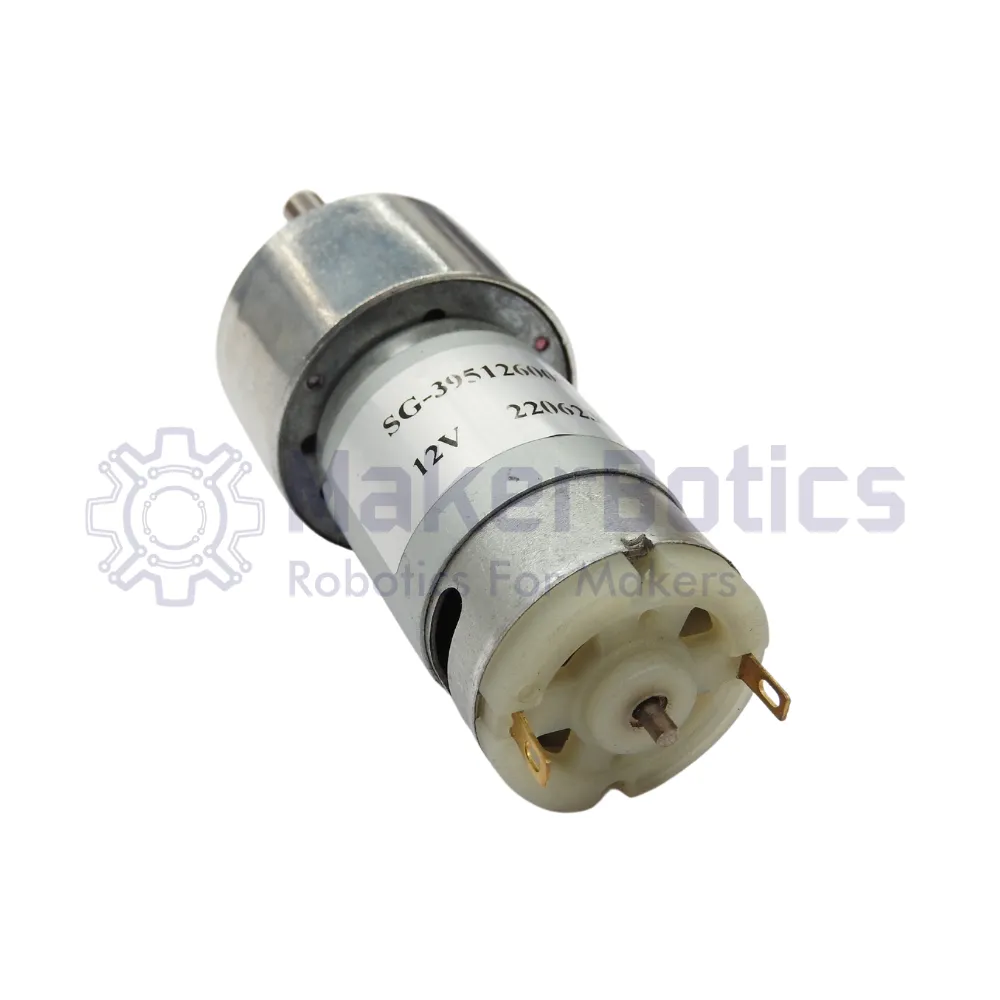

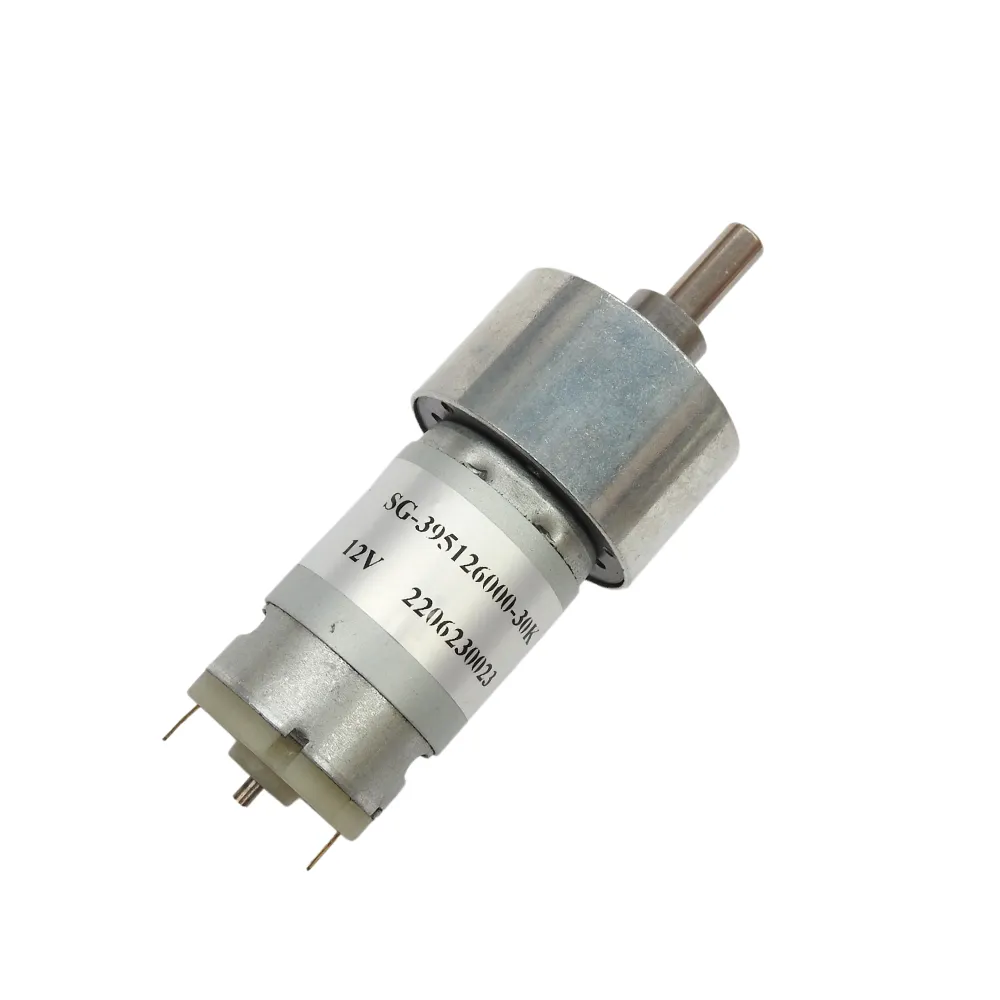

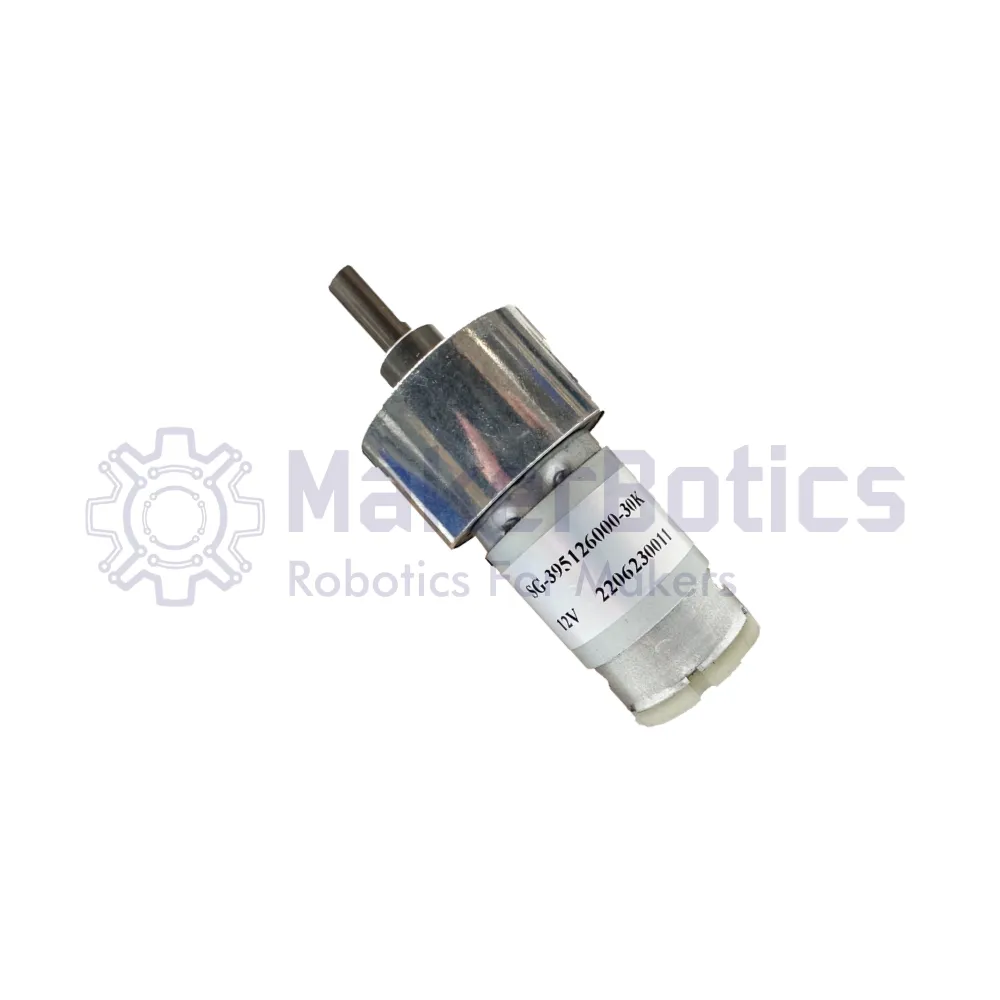

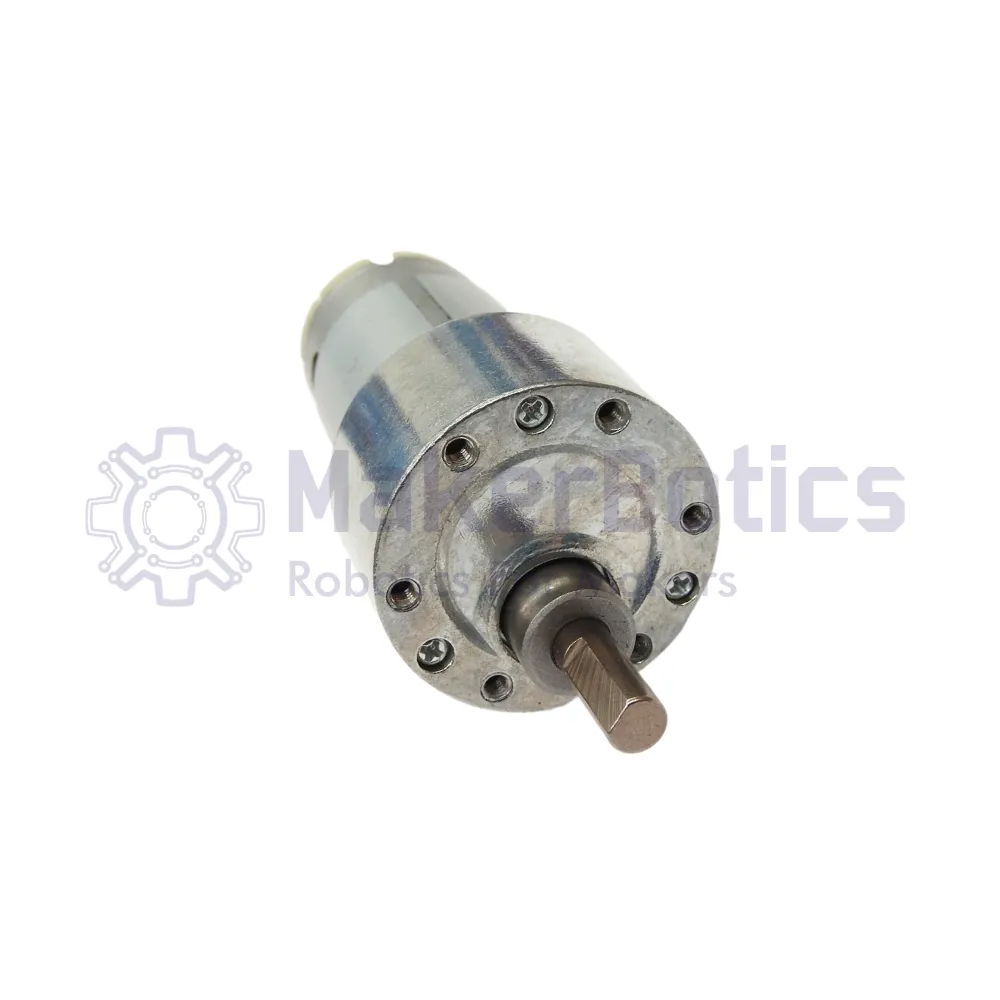

12V 37mm Spur Geared DC Motor – 220RPM

The 37mm spur geared motors are highly sought after in small robot builds, actuators, and various projects that call for a small form factor geared motor. One of the key advantages of these motors is their compact gearbox, measuring only 37mm. This compact size makes them remarkably easy to integrate into projects where space is at a premium.

Despite their small stature, these motors deliver efficient performance, making them an optimal choice for applications that demand a small footprint without compromising on power and reliability. Whether you’re designing a compact robot or working on a space-constrained project, these motors provide an ideal solution.

The motor only requires two-wire control and is excellent for applications where position feedback is not necessary and as such this motor can easily be controlled by the Roboclaw series of drivers or the 24V 7A Dual-Channel DC Motor Driver.

These motors are equipped with a 6mm shaft, which makes them compatible with our 12mm Hex hubs. This pairing allows for easy and secure attachment of wheels, gears, or other components that require a reliable connection to the motor shaft.

Motor Specifications:

• Rated Voltage: 12VDC
• Motor Brush Type: Graphite
• Output Shaft size: 6mm
• Mounting Hardware: M3

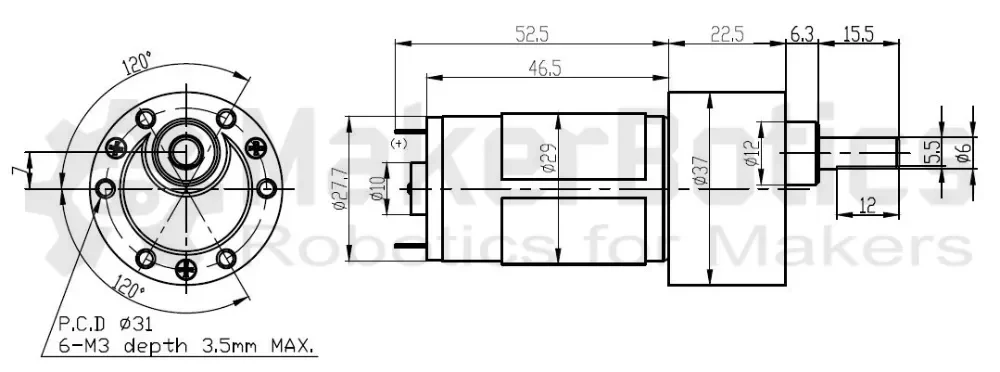

Engineering Drawings

Note: All Dimensions are in mm

Tips and Tricks:

• Pair these motors with our Roboclaw series of drivers or the 24V 7A Dual-Channel DC Motor Driver.
