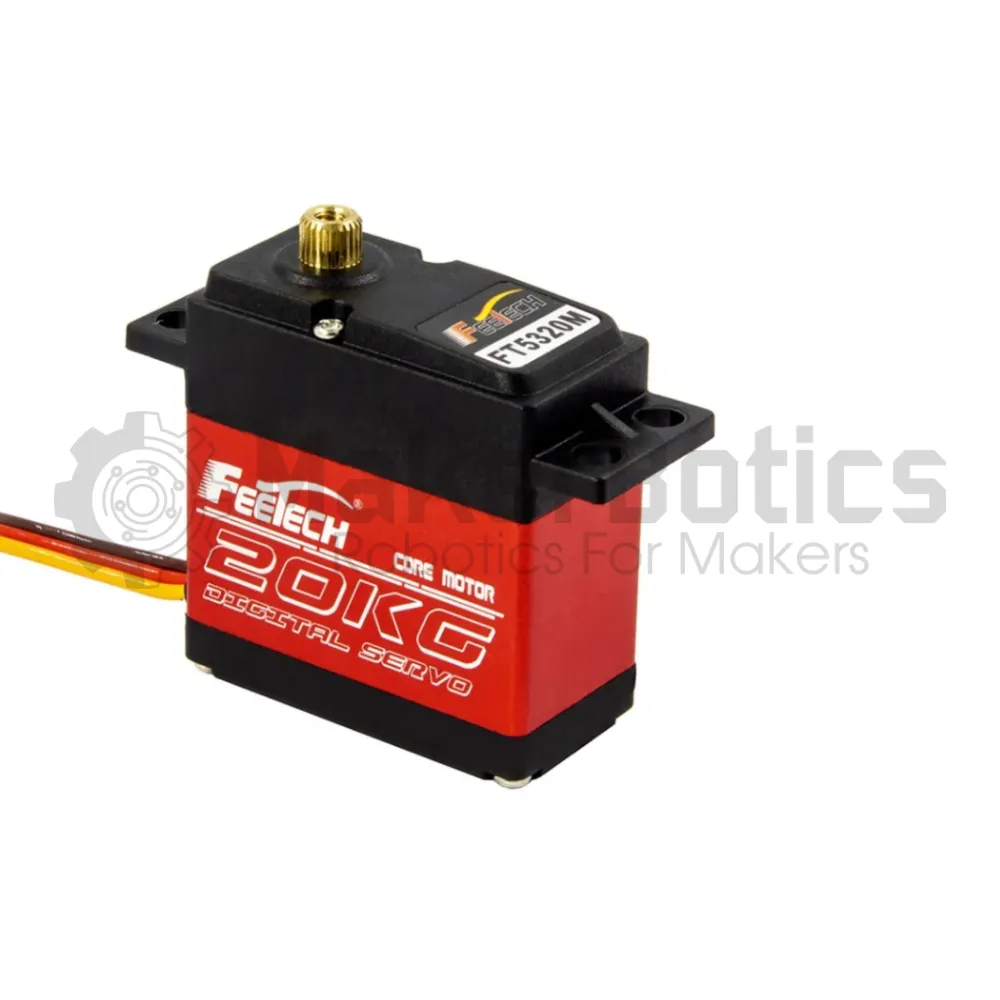

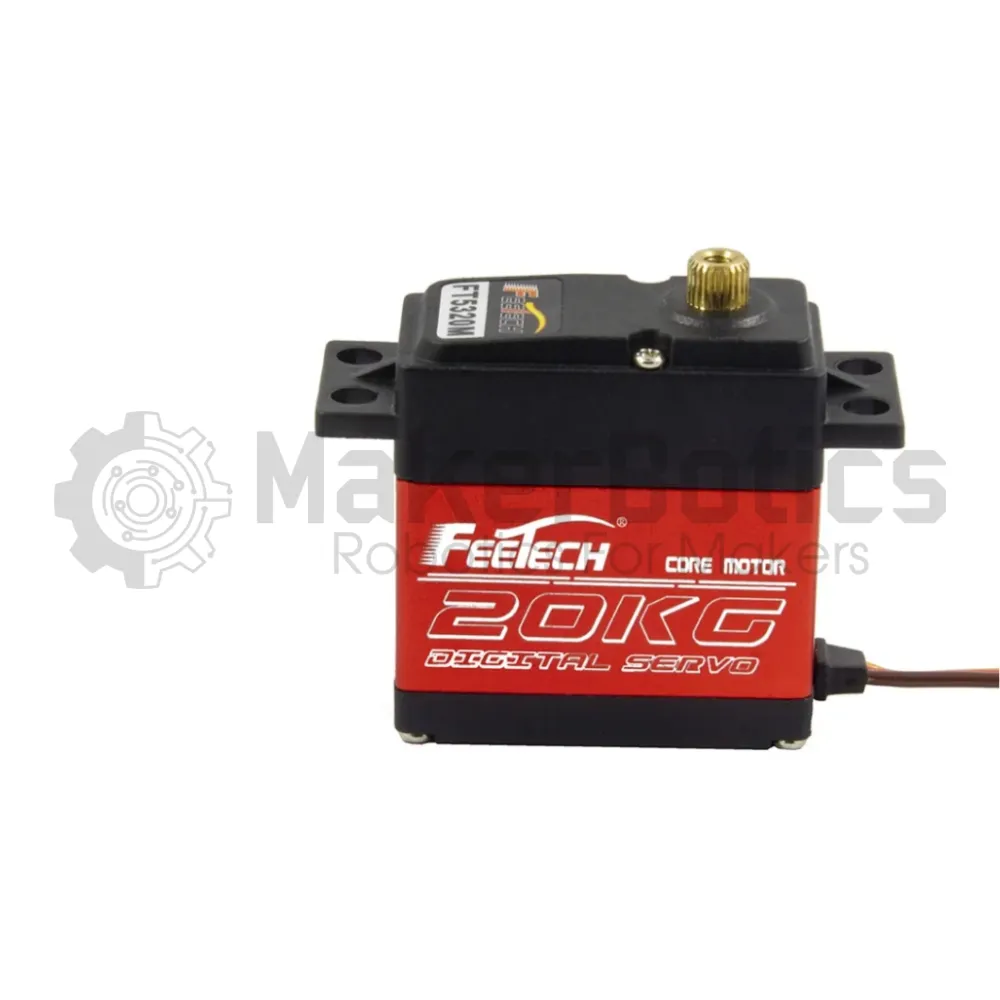

Robot Digital Servo 20kg FT5320M
$34.13 Inc. GST

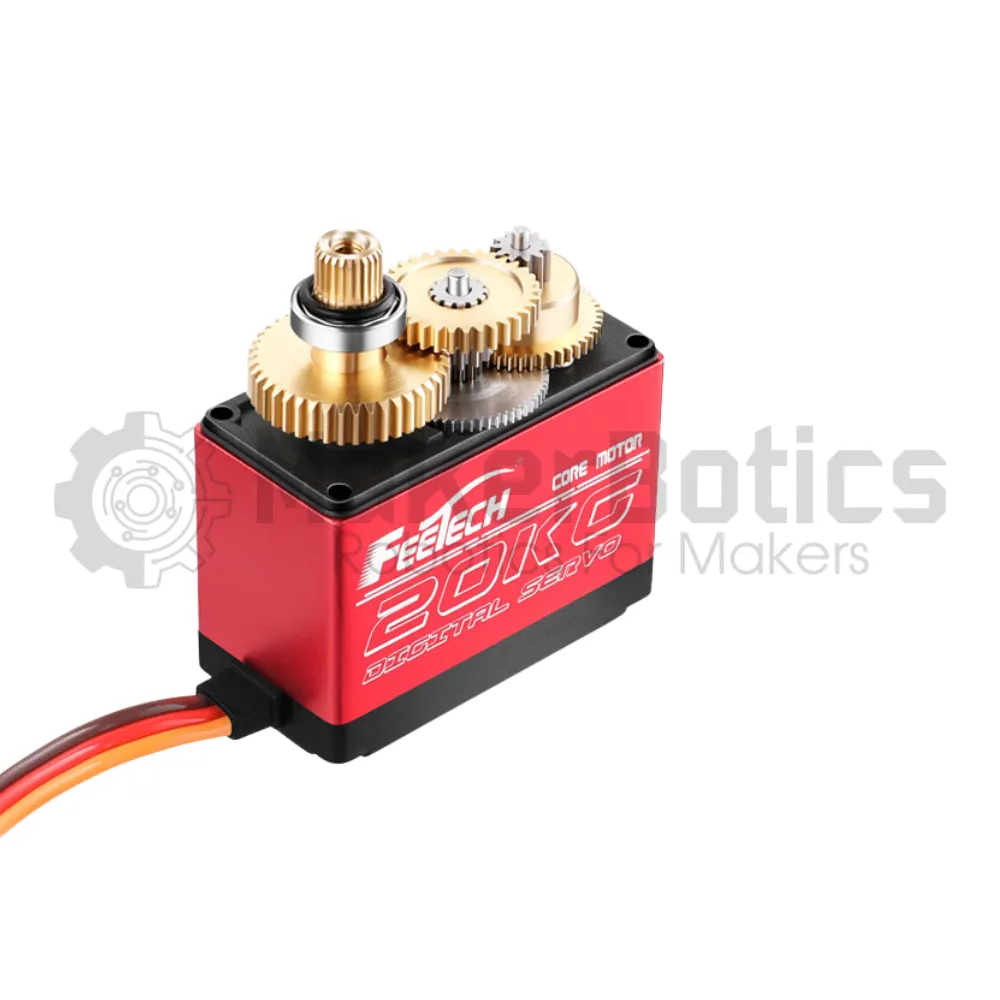

The FT5320M Digital Servo is a high-performance servo with an impressive torque output of 20kg/cm. Unlike analog servos, digital servos are more stable, feature quicker response and offer high resolution. The high-quality metal gear construction ensures that the maximum torque is transmitted without the worry of stripping gears in the most demanding applications.
Out of stock
The FT5320M Digital Servo is a high-performance servo with an impressive torque output of 20kg/cm. Unlike analog servos, digital servos are more stable, feature quicker response and offer high resolution. The high-quality metal gear construction ensures that the maximum torque is transmitted without the worry of stripping gears in the most demanding applications.
This servo is controlled via PWM, a standard communication protocol for servos and is therefore very easy to interface with the popular Teensy, Arduino, ESP8266 and ESP32 microcontrollers.
Specifications:
- Operating angle: 180 degrees
- Operating Temperature Range: -20℃～60℃
- Dimensions：55mm x 20mm x 43mm
- Weight: 67土1g
- Gear type: Metal Gear
- Horn gear spline: 25T
- Case Material: Plastic and Aluminium
- Operating Voltage Range: 6V-7.4V
- No load speed: 0.151sec/60°@7.4V
- Peak stall torque: 20kg.cm@7.4V
- Stall current: 3A@7.4V
- Command signal type: Pulse width modulation

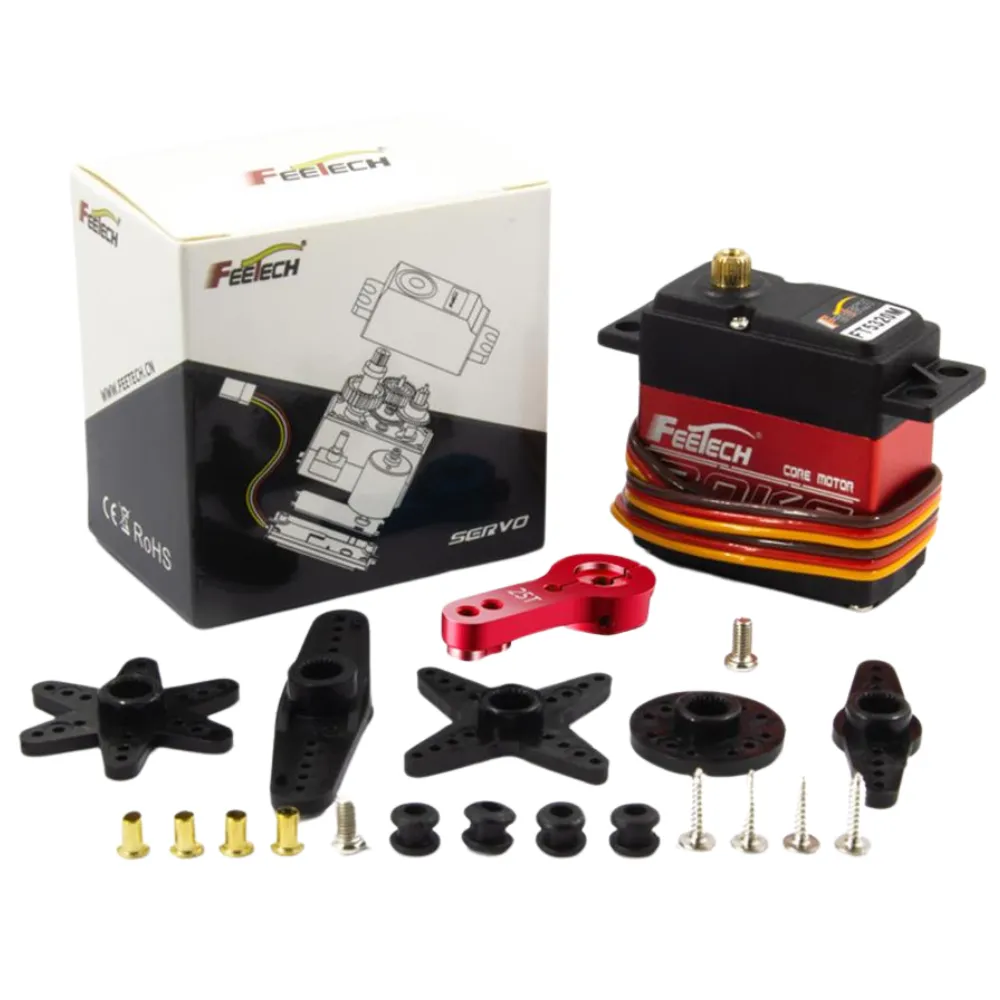

Included
- 1x FT5320M Metal Gear Digital Servo
- 1x Aluminium Servo Arm
- 5x Plastic Servo Horns and Ams
- Servo arm/Horn fasteners

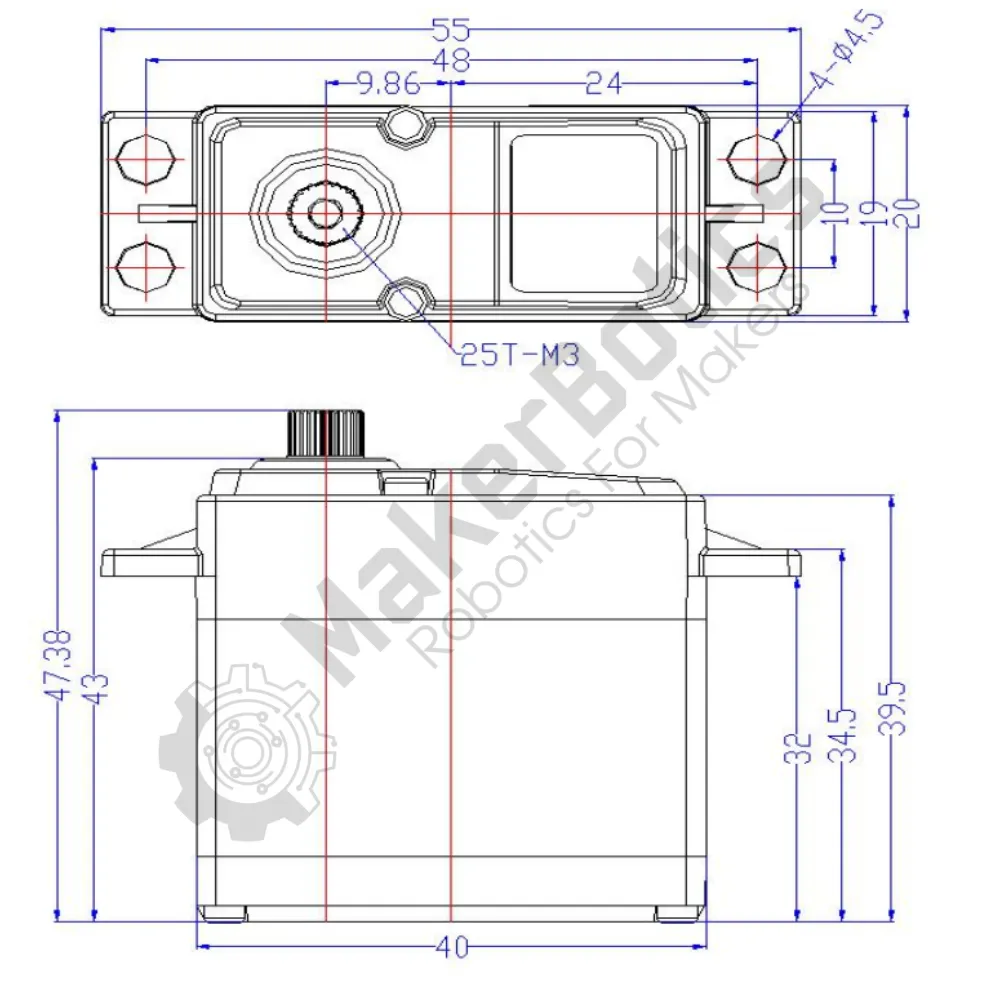

Engineering Drawings
Note: All dimensions are in mm.
| Weight | 0.2 kg |
|---|---|
| Dimensions | 5 × 3 × 5 cm |
