Feetech Serial Bus/UART Servo Controller – FE-URT1
$31.45 Inc. GST
The FE-URT-1 controller is a multifunction device, used to debug and control the STS and SCS series of servos via the serial interface. Multiple serial bus servos can be connected to this controller, making it easy to interface and communicate with only two wires as serial bus servos can be daisy-chained.
Out of stock
The FE-URT-1 controller is a multifunction device, used to debug and control the STS and SCS series of servos via the serial interface. Multiple serial bus servos can be connected to this controller, making it easy to interface and communicate with only two wires as serial bus servos can be daisy-chained.
This controller can be used to control serial bus servos for use in projects such as robot arms, pan-tilt systems or bipedal robots to name a few and communicates with microcontrollers via the serial interface (TX/RX pins). Serial bus servos also allow for telemetry, giving you feedback on the servo position, current, voltage and current output, expanding the control capability of the servos.
This controller module can work with both 3.3V and 5V logic, making it versatile for use with microcontrollers such as the popular ESP32, Teensy or Arduino microcontrollers.
The FE-URT-1 is compatible with the Windows 10, 8.1 and 7 operating systems.
Compatible Servos:
- STS3020 Serial Bus Servo
- SCS225 Serial Bus Servo
- SCS009 Serial Bus Servo
Specifications:
- Weight: 12.5 grams
- Size (L x W x H):55.8 x 36.7 x 11.5 mm
- Mounting size: 48.8 x 28.8 mm
- USB interface: MINI USB
- UART interface: 2.54 pin spacing
- SCS/STS servo interface: 3PIN 5264-3AW
- SMS servo interface: 4PIN 5264-4AW
- Power interface connector: 5.08mm Screw terminal
Included
- 1x Feetech Serial Bus/UART Servo Controller – FE-URT1
- 1x USB Cable

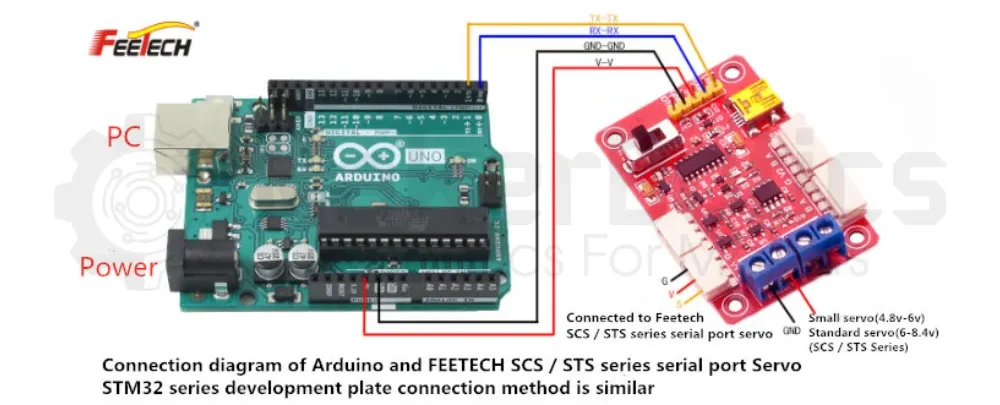

Arduino Microcontroller Wiring Example:
| Weight | 0.2 kg |
|---|---|
| Dimensions | 8 × 3 × 5 cm |
