TCS3472 Colour Sensor Module
$9.71 Inc. GST
The TCS3472 colour sensor is a popular colour sensor used for colour recognition. The sensor features a high-sensitivity colour-sensing chip, a wide colour-sensing range and a built-in IR-blocking filter. This makes the TCS3472 an ideal colour-sensing solution for use under variable lighting conditions.
Out of stock
The TCS3472 colour sensor is a popular colour sensor used for colour recognition. The sensor features a high-sensitivity colour-sensing chip, a wide colour-sensing range and a built-in IR-blocking filter. This makes the TCS3472 an ideal colour-sensing solution for use under variable lighting conditions.
The TCS3472 colour sensor has a wide range of applications which includes, colour-oriented pick and place devices, RGB LED backlight controls and colour object tracking.
Use this colour sensor with the Arduino, ESP32, Teensy or ESP8266 microcontrollers. 3.3V or 5V logic controllers can be interfaced with this sensor.
Included

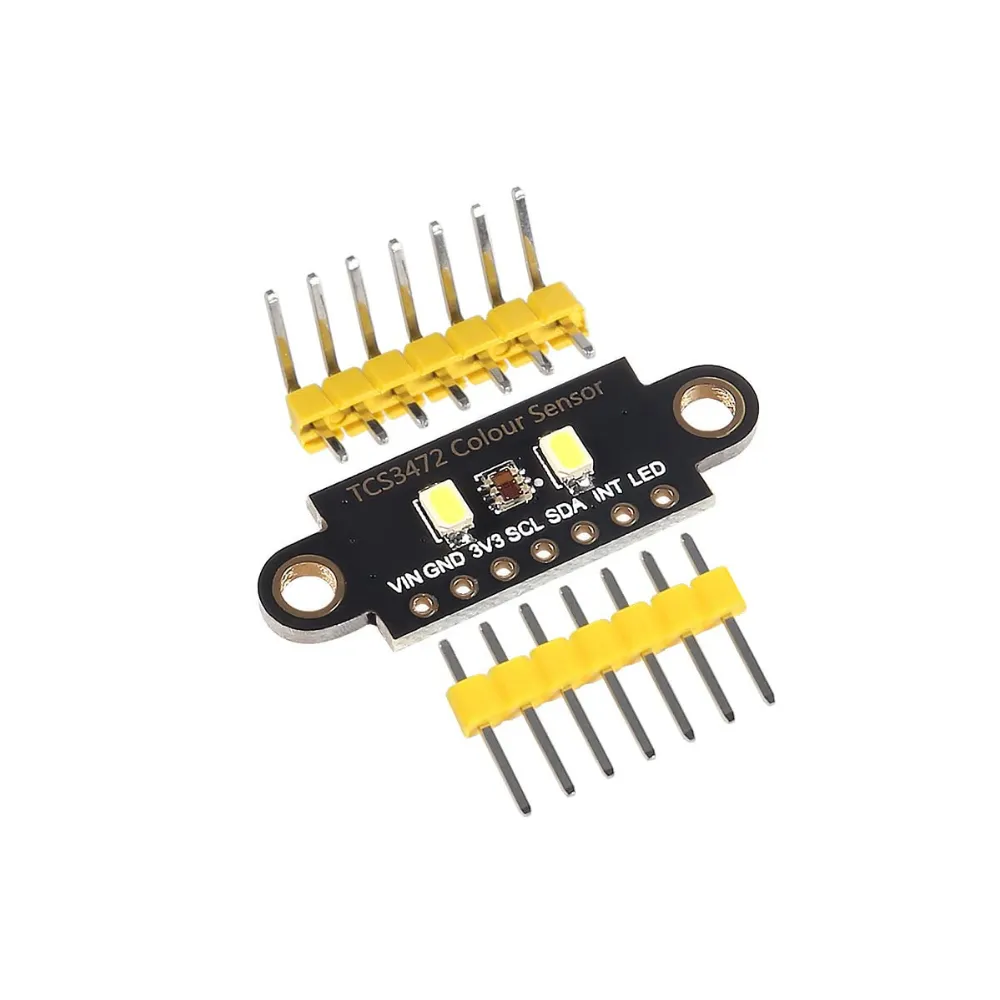

- 1x TCS3472 Colour Sensor Module
- 1x right angle header strip
- 1x header trip (straight)
Specifications
- Working voltage: 3.3V/5V
- Control chip: TCS32725
- Logic voltage: 3.3V/5V
- Communication interface: I2C
Features

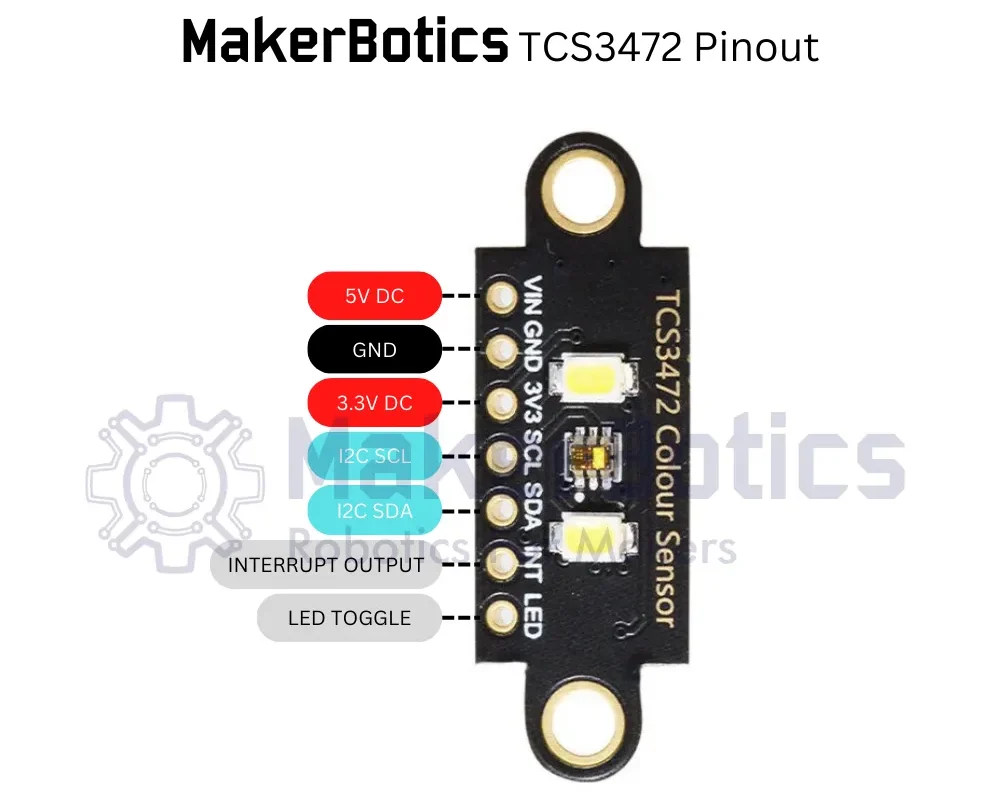

Pinout
Connectivity
This sensor is interfaced with microcontrollers either using the I2C communication bus pins (the most recommended communication method) or using the interrupt pin.
Uses
- Colour recognition devices
- Pick and place robots
Resources
| Weight | 0.05 kg |
|---|---|
| Dimensions | 3 × 1 × 2 cm |
