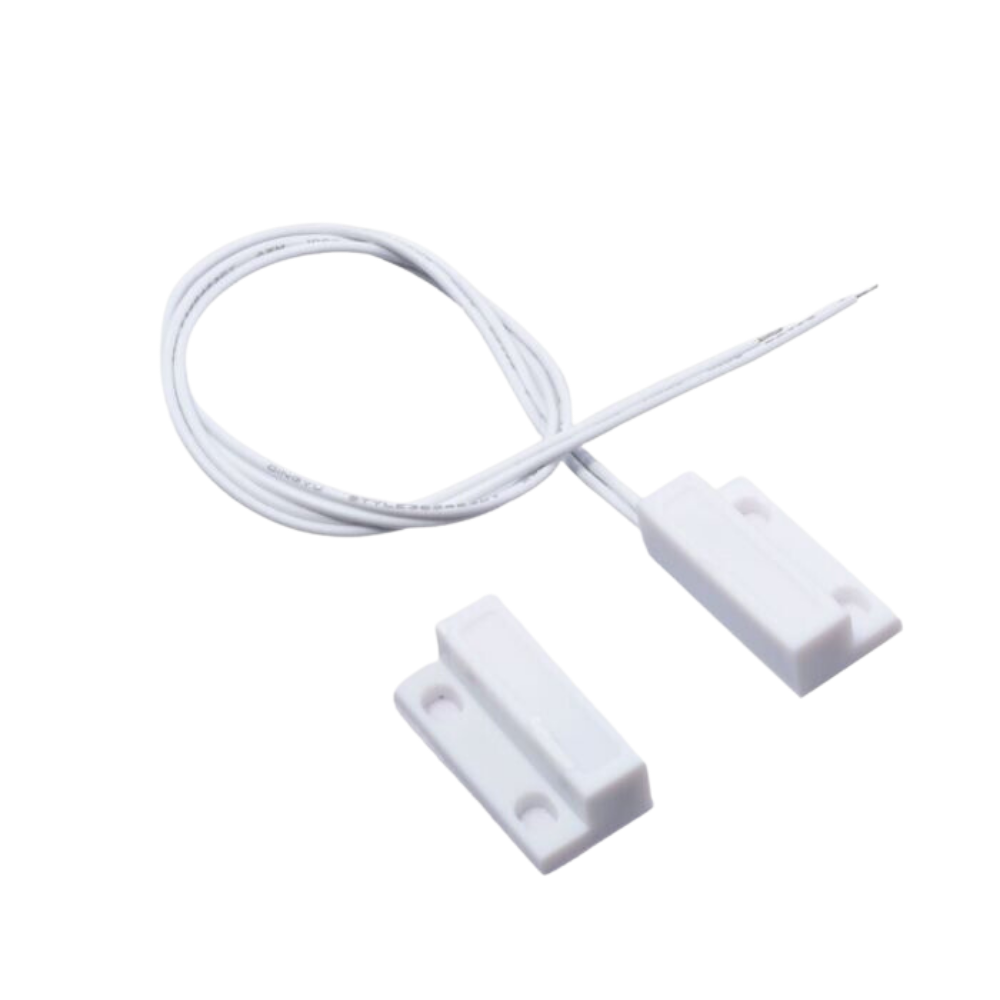

Magnetic Reed Sensor Module Set – Normally Open

The Magnetic Reed Sensor Module proves indispensable for microcontroller-based projects and robotics enthusiasts alike. Comprising a compact magnetic reed switch and a magnet, this set offers a dependable solution for discerning open or closed states within your robotic systems. Whether you’re crafting an autonomous robot, developing a smart home security system, or creating an interactive installation, this set constitutes a valuable asset to your project. Additionally, this module set serves effectively as a limit switch or interlock within a system.

Compatible with a wide range of microcontrollers, including ESP32, Arduino, Raspberry Pi, and more, the Magnetic Reed Door Switch Set allows you to expand your creativity in robotics and automation.

How does it work?

The reed sensor comprises two thin, ferromagnetic reed switch contacts housed within a protective case. When a magnetic field from a source such as a magnet encounters the contacts, they attract each other, thereby closing an electrical circuit. This alteration in the magnetic field prompts the sensor to discern the presence or absence of the magnetic field, enabling precise detection of the opening or closing of doors, windows, or other moving objects across diverse applications.

Magnetic Reed Sensor Module Specifications:

• ABS enclosure
• Trigger distance: 10mm
• Measurements: 27mm x 13.5mm (L x W)
• Normally Open reed switch

Uses:

• End stops/collision sensors
• Enclosure interlocks

Resources:

• Sample Code with ESP8266
