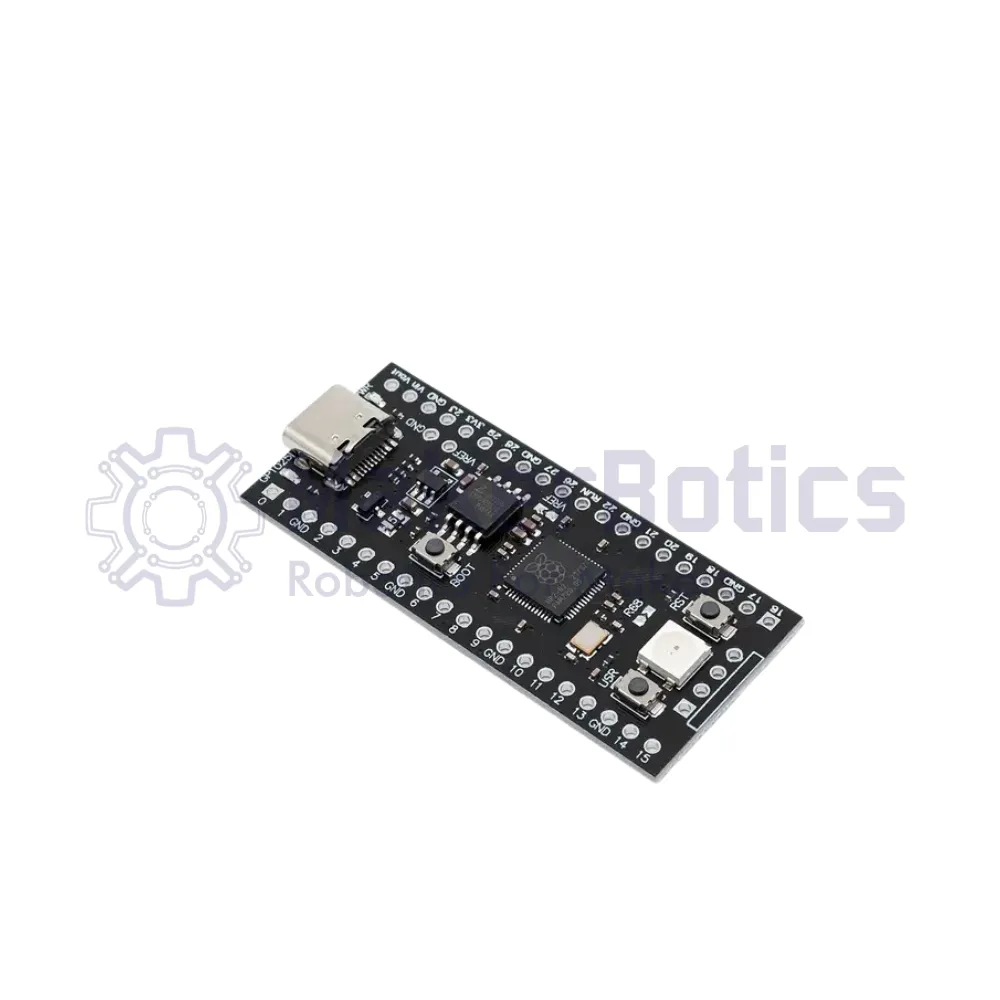

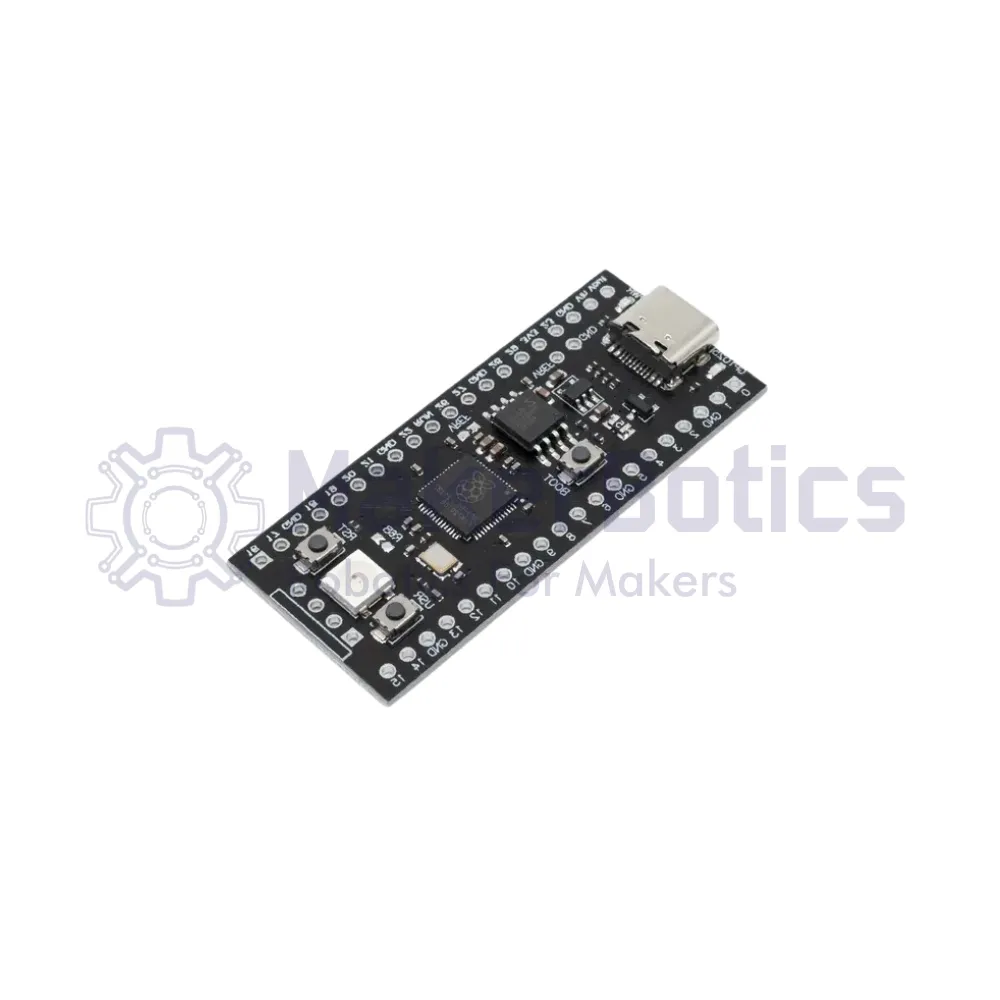

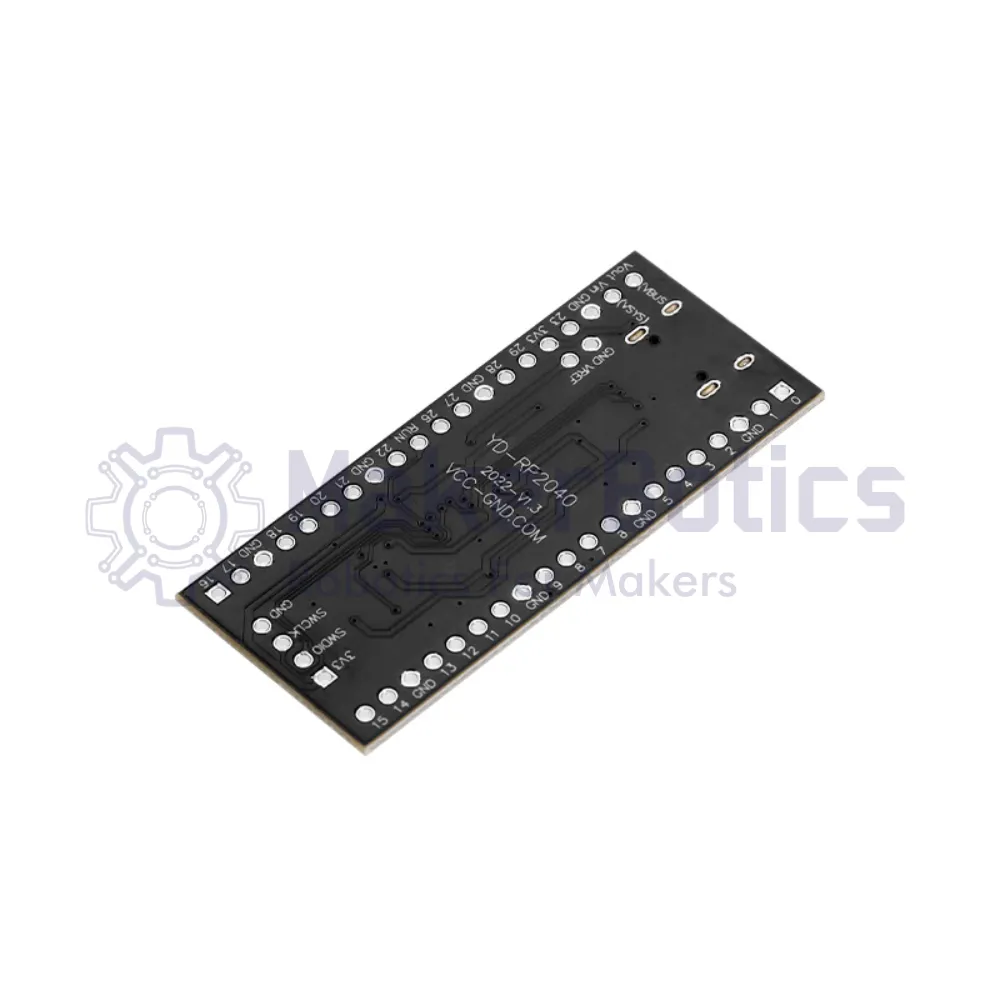

RP2040 Core Board – 16MB (Raspberry Pi Pico Compatible) – Makerbotics

The RP2040 Core Board is based on the very popular Raspberry Pi Pico. It features a dual-core ARM Cortex M0+ processor clocked at 133MHz which is excellent for projects requiring high processing power. This RP2040 Core board stands out due to its inclusion of 16MB of flash memory, a significant enhancement compared to the Pi Pico’s 2MB flash. This substantial upgrade offers a notable advantage, particularly for accommodating extensive code storage requirements.

TheRP2040 board is used in various applications by hobbyists, STEM/Education and Industry. Some common use cases include but are not limited to:

• Embedded Systems: Leveraging the RP2040 is optimal for constructing embedded systems like home automation devices, industrial control systems, and IoT (Internet of Things) applications.
• Robotics: Utilize the RP2040 for managing motors, sensors, and various components across robotics projects, spanning from compact hobby robots to expansive industrial automation systems.
• Educational Projects: This microcontroller is a great tool for teaching and learning about microcontroller programming, electronics, and robotics in educational settings such as schools, colleges, and maker spaces.
• Prototyping: Rapidly prototype and develop proof-of-concept projects for new product ideas or research initiatives

 Features

• Dual Core Cortex®-M0 microcontroller
• Clock speed up to 133MHz
• 16MB Flash memory and 264KB SRAM
• Comprehensive set of peripherals including GPIO, ADC, DAC, UART, SPI, I2C, and more
• 26 GPIO pins
• Onboard Temperature Sensor
• On-board standard LED for easy debugging
• On-board WS2812 RGB LED indicator
• Compatible with Arduino IDE or Micropython for seamless development

Pinout

(Open Image In New Tab To Zoom)

Included:

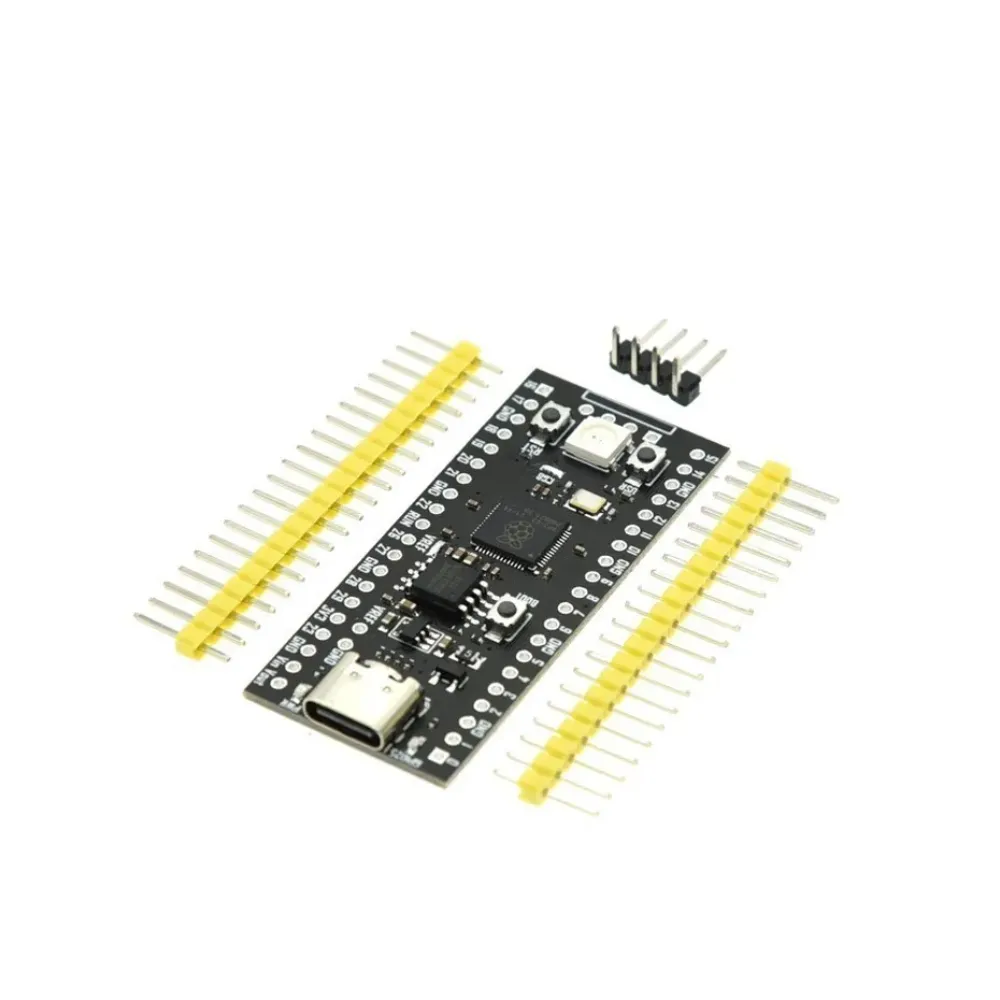

• RP2040 Core Board
• Male Headers

Resources:

• How to configure the RP2040 board with the Arduino IDE

Software:

The RP2040 Core Board is compatible with the following software:

• Arduino IDE
• Micropython
