Arduino Nano Compatible Wireless IO Sensor Shield

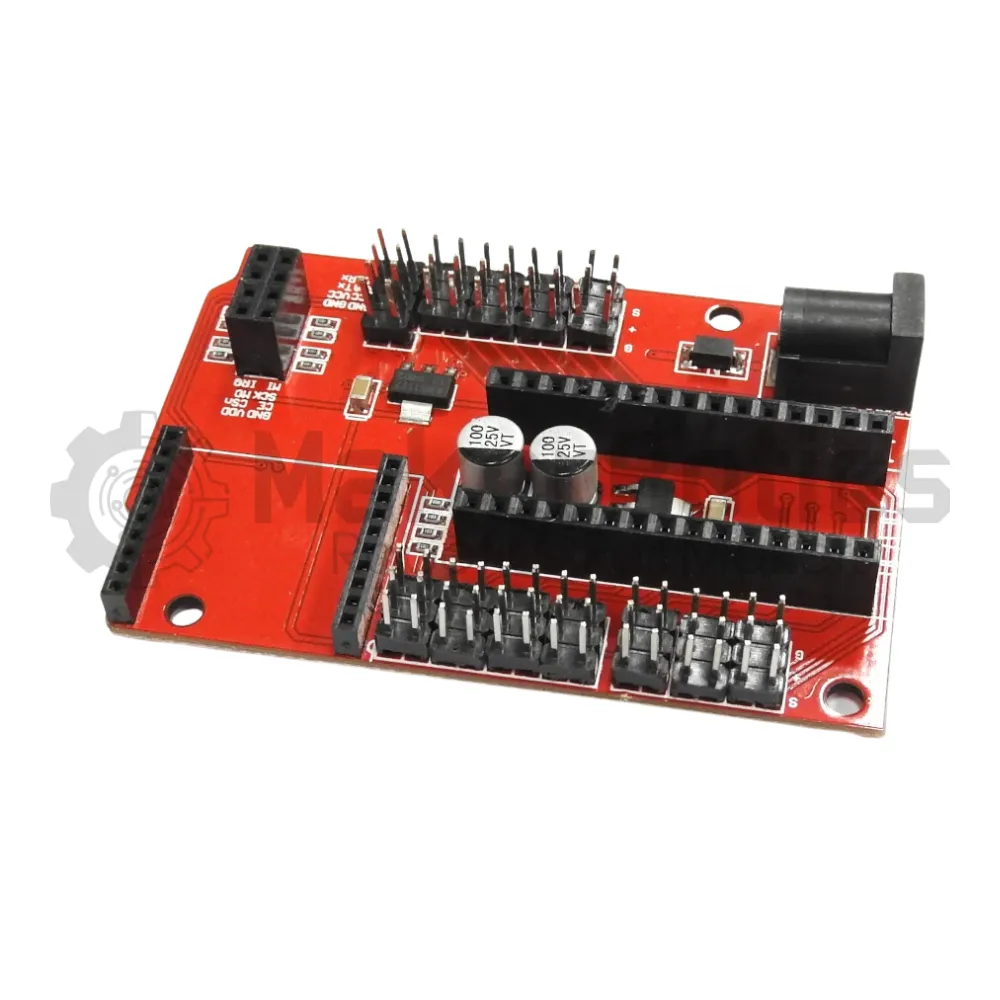

The Arduino Nano Compatible Wireless IO Sensor Shield is a feature-rich, compact shield designed to significantly enhance the capabilities of the Arduino Nano 328P. It simplifies access to all I/O pins while providing seamless integration with wireless communication modules, making it ideal for IoT projects, robotics, and remote-control applications.

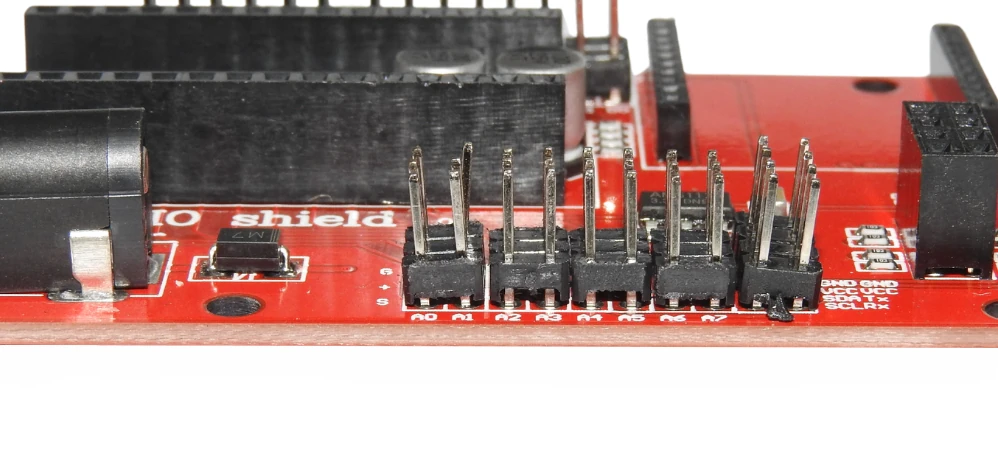

This shield expands the Nano’s I/O pins into 3-way headers with an SVG (Signal, Voltage, Ground) configuration, enabling easy and efficient sensor and module connections. With built-in compatibility for XBee Bluetooth Modules and NRF24L01 Wireless Modules, this shield empowers your microcontroller to perform wireless communication effortlessly. It’s the perfect companion for developers seeking to create innovative, wirelessly-connected solutions.

The shield features a reliable 2.5mm barrel jack connector, allowing external power input for added flexibility. Whether you’re a hobbyist or a professional, this shield offers unmatched convenience in a compact form factor.

Arduino Nano Compatible Wireless IO Sensor Shield Key Features:

• Enhanced Functionality: Expands Arduino Nano 328P I/O pins with easy-to-access 3-pin headers.

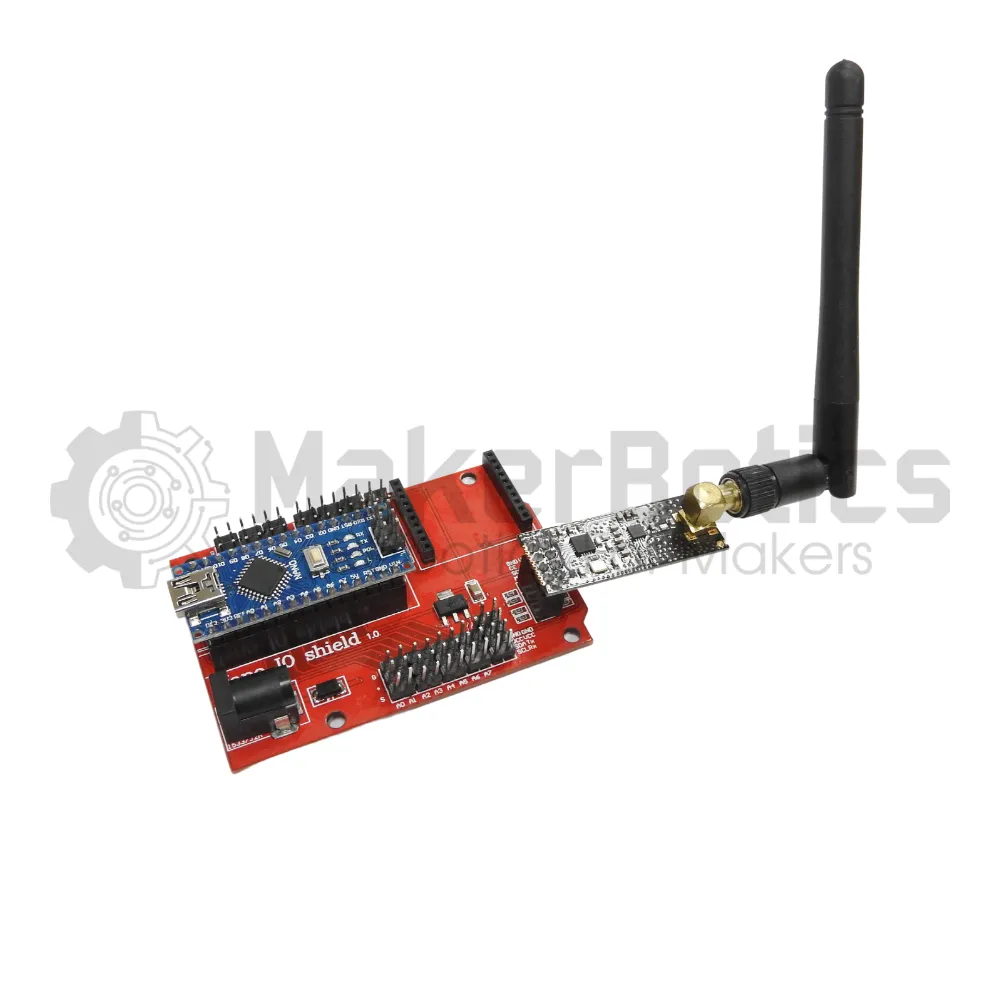

• Wireless Module Support: Fully compatible with ZigBee XBee and NRF24L01 modules for robust wireless communication.
• Simplified Sensor Integration: SVG pin layout simplifies connection with sensors and actuators.
• External Power Compatibility: Supports a wide input voltage range of 7V to 12V via a secure 2.5mm barrel jack connector.
• Prototyping Ready: Compact, durable design, perfect for IoT, robotics, and other cutting-edge projects.

Specifications:

• Supply Voltage Range: 7–12 VDC (via 2.5mm barrel jack)
• I/O Pins:
  • 14 Digital I/O pins with Signal, Voltage, and Ground configuration
  • 8 Analog Input pins
  • 6 PWM-capable pins
• Expansion Interfaces:
  • I2C pins for additional device connectivity
  • Serial TX/RX pins for communication
• Dimensions:
  • Length: 75 mm
  • Width: 50 mm
  • Height: 12 mm
• Weight: 0.1 kg

Compatible Boards:

• Compatible with Arduino Compatible Nano (Nano not included; sold separately)

Additional Notes:

• Due to manufacturing variations, terminal pins may have a slight angle. This does not affect functionality—100% operational and ready to use.
• The shield is compatible with a Male 2.5mm Solderless Screw Terminal Barrel Jack Connector for easy power connectivity.
• Arduino Compatible Nano is not included.  It can be purchased separately.

Compatible Boards:

• Arduino Compatible Nano
