FlySky FS-CT6B 6 Channel RC Transmitter/Receiver Kit

The Flysky FS-CT6B 6 channel RC transmitter and receiver is a reliable and feature-packed radio control system perfect for hobbyists and enthusiasts alike. With its 6 channels, the FS-CT6B offers extensive flexibility and versatility, allowing you to effortlessly control multiple functions of your RC vehicle or aircraft; which include but are not limited to RC cars, RC Helicopters and robots.

Equipped with advanced 2.4GHz technology, the FS-CT6B provides a reliable and interference-free connection, giving you a stable and responsive control experience. AFHDS (Automatic Frequency Hopping Digital System), a state-of-the-art digital protocol comes as standard with this system. With AFHDS, you can operate multiple radios simultaneously without worrying about interference, ensuring seamless communication between the transmitter and receiver of your Flysky FS-CT6B system while maintaining optimal control over your RC vehicle.

The Flysky FS-CT6B 6 channel RC transmitter and receiver can be effectively utilized in robotics applications, extending its capabilities beyond traditional RC vehicles. By integrating this system into your robotic projects, you can achieve precise and remote control over various robotic mechanisms.

With its 6 channels, the FS-CT6B allows for individual control of multiple motors, servos, or actuators in your robotic system. This flexibility enables you to manipulate and control different components with accuracy and synchronization.

The Flysky FS-CT6B 6 channel RC transmitter and receiver system can be further fine-tuned in software, enabling customization and fine-tuning of control parameters as well as channel mixing. After the software is installed, simply connect the transmitter to your computer via USB to access software options that offer intuitive interfaces and advanced features. With software, you can adjust servo endpoints, throttle curves, and mixing options for precise control. Save and load settings, as well as perform firmware updates, to stay up to date with the latest features.

Specifications

• Transmitter/Receiver: 2.4GHz
• Mode type: Airplane, Helicopter, Glider
• Stick mode: Throttle on Righ Hand Side
• Modulation: Frequency Modulation
• Antenna length: 115cm/26mm
• Code type: PPM/GFSK
• Power: 8x AA batteries
• Certificate: CE FCC
• RF power: Less Than 0.8w
• Transmission power: <20 dBm
• Range: 500 ～ 1000m (in the air)
• Low voltage alarm: ＜ 9V

• Wireless protocol: AFHDS

Included:

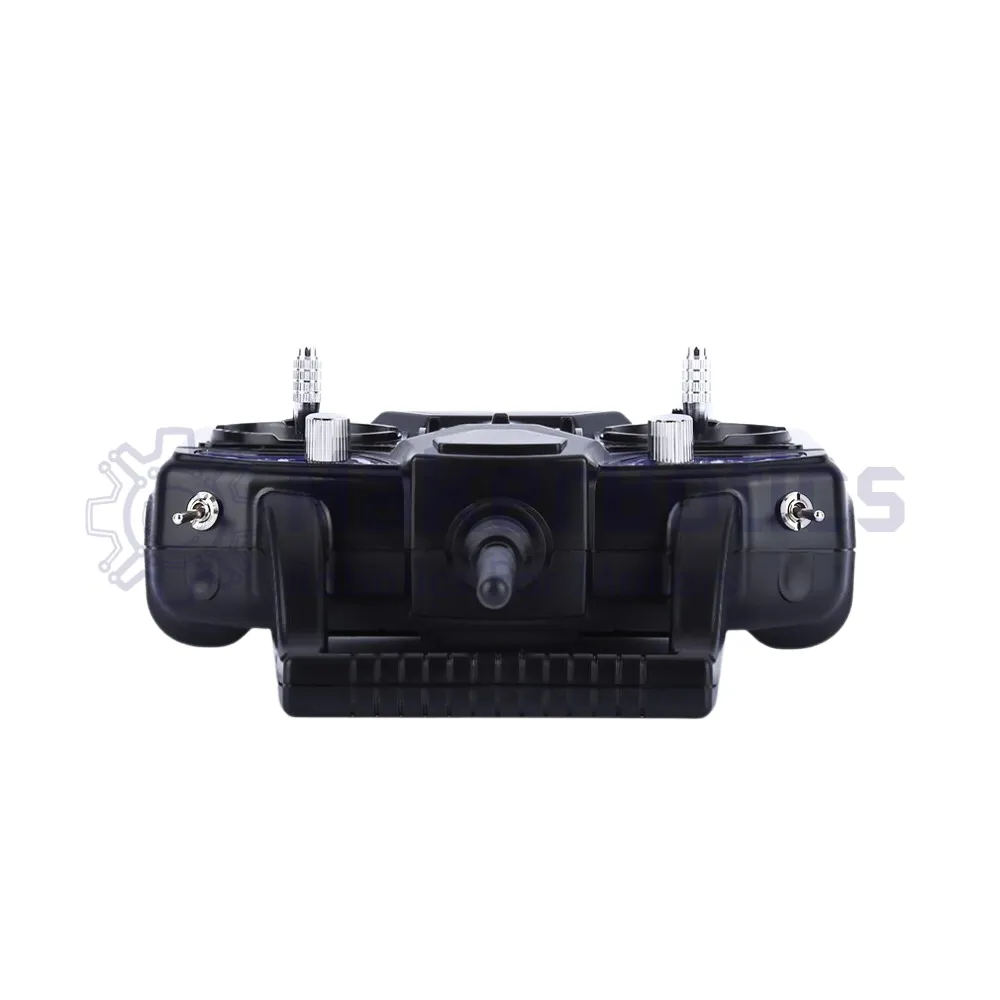

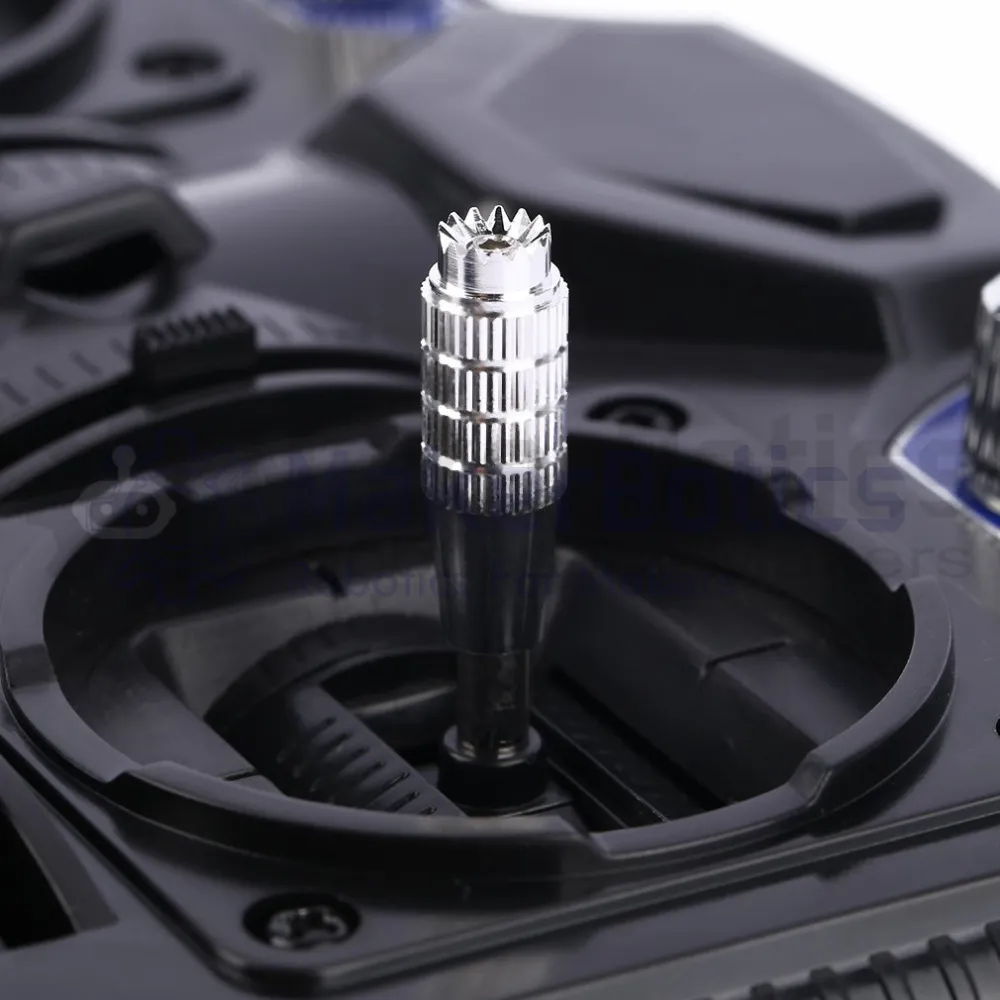

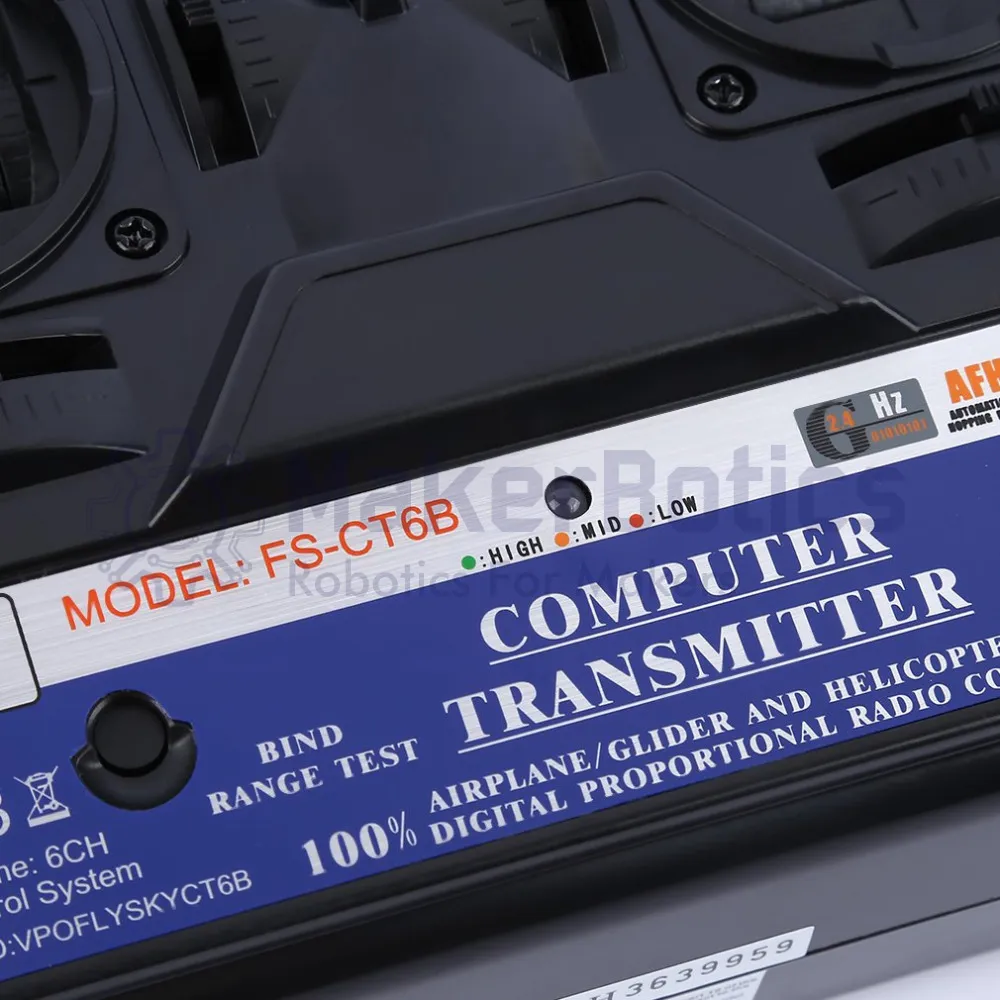

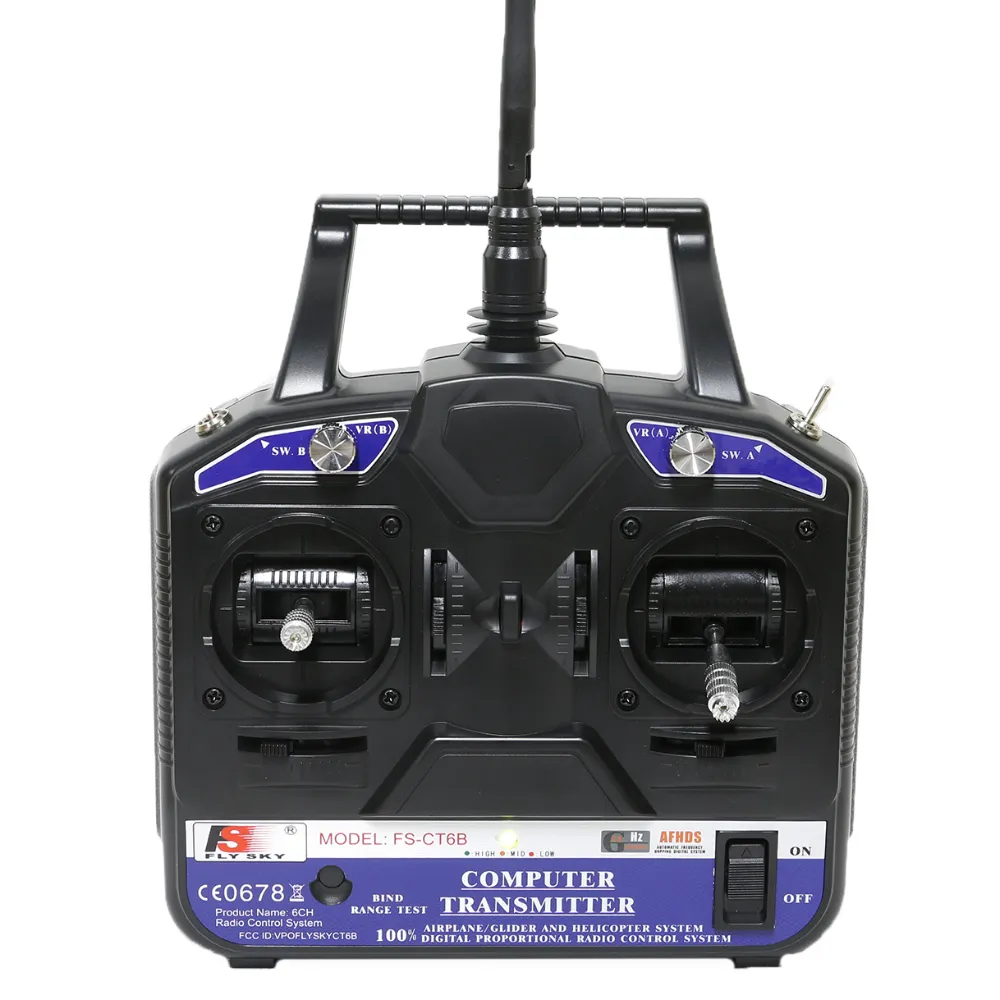

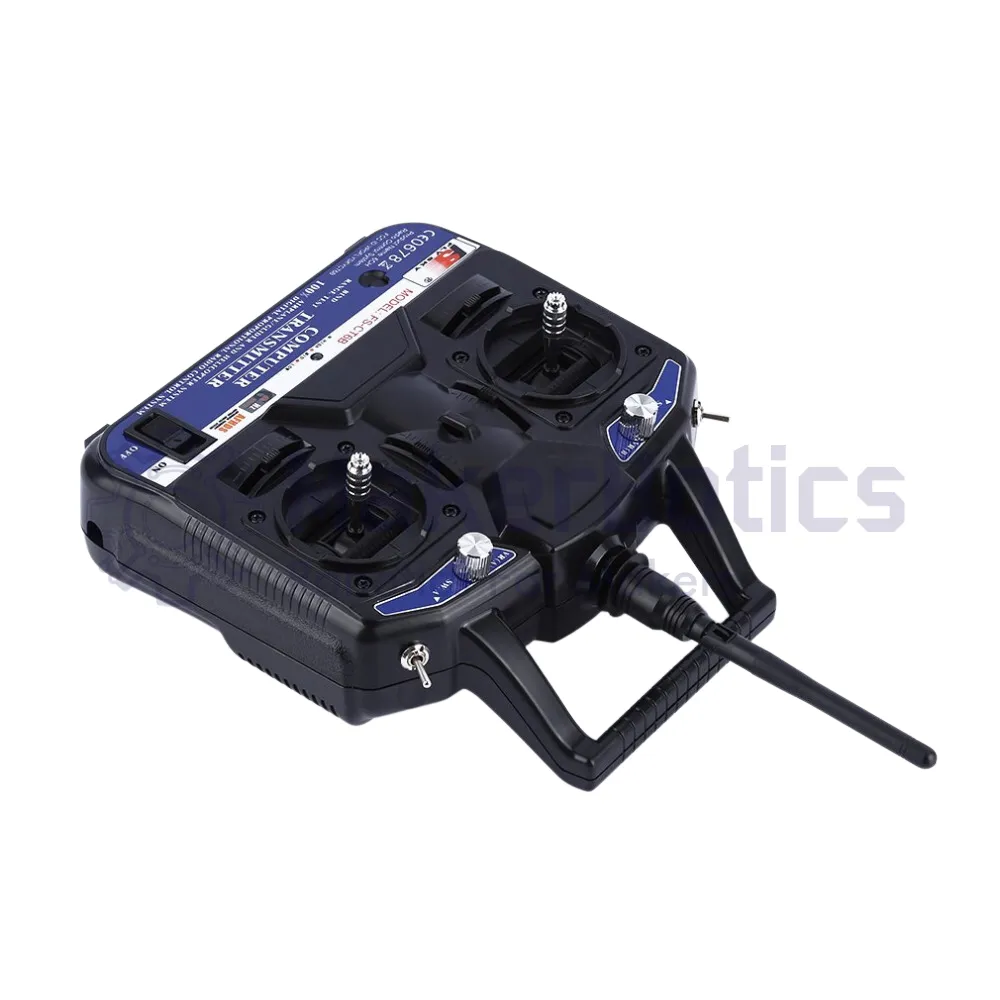

• Flysky FS-CT6B RC Transmitter

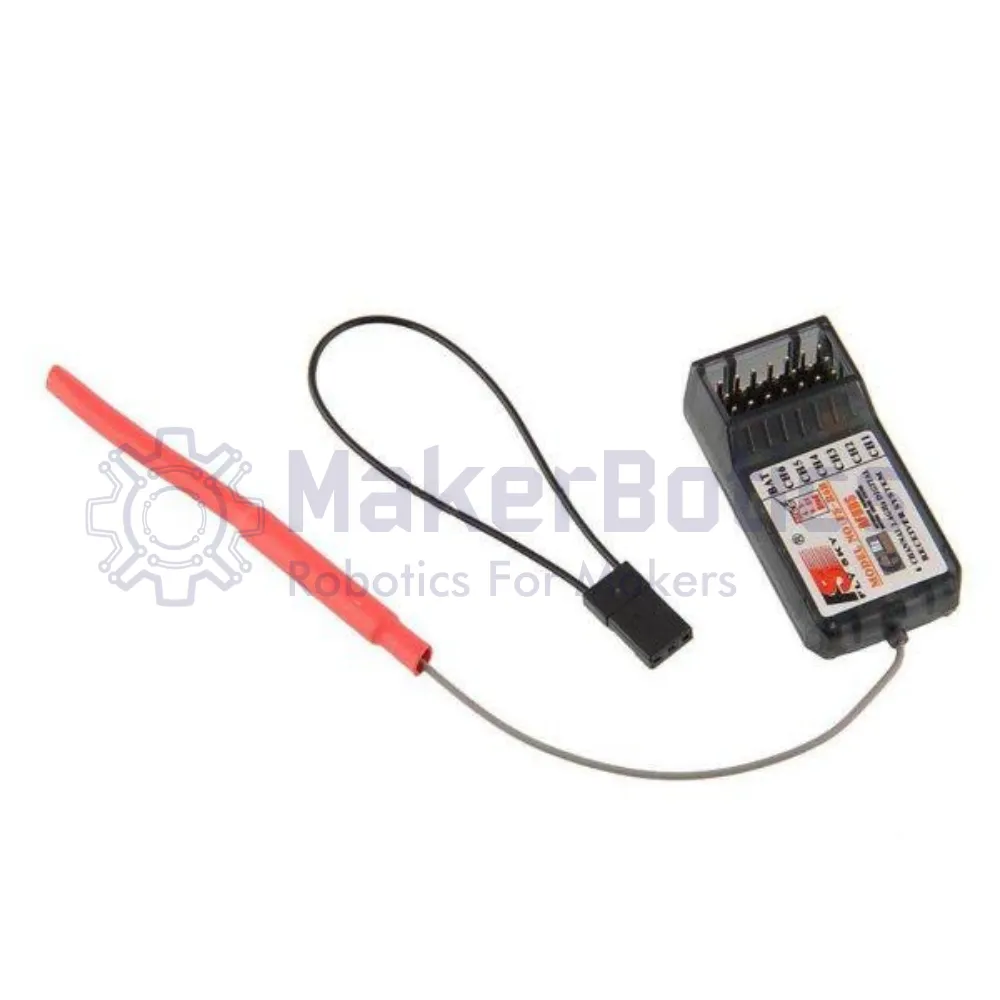

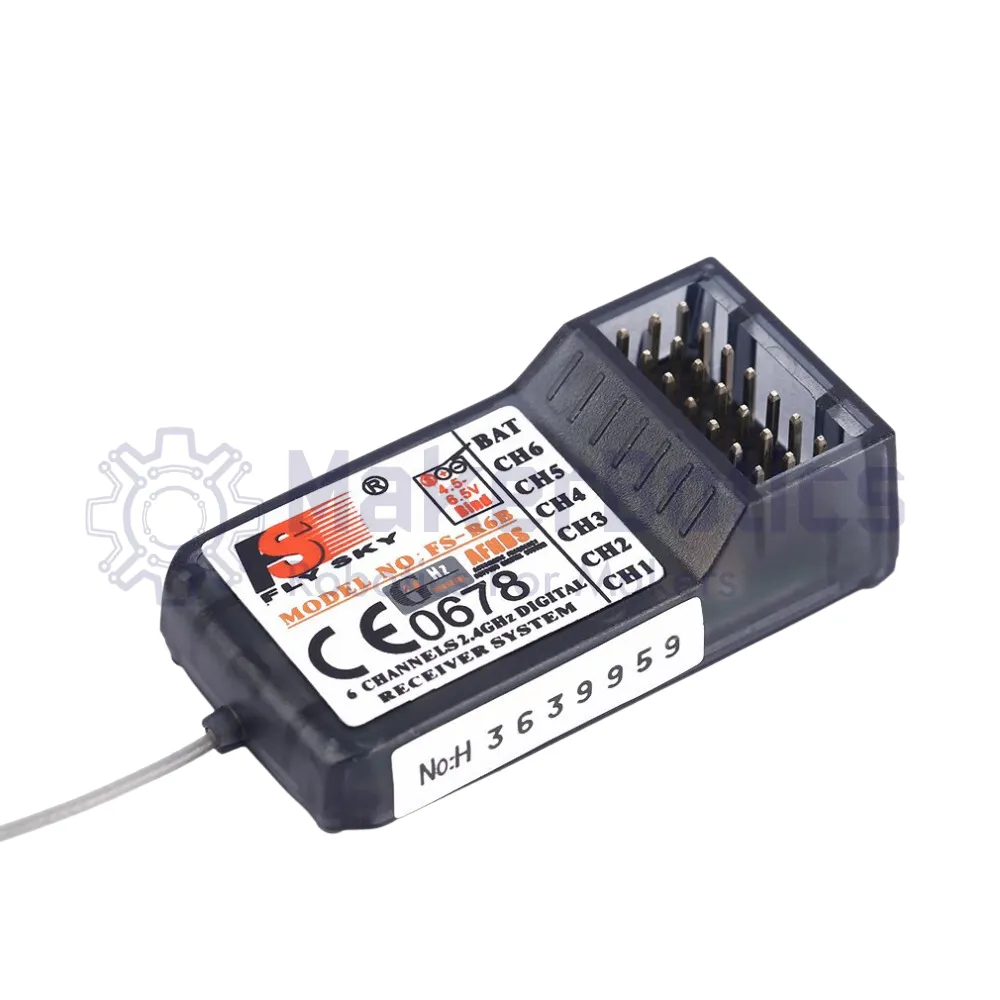

• Flysky FS-R6B Receiver
• Binding plug
• Software CD

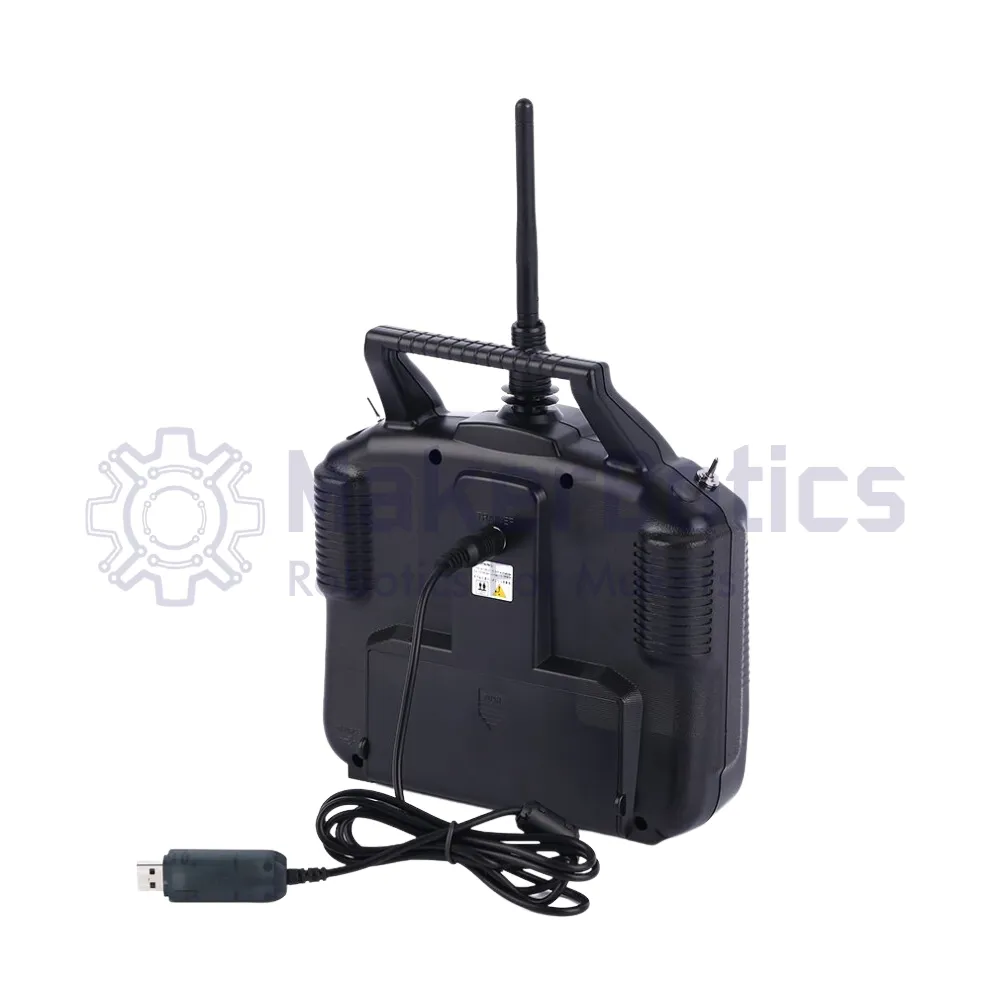

• Programming USB cable

Uses:

• Aircraft; Drones, RC Helicopters, Fixed Wing Aircraft
• RC Cars
• Robotics

Documentation and Resources:

• Quick Start Guide
• Firmware
• User Manual
