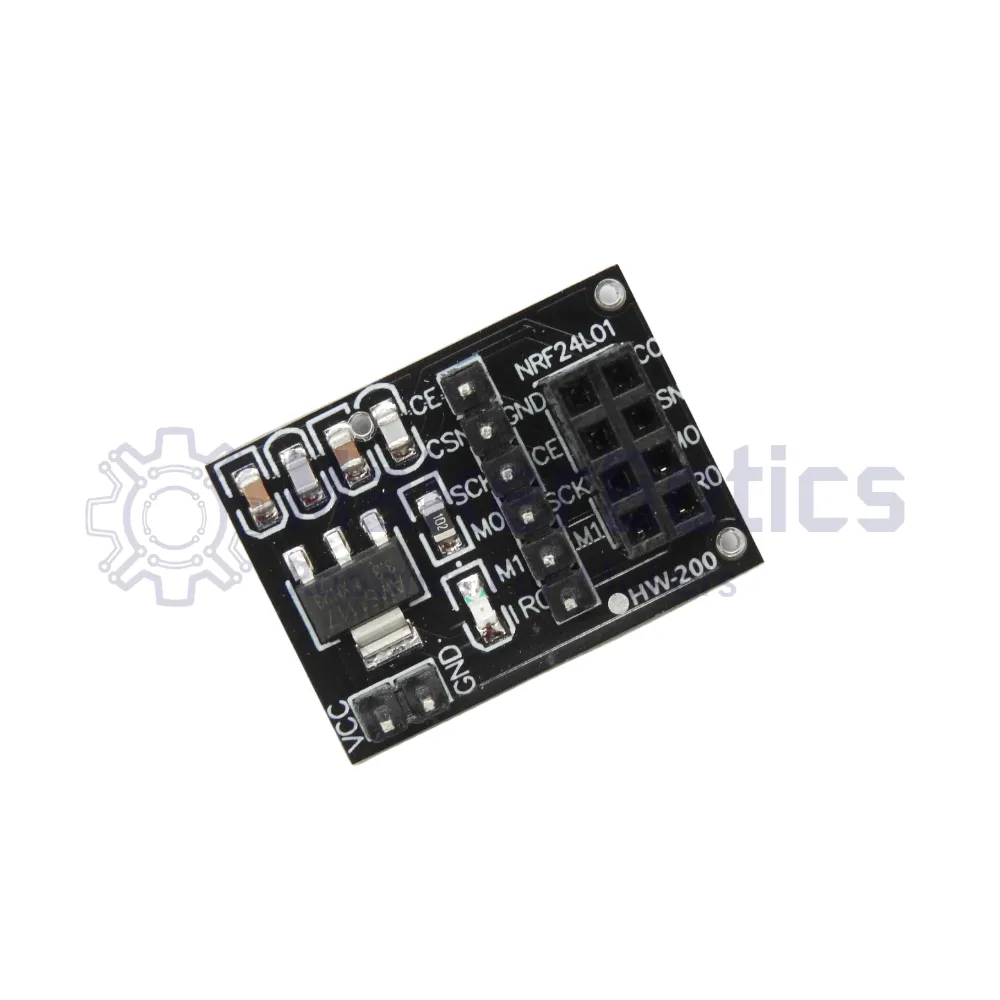

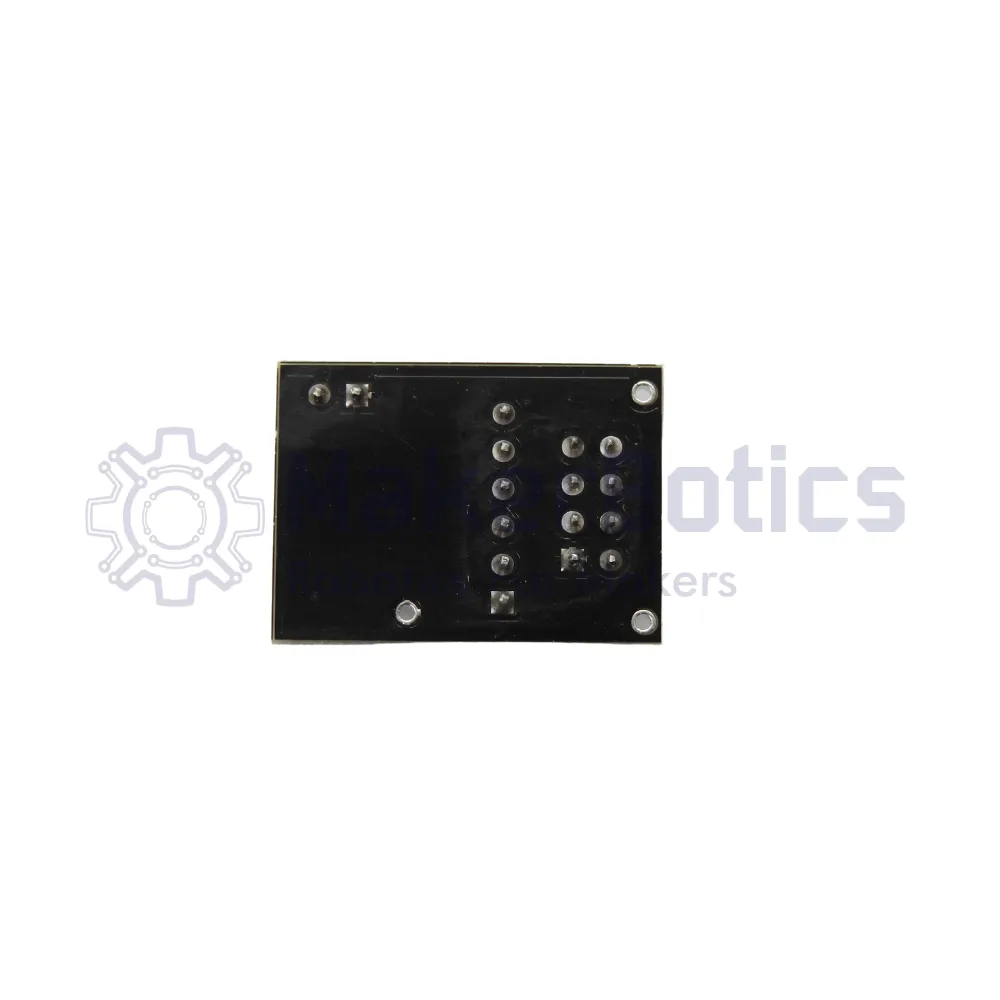

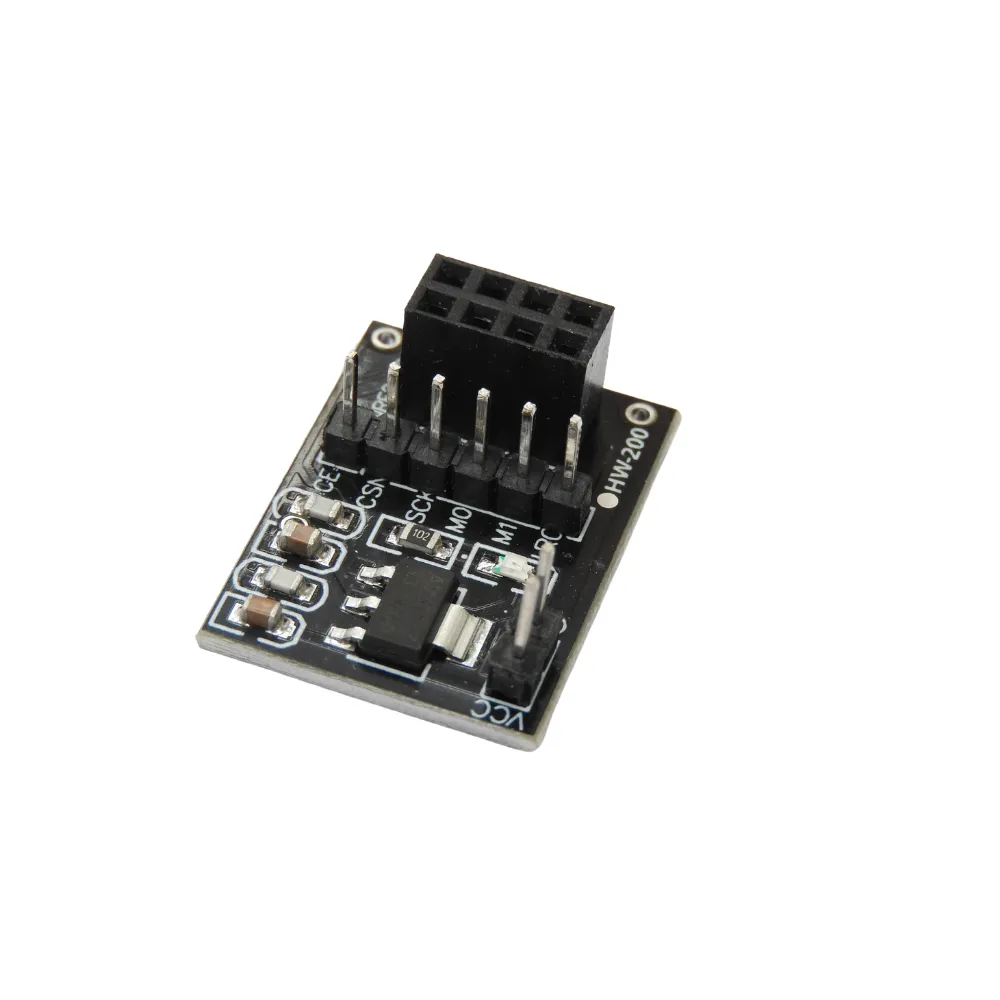

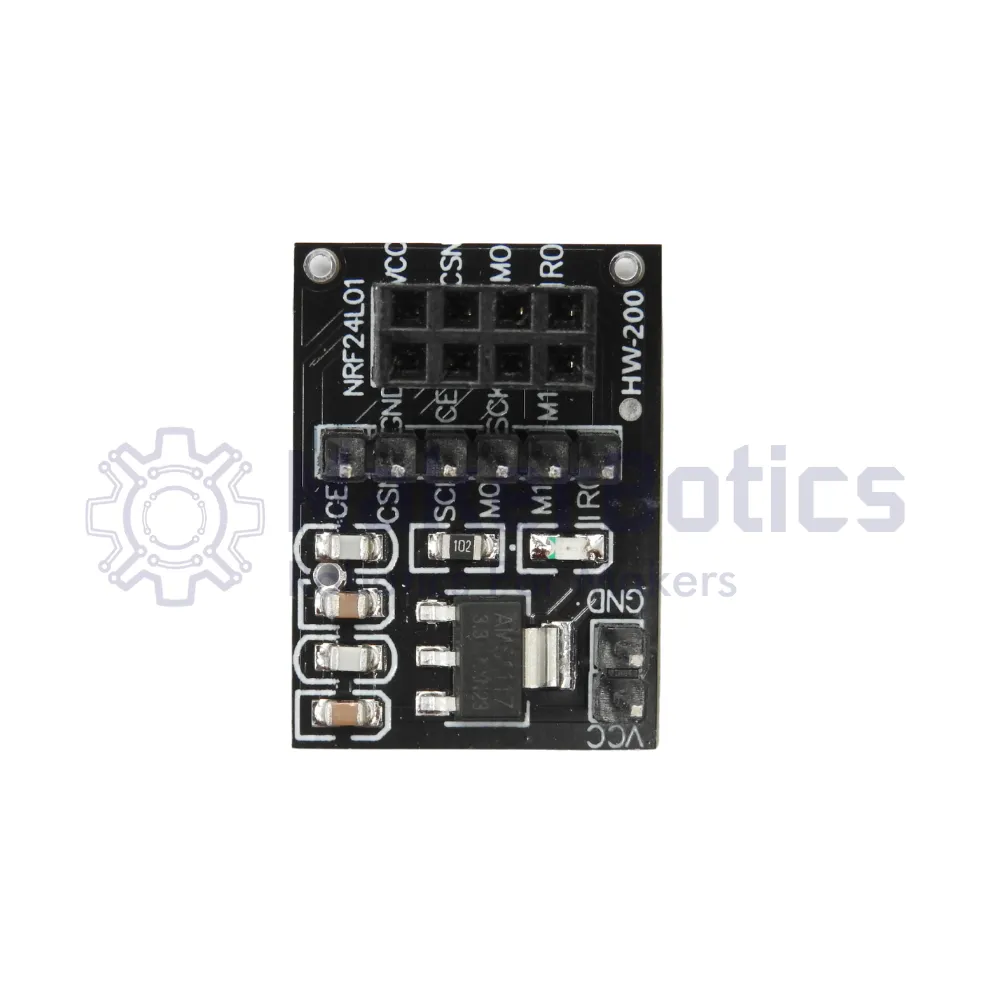

NRF24L01 Wireless Transceiver Socket Adapter Board

The NRF24L01 Wireless Transceiver Socket Adapter Board is a small circuit board designed to enable easy interfacing of the NRF24L01 or the  NRF24L01 + PA + LNA wireless transceiver module with other electronic circuits or devices.

This module has a number of pins that must be connected to specific pins of the microcontroller or other electronic devices to function properly. The NRF24L01 Wireless Transceiver Socket Adapter Board simplifies this process by providing a socket that the NRF24L01 module can be inserted into and then connecting the socket to a set of pins that can be easily connected to the microcontroller or other electronic devices.

The popular AMS1117 voltage regulator is built into this module to provide a stable operating voltage to the NRF24L01 module, as well as capacitors to help filter noise and improve signal quality. This helps to ensure reliable wireless communication between the NRF24L01 module and other electronic devices.

Specifications

• Power in: 5VDC
• Dimensions: 26 x 19mm
• Suits the 8-pin NRF24L01 and NRF24L01 + PA + LNA modules

Features

• Built-in 3.3V Voltage Regulator
• Labeled breakout pins
• Power status LED

Connectivity

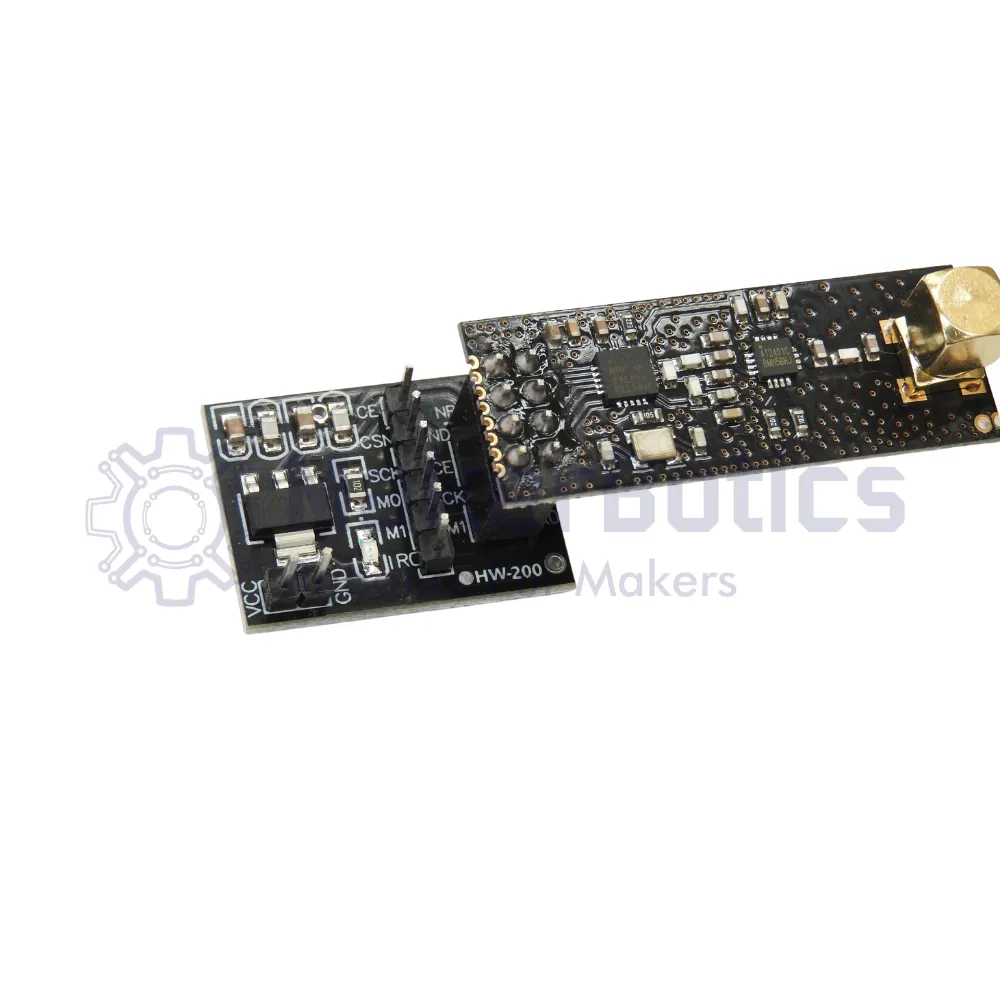

The NRF24L01 Wireless Transceiver Socket Adapter Board does not require a logic-level filter. The NRF24L01 + PA + LNA that plugs into this module has level-shifting circuitry to support both 3.3V and 5V logic levels, making it compatible with controllers such as the ESP32, Teensy or Arduino. This module uses a SPI (Serial Peripheral Interface) interface for communication with your desired controller microcontrollers.

Note

The NRF24L01 or the  NRF24L01 + PA + LNA wireless transceiver modules are not included. They can be purchased here.
