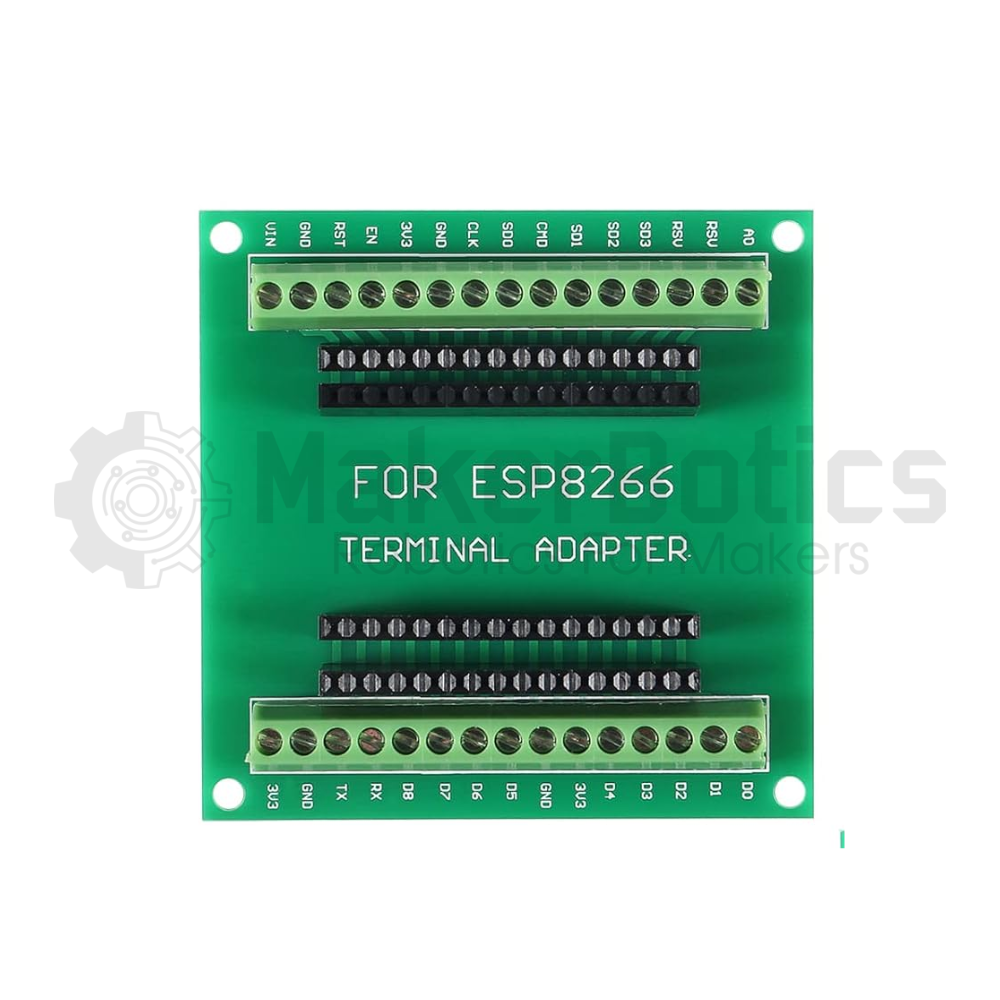

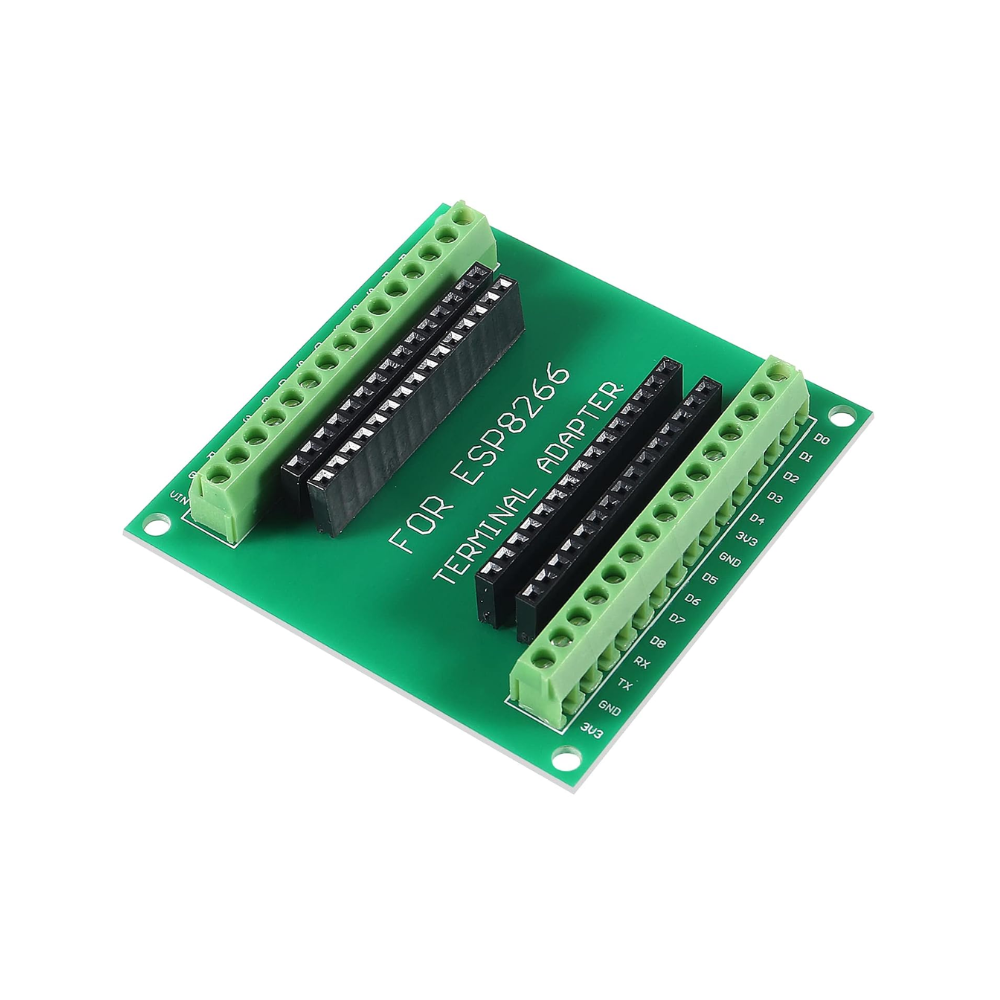

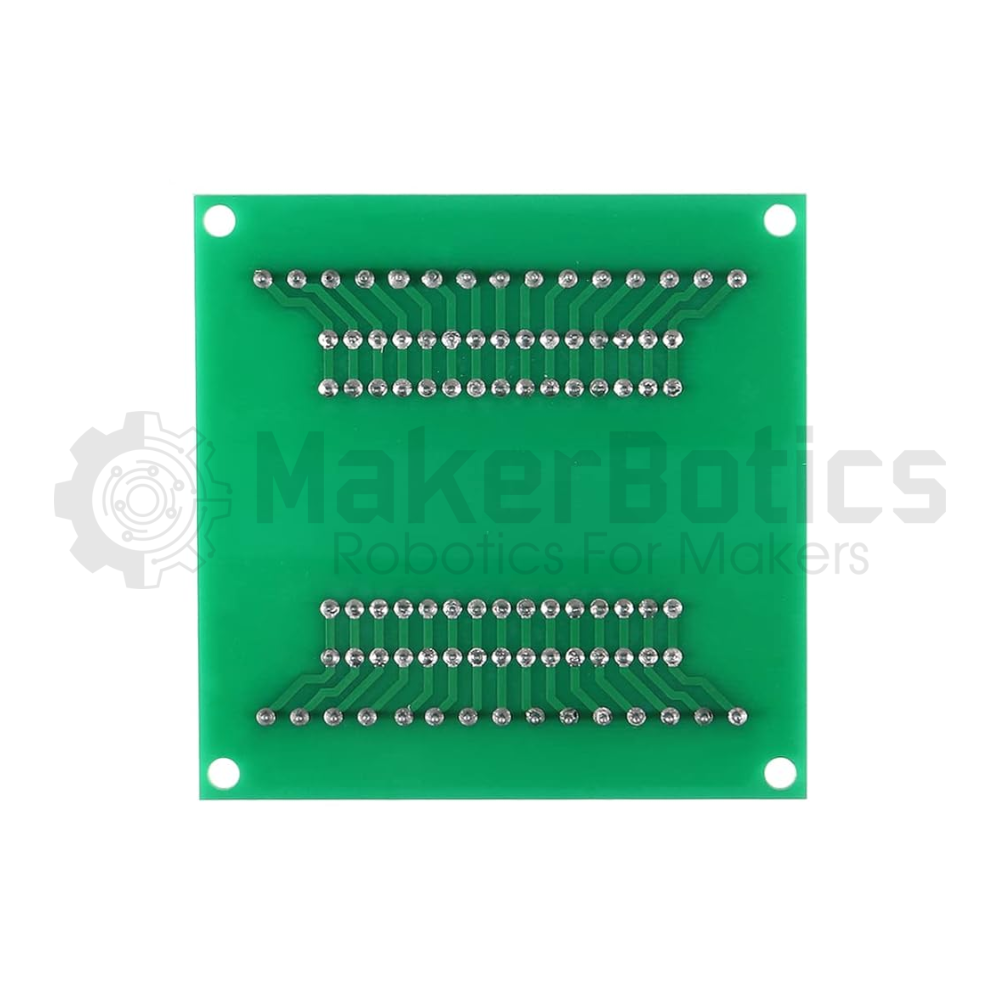

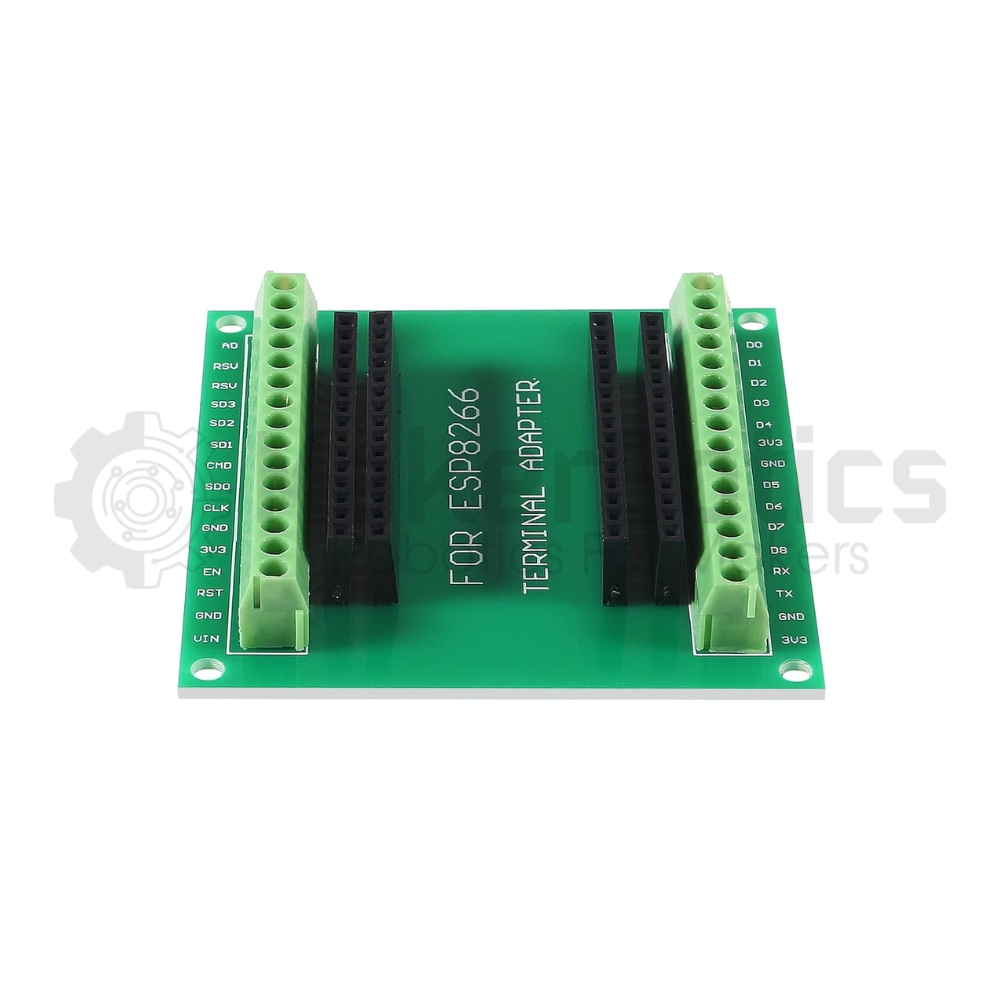

ESP8266 NODEMCU V2 Expansion Shield

Note: this screw terminal shield is designed for use with our ESP8266 NODEMCU V2. Other ESP8266 variants will not be compatible.

Make prototyping easy with the ESP8266 NODEMCU V2 Expansion Shield. This shield features two modes of connection to ancillary devices such as sensors via EDG screw terminals and female Dupont headers. Mounting this shield is also made easy with 4 mounting holes accepting M3 screws.

The pin labelling matches the pin labelling on the NODEMCU V2 making it easy to decipher the pinout when making connections.

ESP8266 NODEMCU V2 Expansion Shield Specifications:

• Suits NodeMCU V2
• Dimensions: 78mm x 66mm
• Connection Interface: EDG Screw Terminal and Dupont connections
• Mounting hole Size: M3, 4 Mounting holes

Pinout: Follows The NodeMCU V2 Pinout Diagram

(Open Image In New Tab To Zoom)

Included:

• Nodemcu ESP8266 V2 Expansion Shield (Pre-soldered)

Tips and tricks:

• While you have access to both screw terminals and Dupont connections, screw terminals are most recommended for secure connections to peripherals such as sensors or relays.

Please note:

• The NodeMCU ESP8266 V2 is not included. It can be purchased here.
