L293D Motor Driver – Dual Channel Module
$5.25 Inc. GST
The L293D motor driver module is a popular and easy-to-use motor driver used to control two DC motors and therefore can be used in applications such as driving a small robot chassis.
Out of stock
The L293D motor driver module is a popular and easy-to-use motor driver used to control two DC motors and therefore can be used in applications such as driving a small robot chassis. This motor driver is very easy to program and control, making software integration easy and straightforward. Status lights for the main power supply and driver channel activation make it easy to monitor the L293D motor driver functionality.

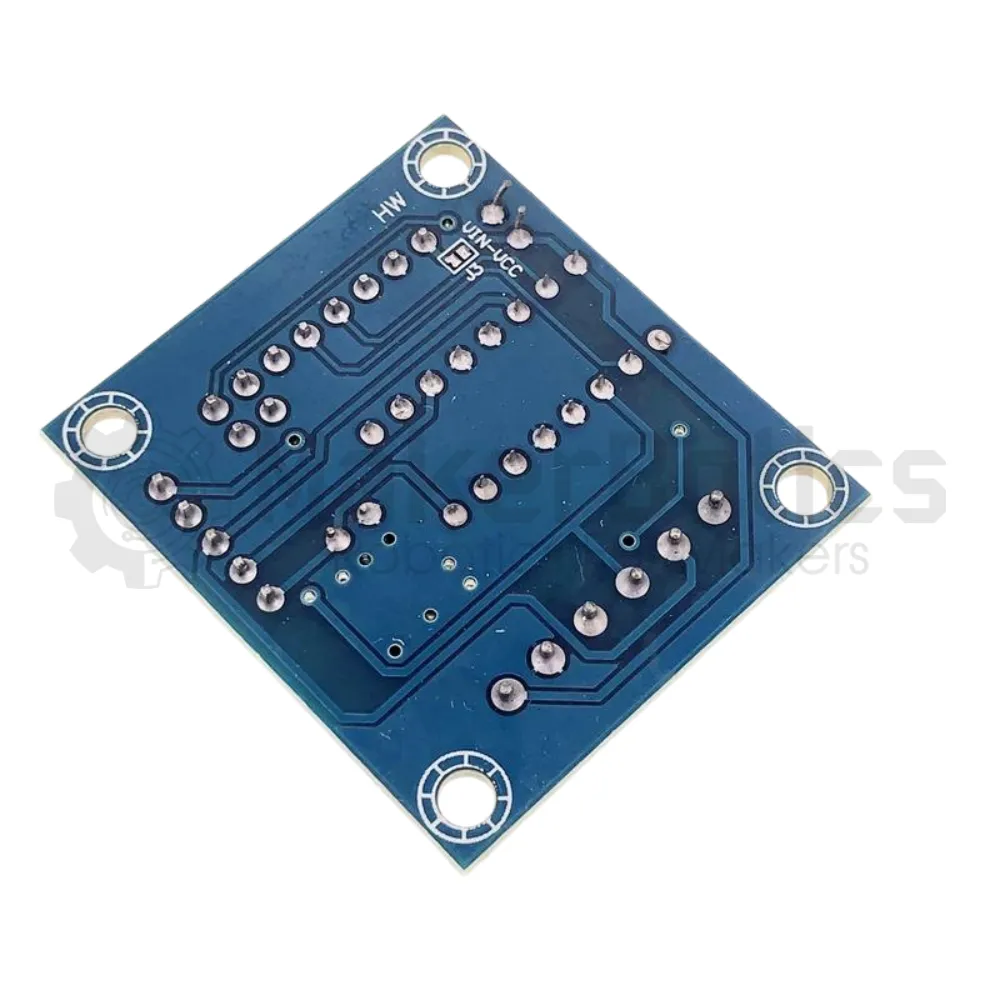

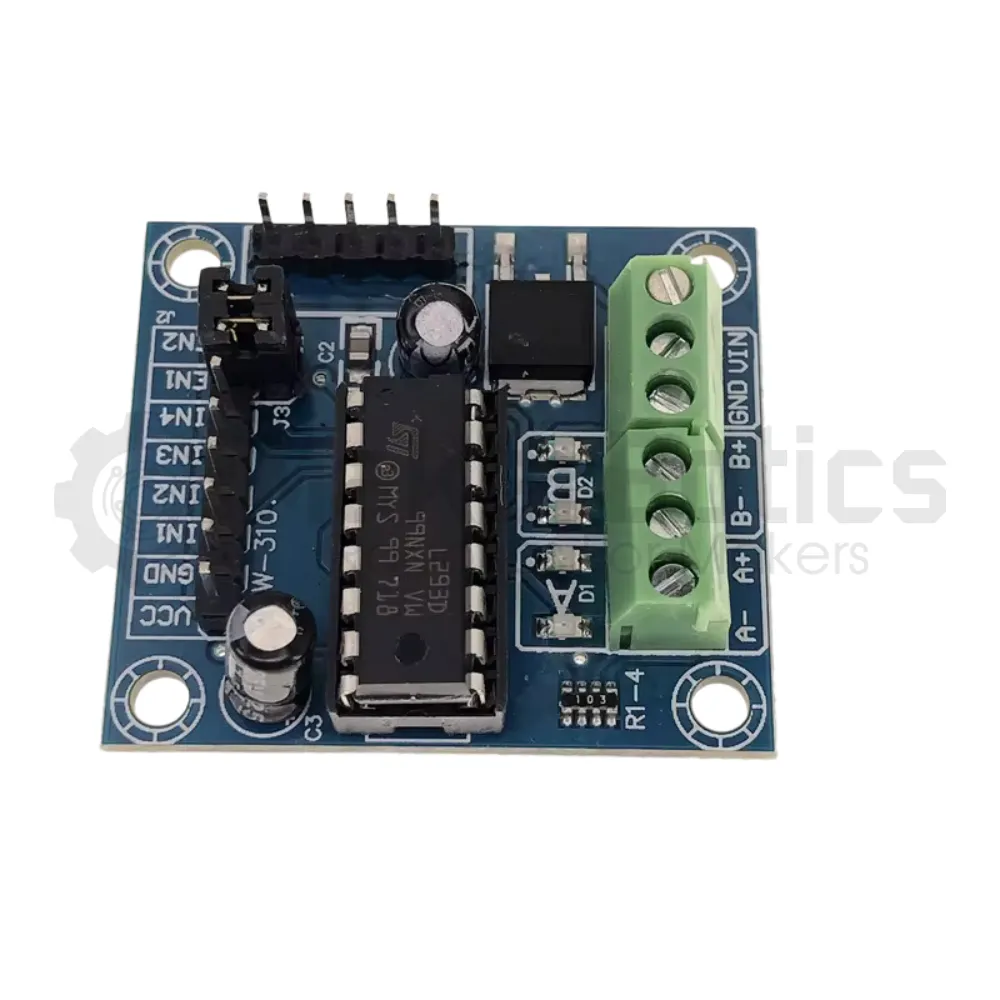

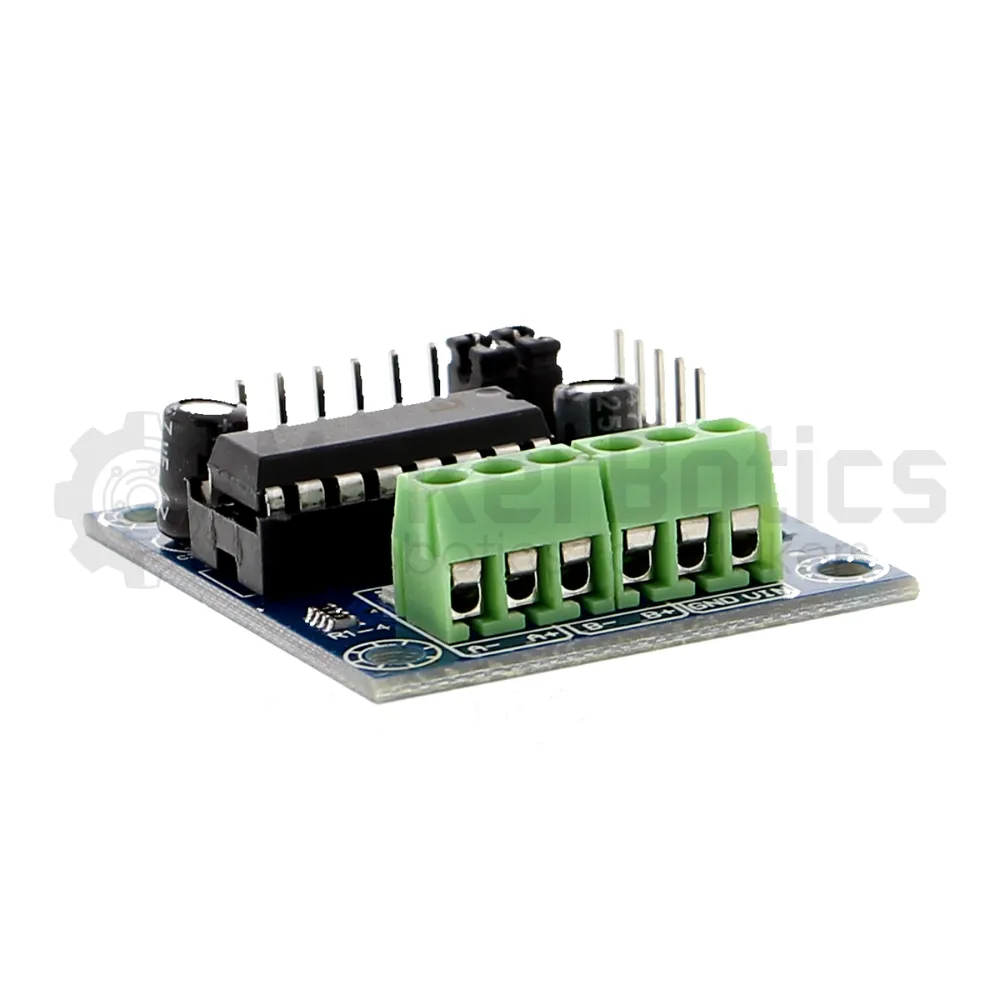

The driver features screw terminals for power input and motor control as well as the popular Dupont headers for control using microcontrollers such as Arduino, Teensy and ESP32 Microcontrollers.
Attach this driver to your projects using 4x M3 screws
Use this motor driver with the following motors:
- 25mm geared Motors
- TT motors
Specifications:
- Replaceable Motor Driver IC
- Input Voltage: DC4.5-25V
- Output Current Capability: 600mA per channel
- Peak Output Current: 1.2A per channel
- Overtemperature Protection: Yes
- Package Type: 16-DIP (Dual In-Line Package)
Pinout and Function
The table below identifies the pins on the motor driver module and their functions.
| IN1 | IN2 | Spinning Direction |
| Low(0) | Low(0) | Motor OFF |
| High(1) | Low(0) | Forward |
| Low(0) | High(1) | Backward |
| High(1) | High(1) | Motor OFF |
Please note:
- Do not exceed 24VDC Operating voltage.
- It is recommended to not exceed more than 600mA continuous operating current and 1.2A peak. Exceeding these values can lead to damage to the motor driver.
