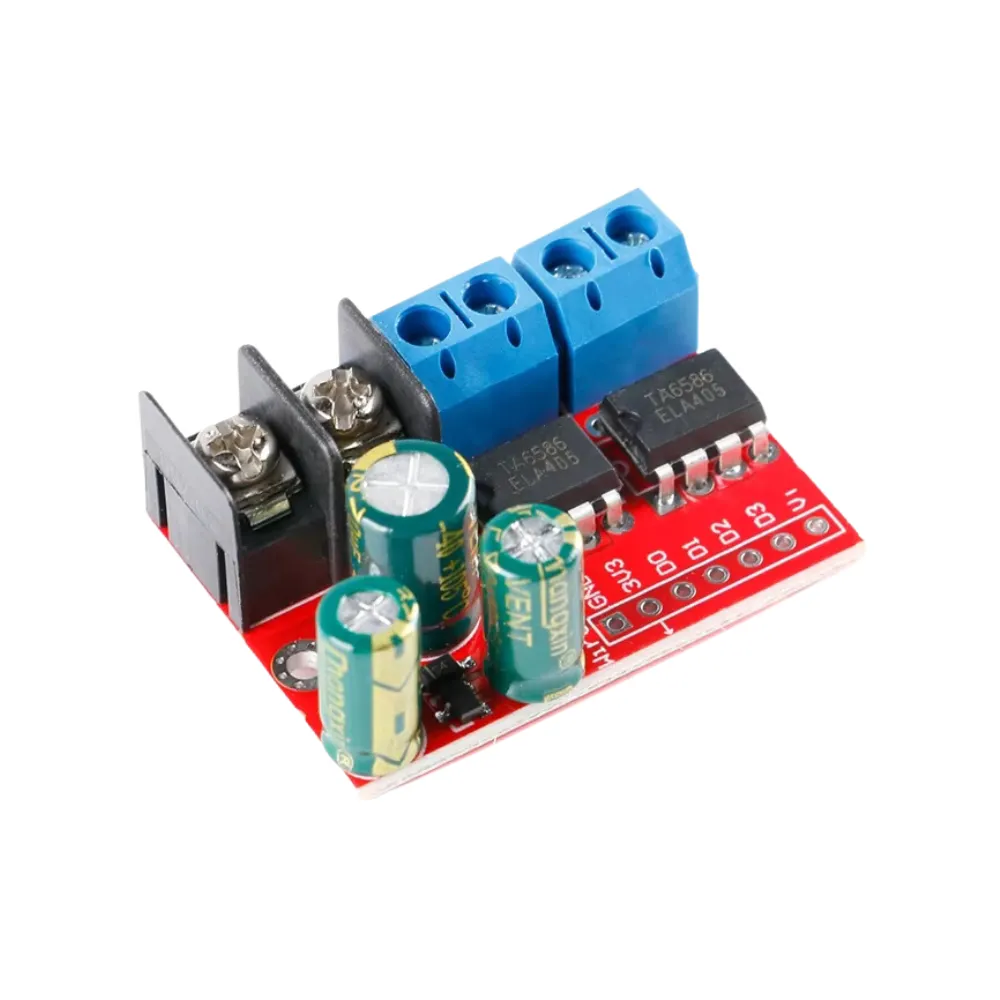

5A Motor Driver – Dual Channel
$9.95 Inc. GST
The 5A Motor Driver – Dual Channel is well suited for a DC motor-driven project demanding high current and a wide voltage input range of between 3-12VDC.
Out of stock
The 5A Motor Driver – Dual Channel is well suited for a DC motor-driven project demanding high current and a wide voltage input range of between 3-12VDC.
This high-current motor driver includes advanced features such as overcurrent protection, current sensing, and short-circuit protection. The driver can easily be interfaced with micro-controllers such as the popular Arduino, ESP32 and Teensy microcontroller and the control method is via two control signal inputs. The driver can work with both 3.3 and 5V signal logic levels.
Use this motor driver to control our MakerBotics selection of motors.
Specifications:
- Input Voltage: 3 ~ 14VDC.
- Driver: TA6586 Motor Driver IC in a H Bridge Configuration.
- Maximum recommended operating current: 5A
- Peak current: 7A.
- PWM capability of up to 25 kHz.
- Control Input Level: 3.3~5VDC.
- Control Mode: PWM or High/Low Logic Level
- Working Duty Cycle: 0 ~100%.
- Board Size (LxWxH): 40mm x 28mm x 20mm.
5A Motor Driver Pinout and Function
The table below identifies the pins on the motor driver module and their functions.
Pin Number | Pin Description | Function |
1 | RPWM | Reverse Level or PWM signal, Active High |
| 2 | LPWM | Forward Level or PWM signal, Active High |
3 | R_EN | Forward Drive Enable Input, Active High/ Low = Disable |
| 4 | L_EN | Reverse Drive Enable Input, Active High/ Low = Disable |
5 | R_IS | Forward Drive, Side current alarm output |
| 6 | L_IS | Reverse Drive, Side current alarm output |
7 | VCC | +5V auxiliary power to microcontroller |
| 8 | GND | Gnd auxiliary power to microcontroller |
Resources
| Weight | 0.05 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
