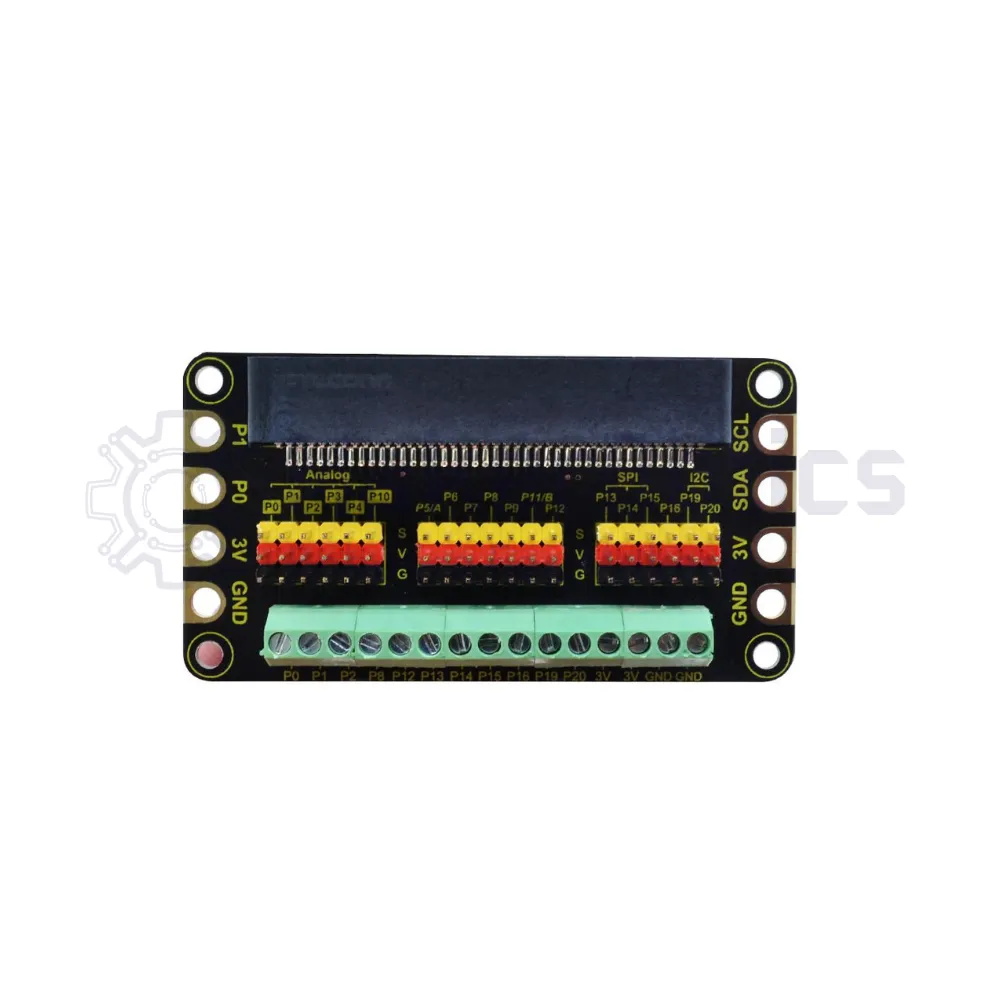

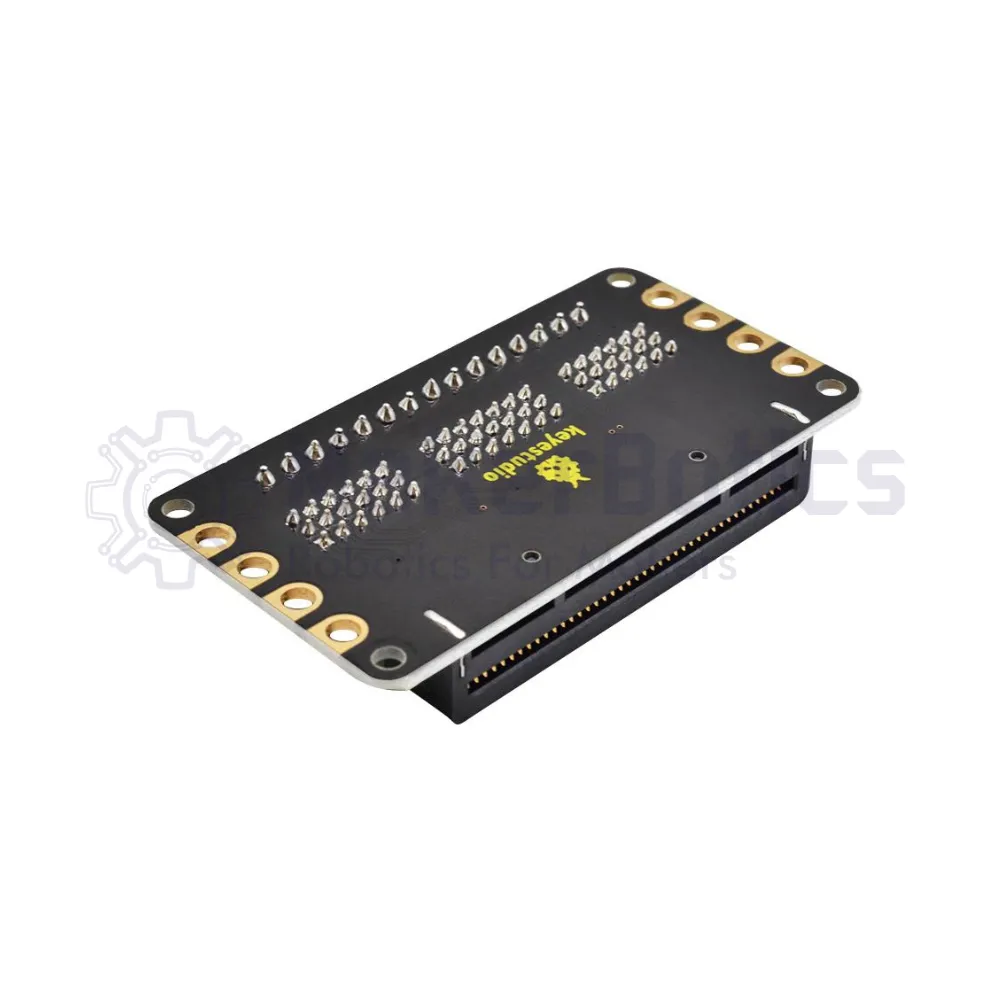

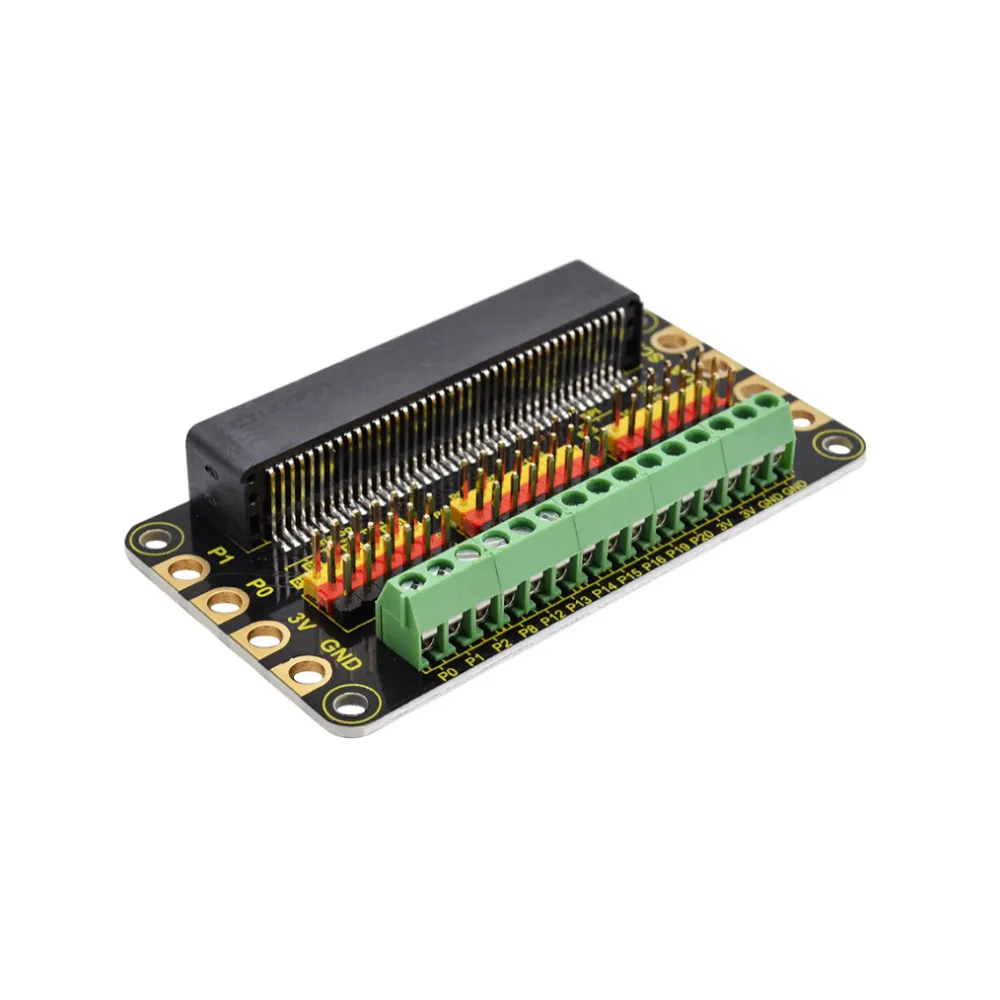

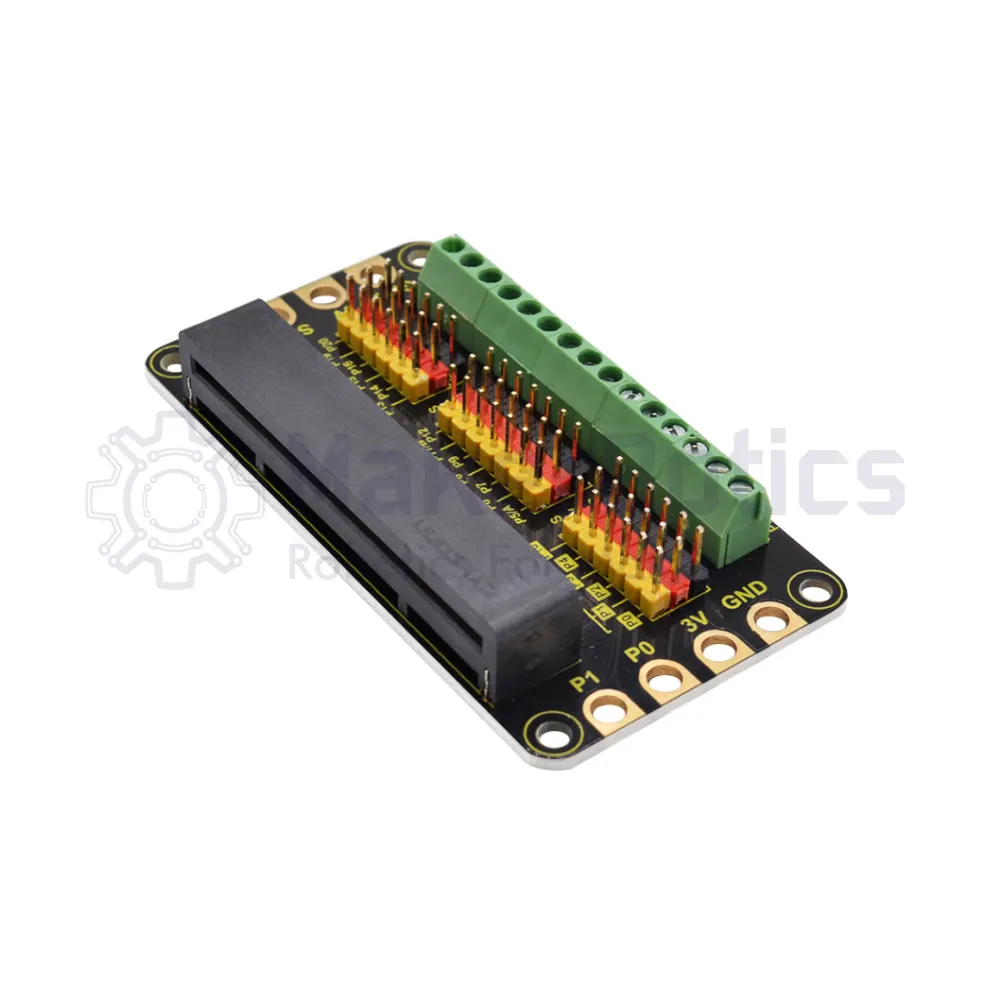

Micro:Bit IO Screw Terminal Expansion Sensor Shield

Specifications:

• Operating voltage: DC3.0-3.3V
• Pin Pitch: 2.54mm
• Green terminal blocks spacing: 3.5mm
• Dimensions: 76mm*41mm*12mm
• Weight:25.5g

3 Sensor Hookup Methods:

• Attach the golden rings on the shield to the sensor modules using alligator clip wires
• Link the sensor modules to the Dupont pin headers on the shield using jumper wires
• Establish a connection between the green terminal blocks on the shield and the sensor modules using lead wires

4 kinds of power supply methods for the shield and micro:bit main board:

• Directly link the battery case to the Micro:bit main board for power supply via the micro:bit just connector
• Utilize alligator clip wires to connect the 3V and GND golden rings for power supply
• Establish a power connection by connecting a selected group of V and G pin headers using jumper wires
• Establish power by connecting the 3V and GND green terminal blocks on the shield with lead wires

Tips and Tricks

• If connecting via the Dupont interface, do not forget to get some Dupont connectors here.
• You can use our cable to interface with this screw terminal shield via the screw terminals.

Uses

Uses for this sensor include but are not limited to:

• STEM micro:bit projects
• Robotics
• Automation

Please Note:

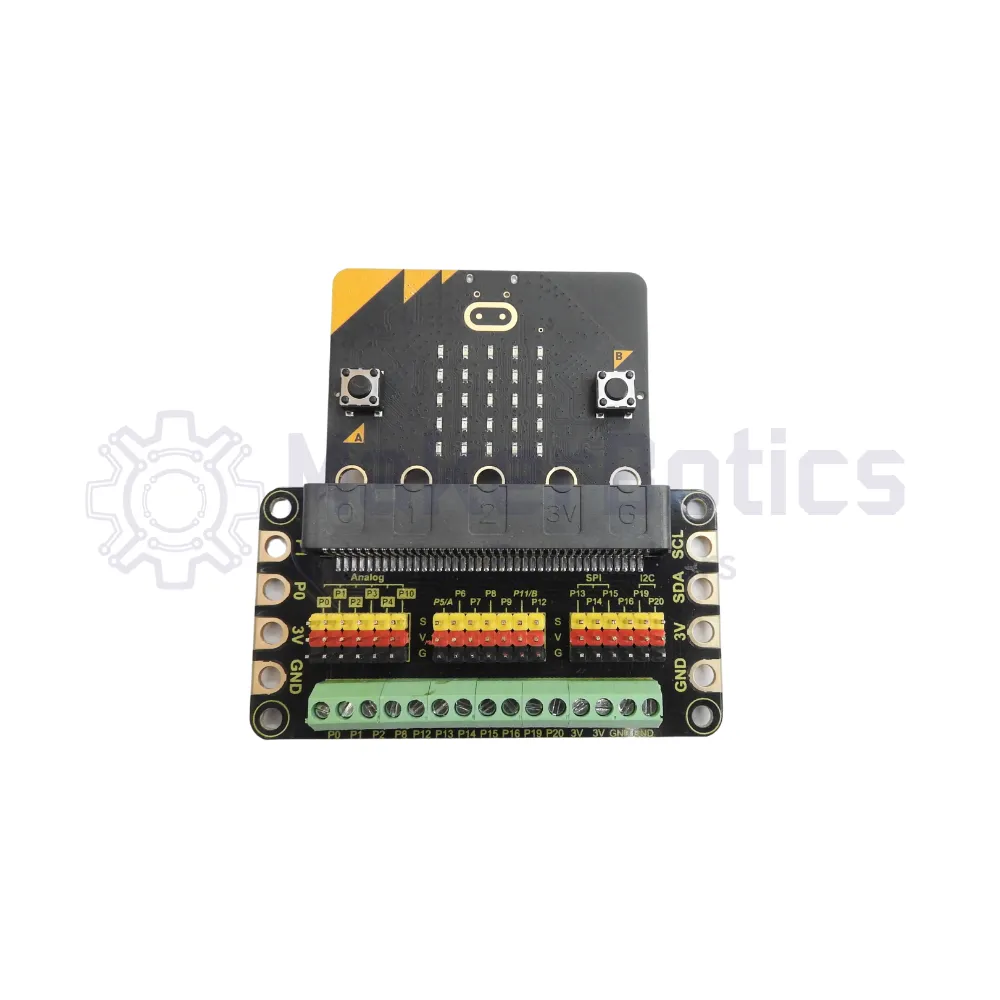

The micro:bit boards are not included, you can find them here.
