Micro:bit Robot:bit Expansion Shield V2
$41.21 Inc. GST
This expansion board is the ultimate expansion board for Micro:bit. Control servos, DC motors and make your projects portable with the built-in 18650 battery shield.
Out of stock
This expansion board is the ultimate expansion board for Micro:bit. Control servos, DC motors and make your projects portable with the built-in 18650 battery shield.
The Robotbit board has a powerful ability to drive DC motors, stepper motors, servos, and onboard buzzer and RGB LEDs. All available I/O from microbit is fully accessible and works with most of the most common electronic modules for microcontrollers such as sensors making it an ideal system to be used in controlling robots and automation projects.
The board is also well supported in the popular Microsoft Makecode software, an interactive and easy-to-use software for micro:bit and STEM.
This Robot Bit expansion board is compatible with both V1 and V2 variants of the micro:bit microcontroller.
Hardware Interface Description

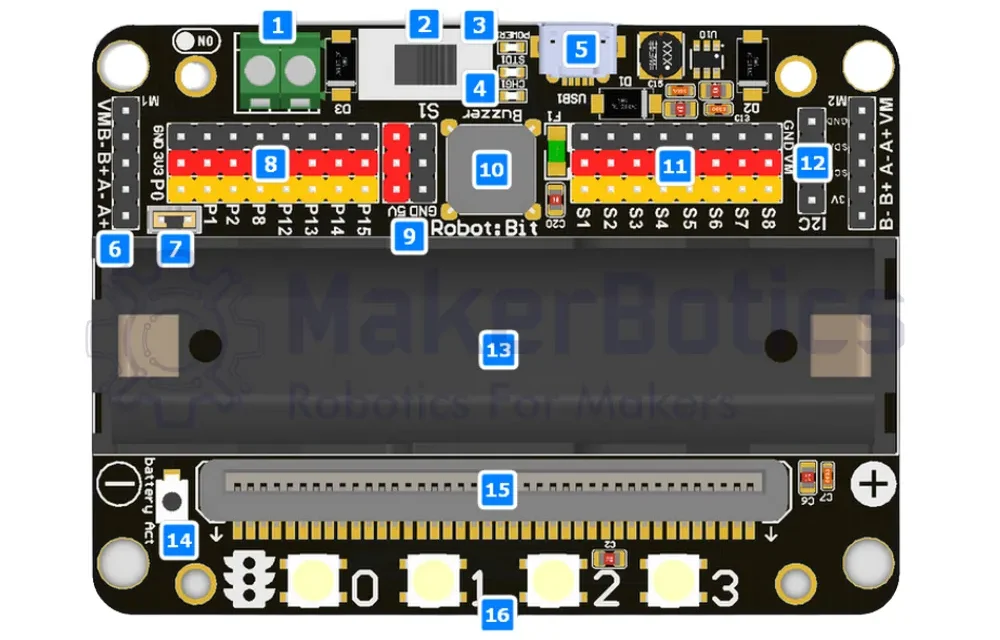

See the images below for highlighted sections
- 5V external power input（with anti-reverse protection）
- Power switch
- Power Indicator
- Battery Indicator
- Micro USB charging port
- 4-channel DC motor / 2-channel stepper motor
- Jumper for buzzer selection
- 8 channel IO（corresponding to Micro:bit P0-P2、P8、P12-P15）
- 5V and GND port
- Buzzer
- 8-channel servo port
- I2C interface (expandable I2C module)
- 18650 battery case
- Battery protection recovery push button
- Micro:bit edge connector
- 4x RGB pixel
- Servo driver (PCA9685)
- 2xDc/Stepper driver (DRV8833)
- KittenBot robot chassis mounting hole
- Standard LEGO hole
Supported software
- Kittenblock(based on Scratch3.0)
- Microsoft Makecode
- Python
Please Note:
- The micro:bit v2.2 modules are not included in this package. They can be purchased here.
Uses
Uses for this sensor include but are not limited to:
- STEM micro:bit projects
- Robotics
- Automation projects
Tips and Tricks:
- Use high-capacity 18650 batteries for increased longevity in your projects.
Please Note:
- 18650 Batteries are not included with the Robot:Bit shield.
| Weight | 0.15 kg |
|---|---|
| Dimensions | 5 × 5 × 9 cm |
