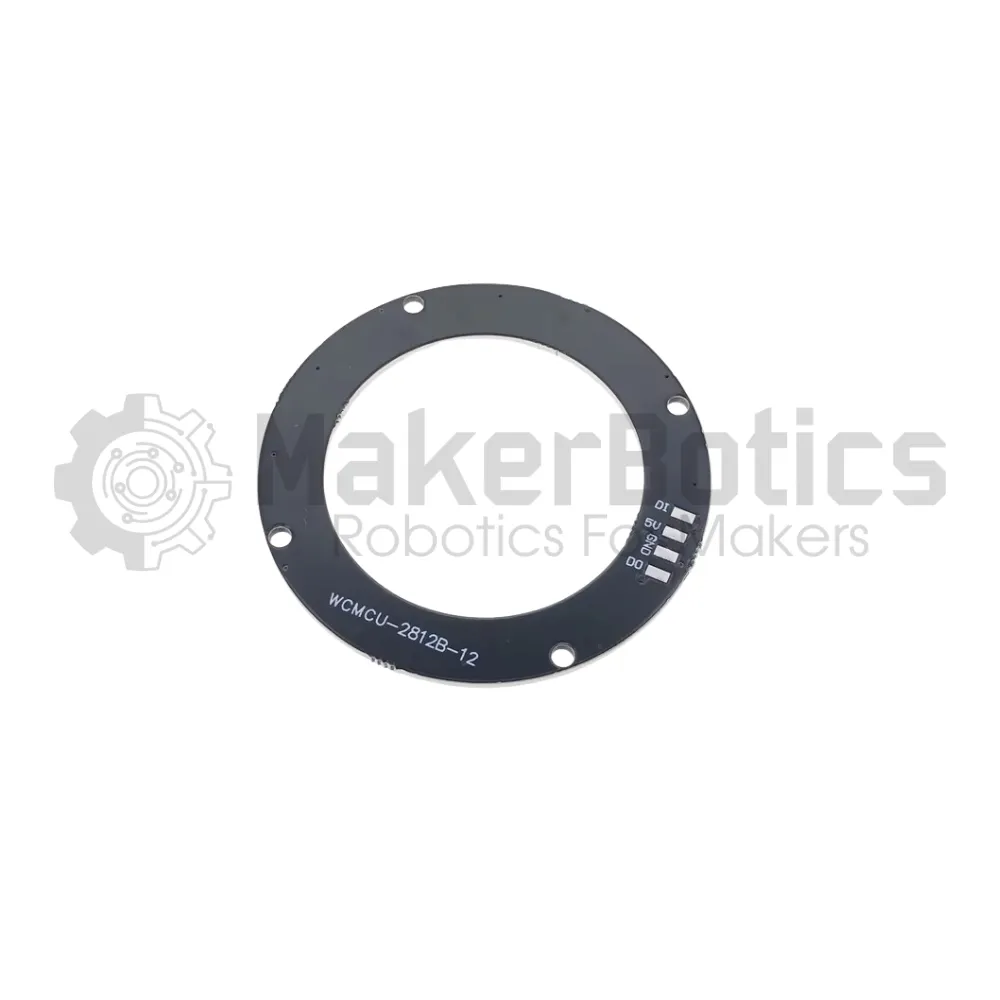

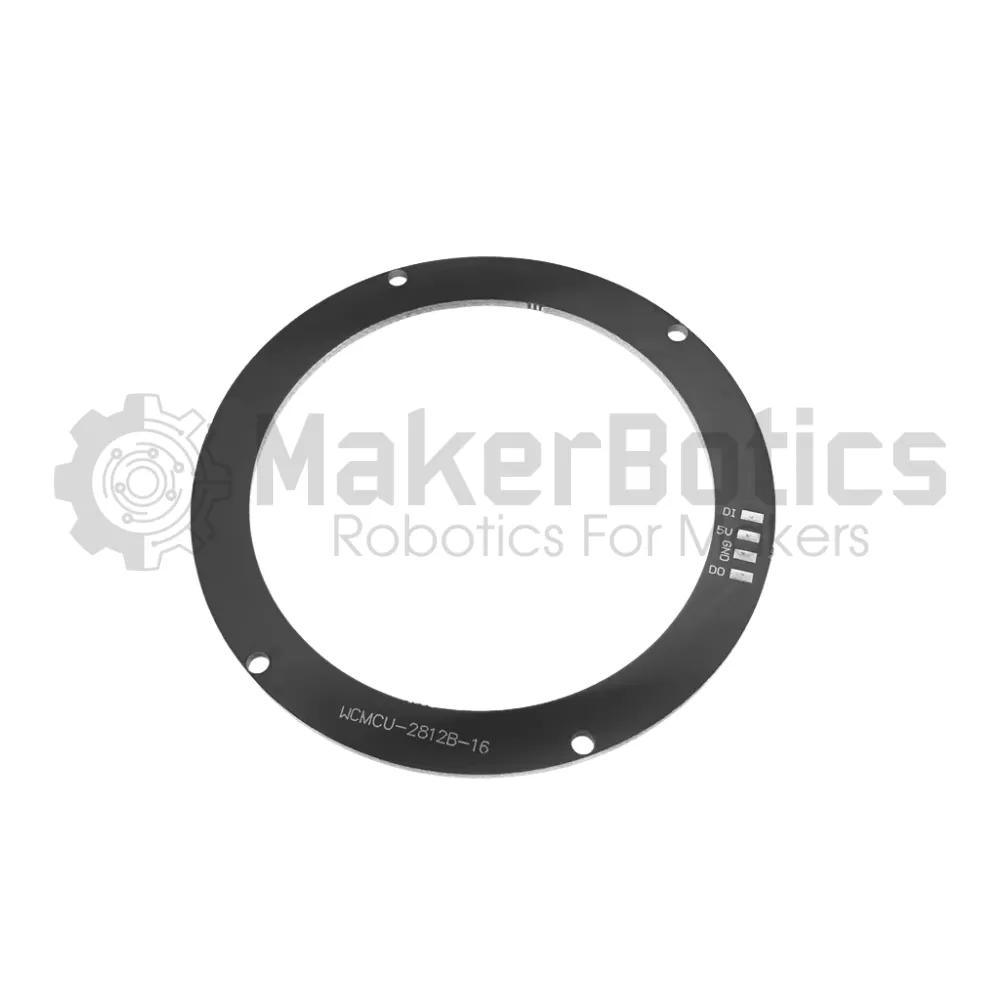

Our Addressable WS2812 5050 RGB Neopixel Rings feature the popular WS2812 5050 RGB LEDs with integrated drivers. Each LED is individually controllable and can produce 256 shades of red, green, and blue, resulting in a staggering total of 16,777,216 possible colour combinations per LED. Available in configurations ranging from a single LED PCB to a full ring with 16 LEDs, these NeoPixel Rings are ideal for creating vibrant, dynamic lighting effects in wearables, custom displays, and interactive designs.

Specifications:

Operating Voltage: 5VDC
Logic level: 3.3VDC and 5VDC
Current consumption: 20mA per LED
Can be daisy-chained

Key Features:

Integrated WS2812 Drivers: Simplifies wiring by combining the LED and driver into a single package, controllable via a single data line. Compatible with popular platforms like Arduino, Raspberry Pi, and more.
Individually Controllable LEDs: Each LED on the ring can be individually controlled, allowing for intricate animations, patterns, and effects. Customize each LED’s colour to suit your creative vision.
256 Shades per Color Channel: Each LED can display 256 levels of red, green, and blue, providing smooth colour gradients and transitions.
Daisy-Chain Capability: Easily connect multiple rings or additional NeoPixel strips for synchronized, expansive lighting across your project.
Flexible Configuration Options: Available in configurations from a single LED PCB to full rings with 1, 3, 7, 8, 12, or 16 LEDs to suit your project needs.
Low Power Consumption: Designed for efficiency, making it perfect for battery-powered or mobile applications.

How to Daisy Chain The Addressable WS2812 5050 RGB Neopixel Rings :

For multi-linked LED modules, connect them as shown in the example below. Connect DI to the microcontroller of choice.

Microcontroller Compatibility:

ESP8266
Teensy
RP2040
ESP32
STM32

Applications:

Wearable Electronics: Create animated lighting effects with precise colour control for clothing, accessories, or cosplay costumes.
Decorative Lighting: Perfect for home decor, holiday displays, or artistic installations with vivid, customizable colour effects.
Custom Displays: Design interactive light displays for games, exhibits, or educational projects with millions of colour possibilities.
Robotics: Add dynamic, individually controllable lighting to robots, drones, or other autonomous devices.
Interactive Projects: Build responsive lighting systems that react to sensors, music, or user inputs, with finely tuned colour transitions.
