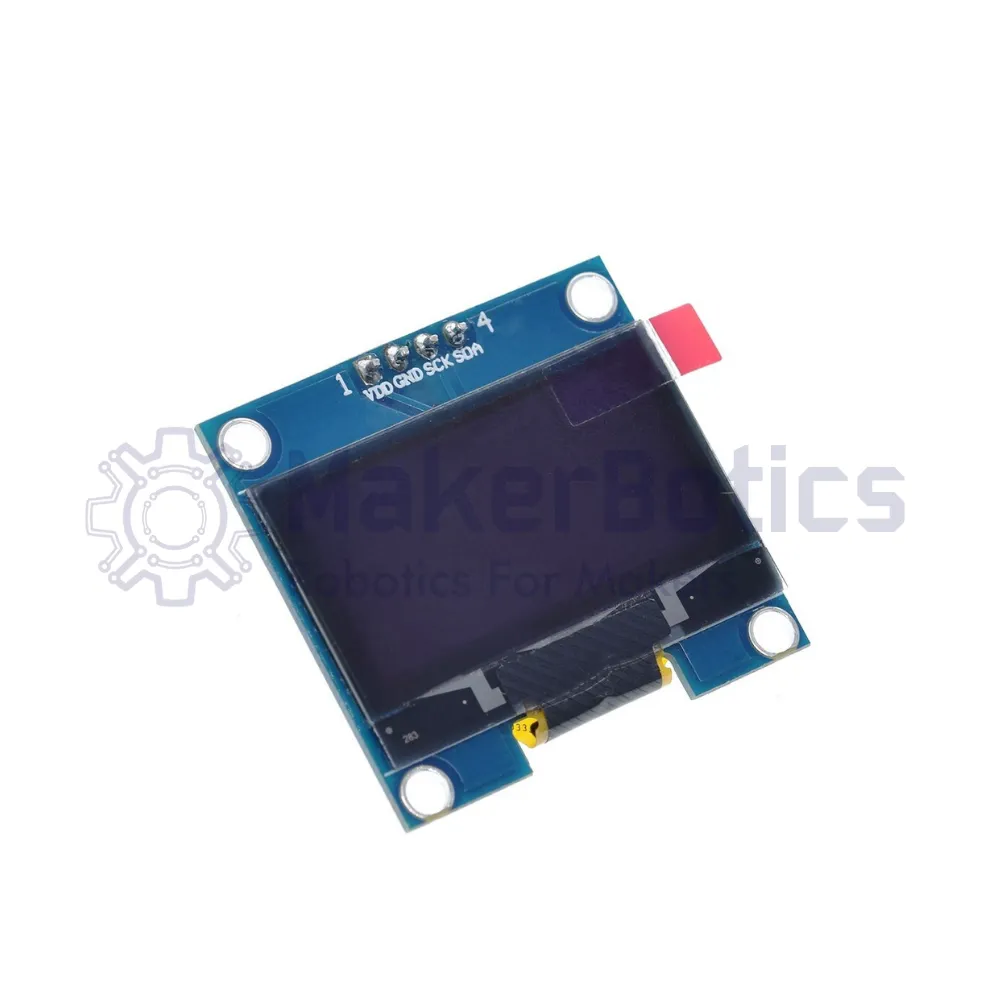

1.3 Inch OLED Blue Display

The 1.3-inch I2C OLED Display Module is a compact and versatile display solution for all your electronic projects. This OLED module features a high-quality 1.3-inch OLED screen with an I2C interface, making it easy to connect to your microcontroller or Arduino board.

With its bright and crisp OLED display, this module provides vivid and clear visual feedback for your projects. The 128×64 pixel resolution allows for detailed graphics and text, making it perfect for displaying data, images, and even simple animations.

The I2C interface simplifies the wiring and control of the display, allowing you to save valuable pins on your microcontroller or Arduino. It also makes it compatible with a wide range of microcontrollers, making it a versatile choice for different projects.

This OLED display module is compact and lightweight, making it suitable for a wide range of applications, such as wearable devices, smart gadgets, IoT devices, and DIY electronics projects.

Easy to use and integrate into your projects, this OLED display module comes with example code and libraries, making it simple to get started. The display is also highly customizable, allowing you to adjust the brightness, contrast, and other display parameters to suit your specific needs. The OLED module comes with unsoldered headers, allowing for projects that require direct soldering to the PCB.

Specification

• Display Technology: OLED
• Display Colour: Blue
• Screen Size: 1.3 inches
• Resolution: 128×64 pixels
• Interface: I2C
• Voltage Input: 3.3V – 5V
• Dimensions: 35mm x 33mm x 4mm (approx.)
• Operating Temperature: -40°C to 70°C

Included

• 1.3 Inch OLED display – pre-soldered
• 4 pin male headers

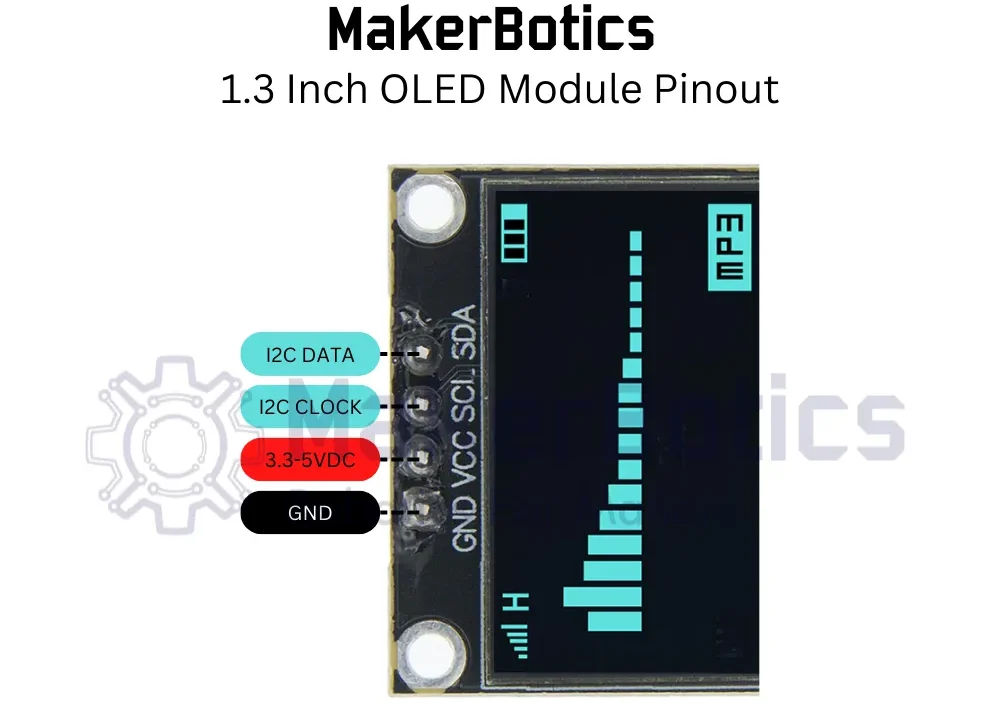

Pinout

Power and Communication

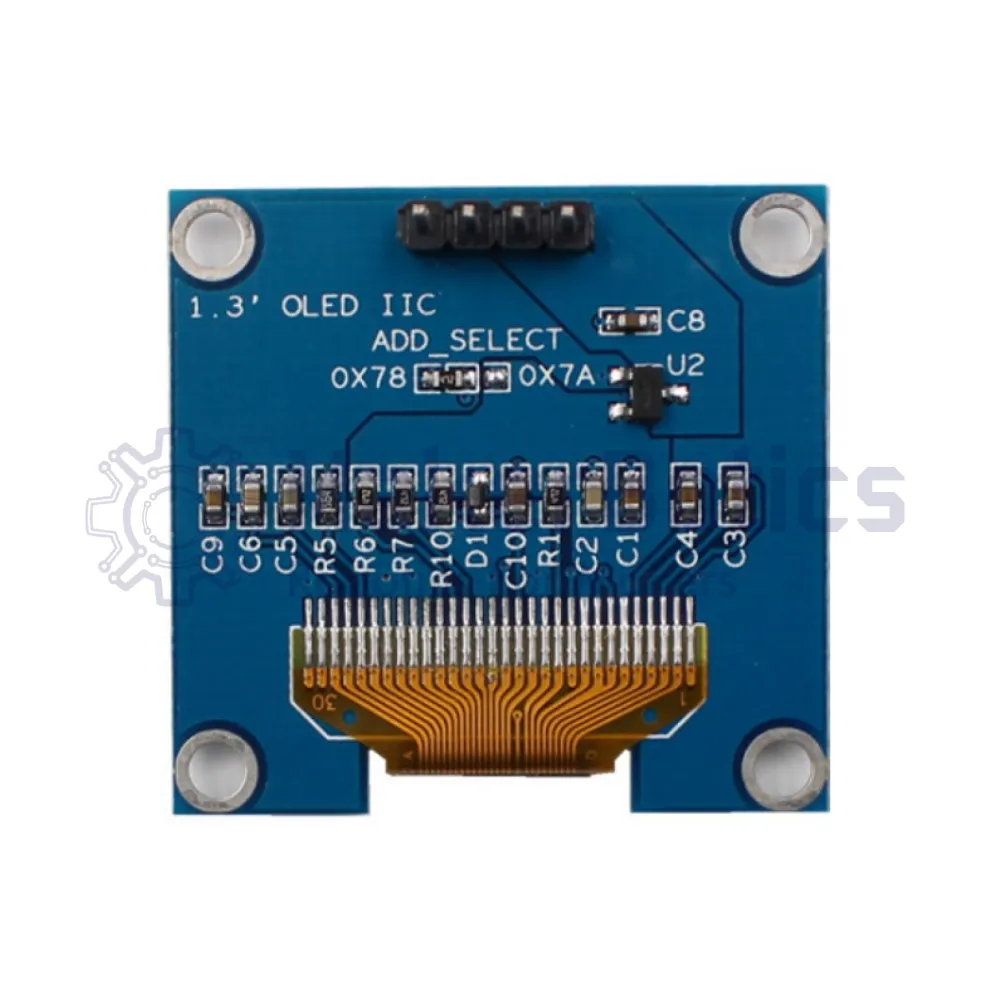

The 1.3-inch OLED display can be interfaced with either 3.3V or 5V compatible microcontrollers such as the ESP32, Teensy or Arduino microcontrollers without a need for a level shifting module. The LCD uses I2C communication and therefore you can use multiple screens on one microcontroller with the help of an I2C multiplexer. The Default I2C address is 0x78. If an I2C multiplexer is not present and you need to add a second screen, you can select 0x7A by moving the “Address selection resistor” from the 0x78 location to the 0x7A location on the second screen.

Uses:

• Telemetry display
• Home automation
• Human-machine interfaces

Please Note:

• The OLED module comes with soldered headers for your convenience.

Resources:

To control the OLED display, install the following libraries in the Arduino IDE

• adafruit_SH1106.h
• adafruit_GFX.h
