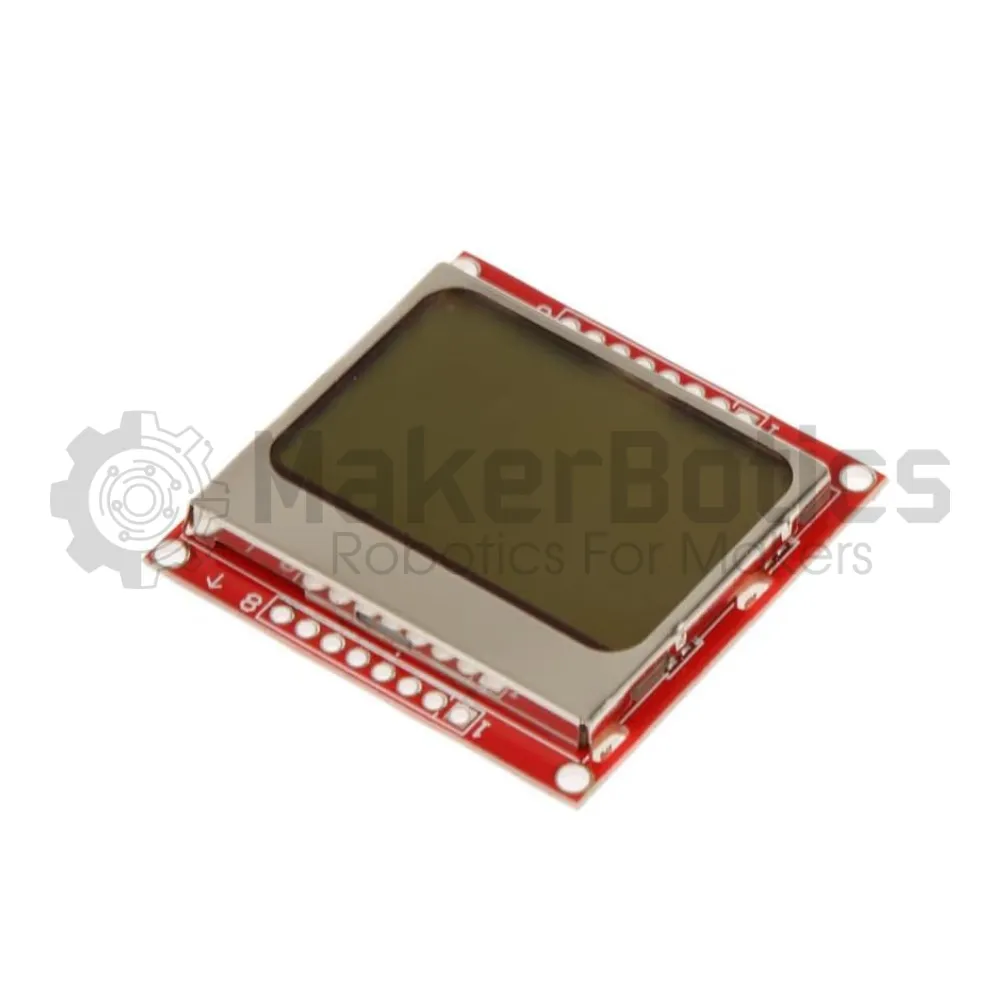

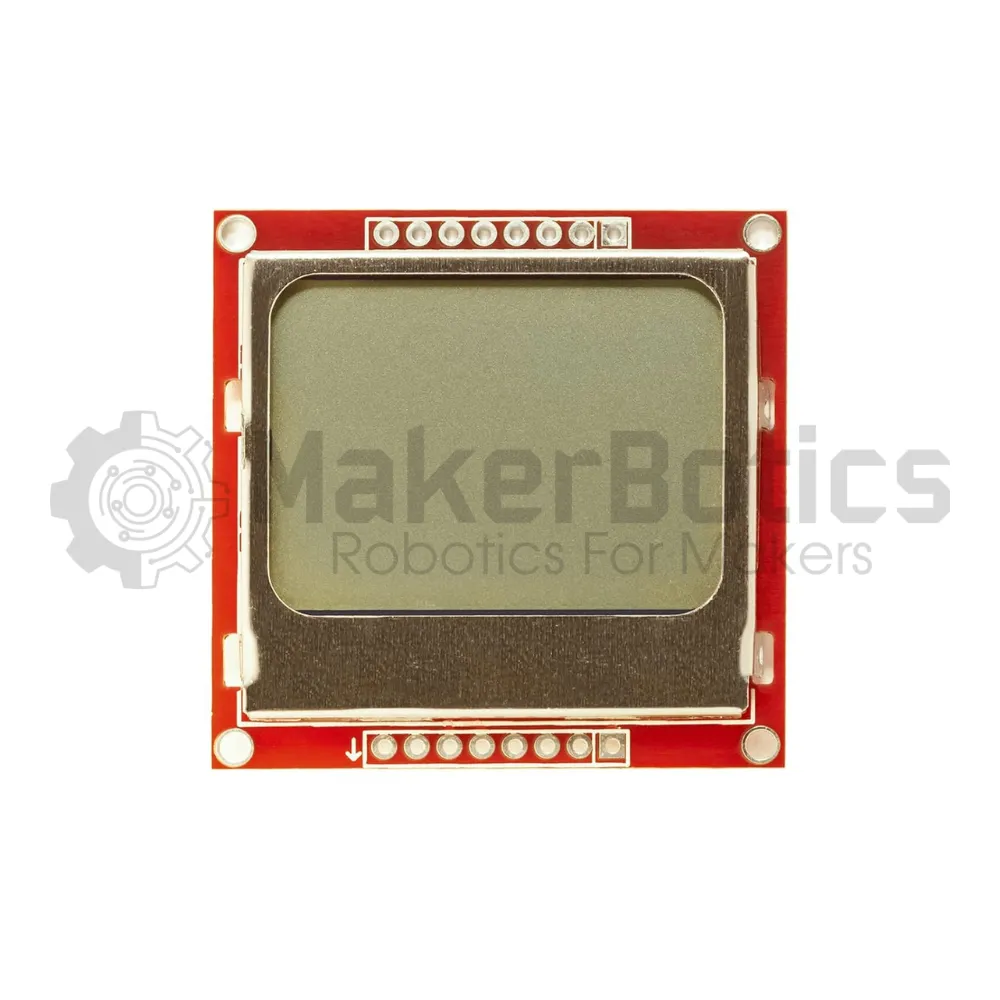

Nokia 5110 Graphic LCD Display Module

Give your projects a visual upgrade with the Nokia 5110 Graphic LCD Module. This display features an 84×48 pixel graphic LCD which originally used in Nokia 5110 mobile phones. This compact, energy-efficient module has become a popular choice among hobbyists, makers, and engineers for its simplicity, sharp resolution, and low power consumption. Perfect for displaying text, basic animations, or simple graphics, it’s well-suited for various microcontroller projects, including Arduino, Raspberry Pi, and ESP8266 systems. The module’s easy-to-use SPI interface ensures smooth integration with most development boards. Additionally, its affordability and extensive community support make it an excellent choice for both beginners and experienced developers.

Looking for other displays? browse our Makerbotics Selection of screens and displays.

Technical Specifications

• Display Technology: Dot Matrix LCD
• MCU Interface: SPI
• Screen Size: 1.5 Inch Across
• Resolution: 84×48 pixels
• Operating Voltage: 3.3V
• Operating Current: 50mA max
• Viewing Angle: 180°

Power and Communication

This display module uses 3.3V logic and therefore requires a logic level shifter to interface with controllers that work on 5V logic. For example, If you are using our ESP8266, ESP32, STM32, RP2040 and Teensy microcontrollers, you can use the screen directly with the microcontroller. No logic level shifter will be required here.

If you wish to interface with microcontrollers that work on a 5V logic level,  such as an Arduino, you will require a logic level shifter.

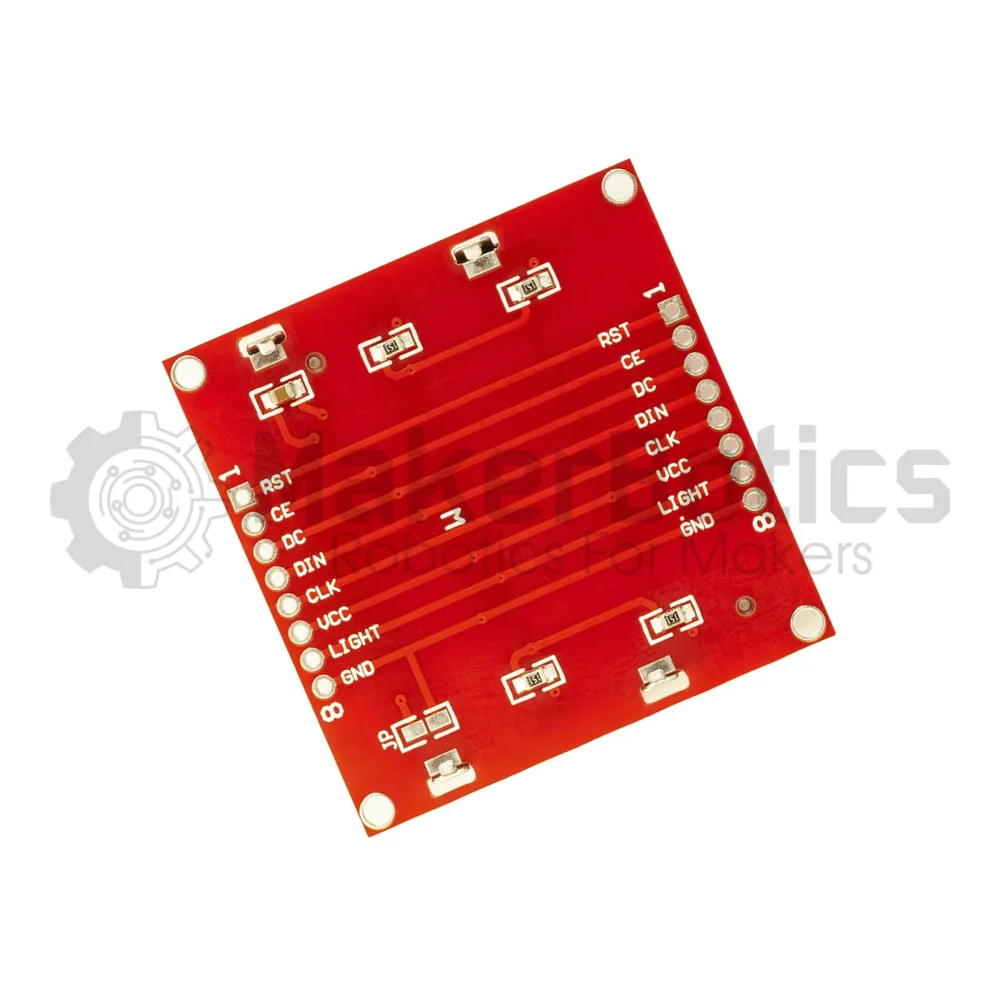

Pinout Description

Resources

• Arduino Library

Uses:

• Telemetry display
• Home automation
• Human-machine interfaces

Please Note:

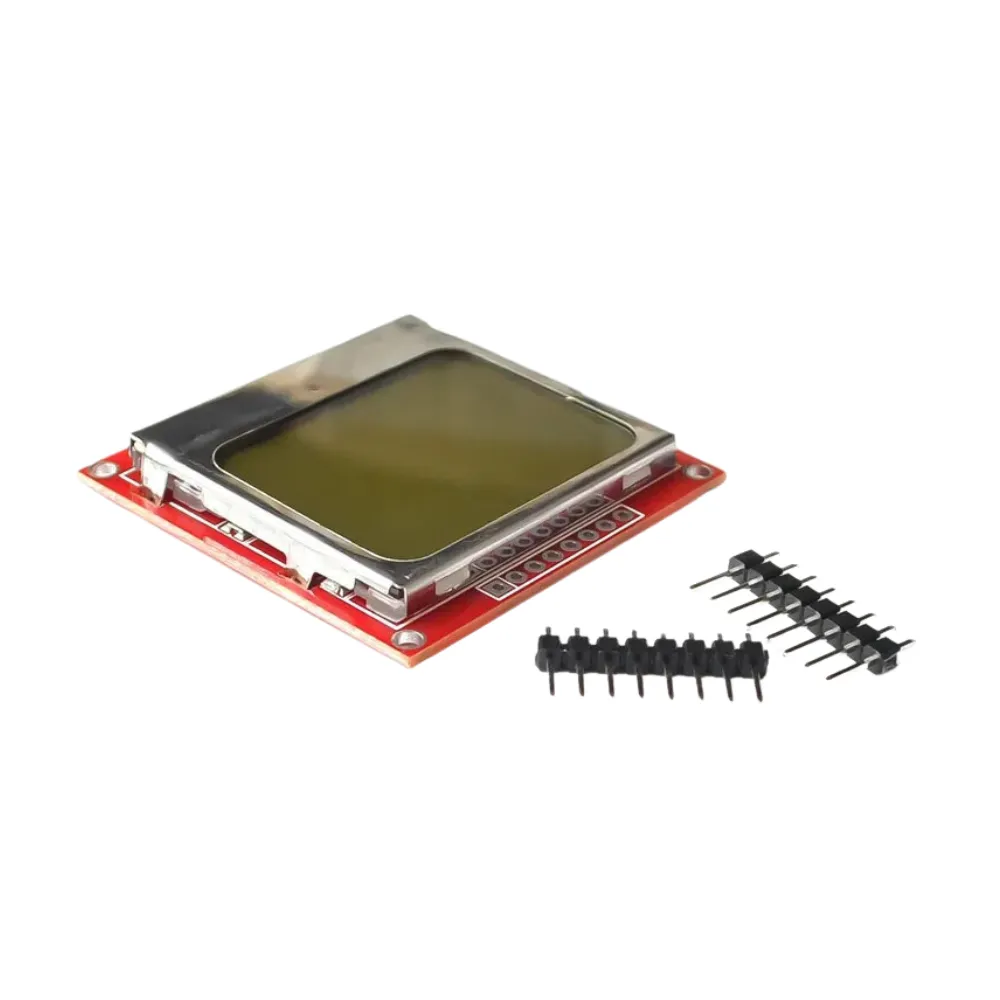

• The Nokia 5110 LCD Display Module includes a set of headers (unsoldered)
