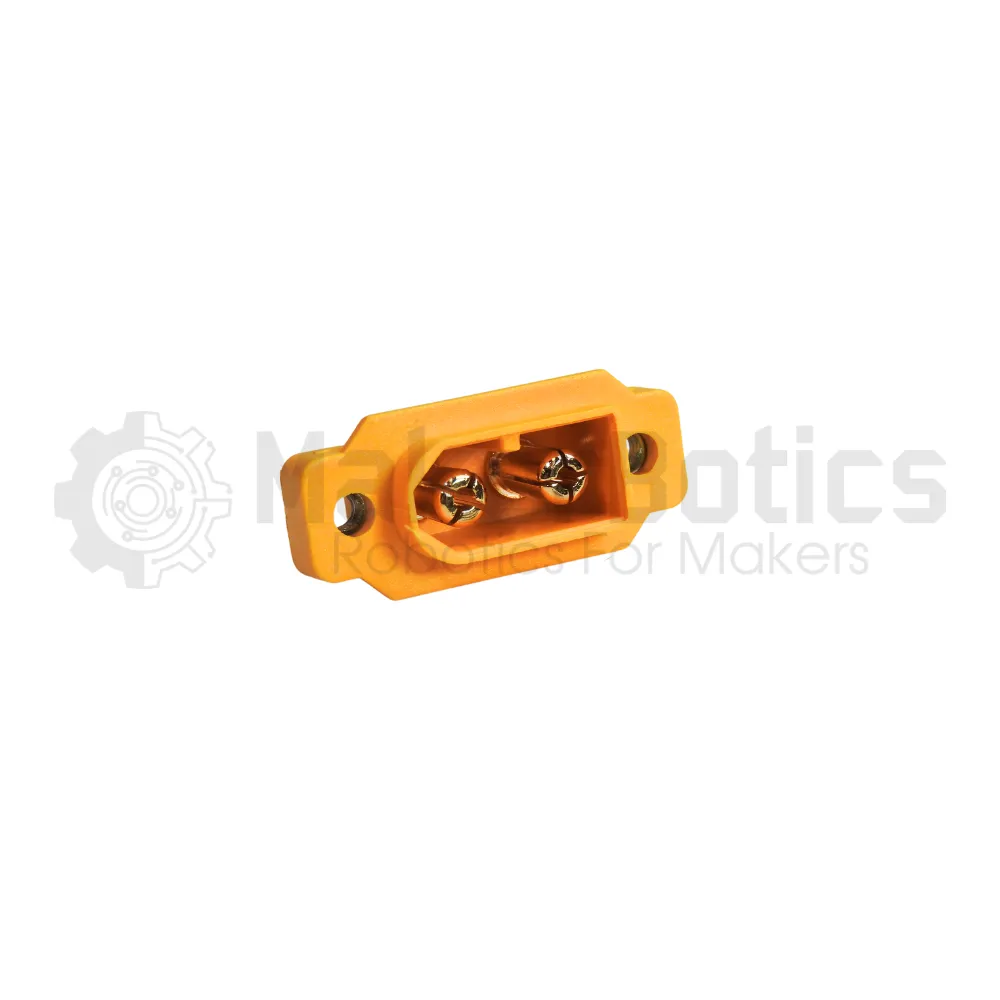

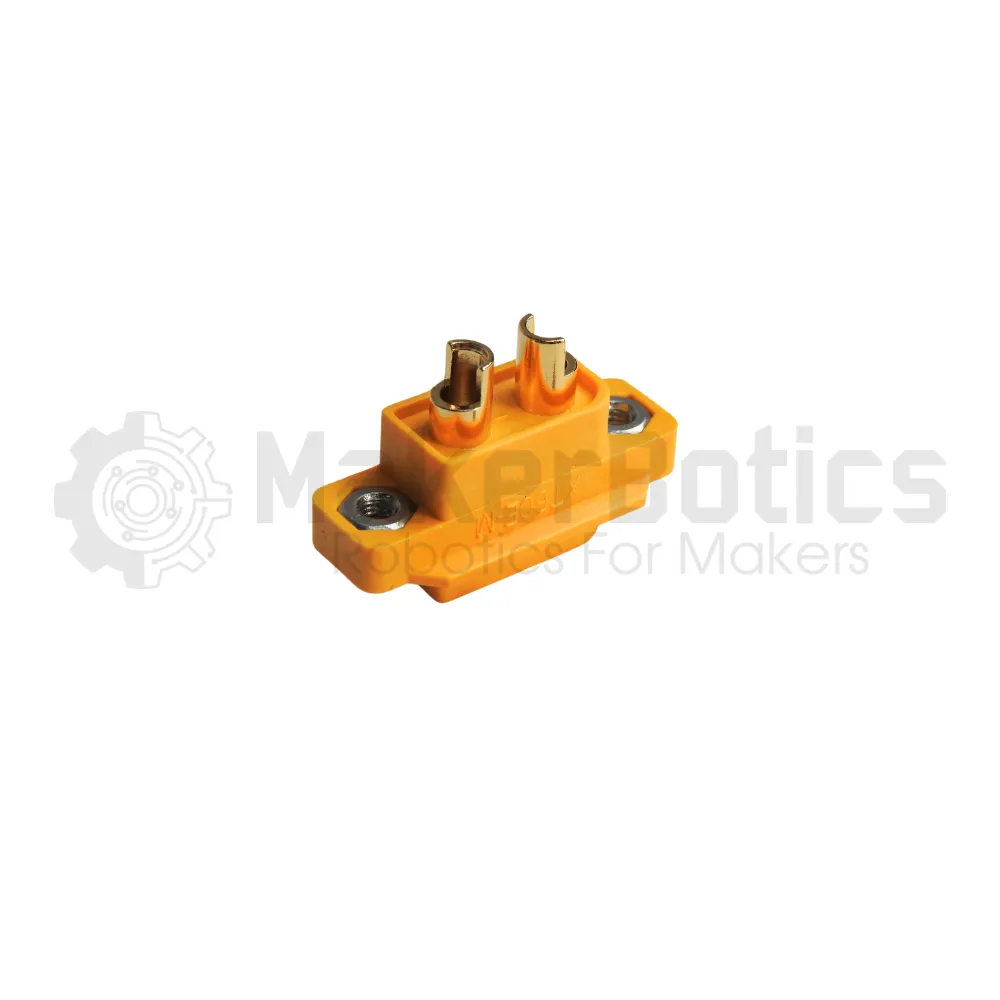

AMASS Panel Mount XT60E-M High Current DC Connector – Male
$2.36 Inc. GST
The AMASS panel mount XT60E-M connectors are excellent DC power connections requiring high current carrying capability up to 60A DC with the added capability of being panel mounted.
Out of stock
The AMASS panel mount XT60E-M connectors are excellent DC power connections requiring high current carrying capability up to 60A DC with the added capability of being panel mounted. This connector is widely used in robotics, hobbyist applications as well as professional applications, cementing its reputation as a versatile and reliable connector.
XT60E-M connectors are primarily constructed from durable nylon for the connector housing and feature conductive elements made of gold-plated brass. The nylon provides heat resistance and durability, while the gold plating ensures reliable conductivity and corrosion prevention. This combination makes XT60E-M connectors well-suited for applications involving high-current DC power.
This connector mates readily with an XT60 Female connector.
Specifications:
- Recommended cable gauge: 12AWG
- Housing material: Heat-resistant Nylon
- Rated Current: 20A DC
- Peak Current: 40A DC
- Maximum Voltage: 500VDC
- Number of Pins: 2
- Mounting Style: Panel Mount
Included
- 1x AMASS XT60E-M Panel Mount Connector (Male)
- 2x M3 Mounting Screws

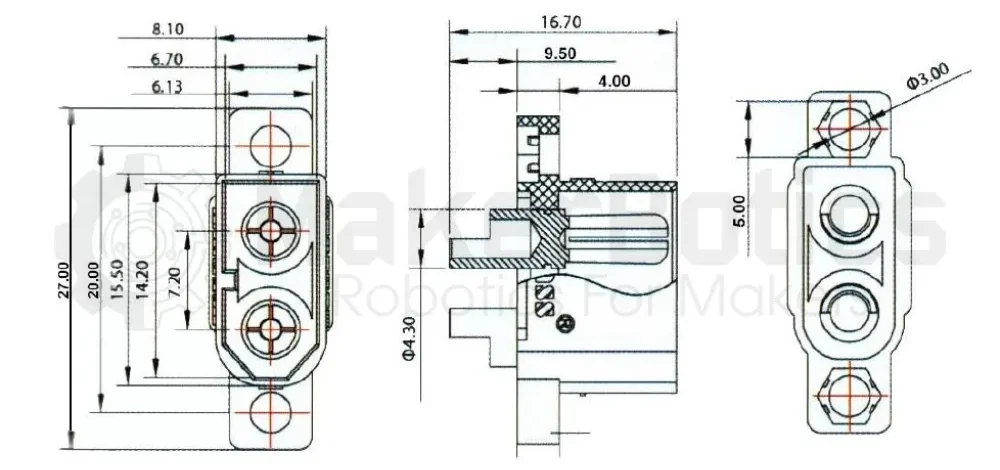

Engineering Drawings
Tips and Tricks
- Don’t forget to add some heat shrink over the soldered connectors for added insulation!
Please Note:
- These connectors are unsoldered. For pre-soldered connectors with cable, please see them linked here.
| Weight | 0.05 kg |
|---|---|
| Dimensions | 3 × 2 × 2 cm |
