AMASS MT60 60A High Current DC Connector (Male/Female Pair)

AMASS MT60 connectors are excellent DC power connections requiring high current carrying capability up to 60A DC in a compact package. This connector is widely used in robotics, hobbyist applications as well as professional applications, cementing its reputation as a versatile and reliable connector. The connectors are a 3-pin connector which makes them a must-have connector for brushless drone motors or connections requiring a third pin as an interlock. These connectors come with a protective sheath provided to protect your solder joints.

MT60 connectors are primarily constructed from durable nylon for the connector housing and feature conductive elements made of gold-plated brass. The nylon provides heat resistance and durability, while the gold plating ensures reliable conductivity and corrosion prevention. This combination makes XT60 connectors well-suited for applications involving high-current DC power.

Specifications

• Maximum recommended cable gauge: 12AWG
• Housing material: Heat-resistant Nylon
• Rated Current: 30A
• Peak Current: 60A
• Maximum Voltage: 500VDC
• Number of Pins: 3

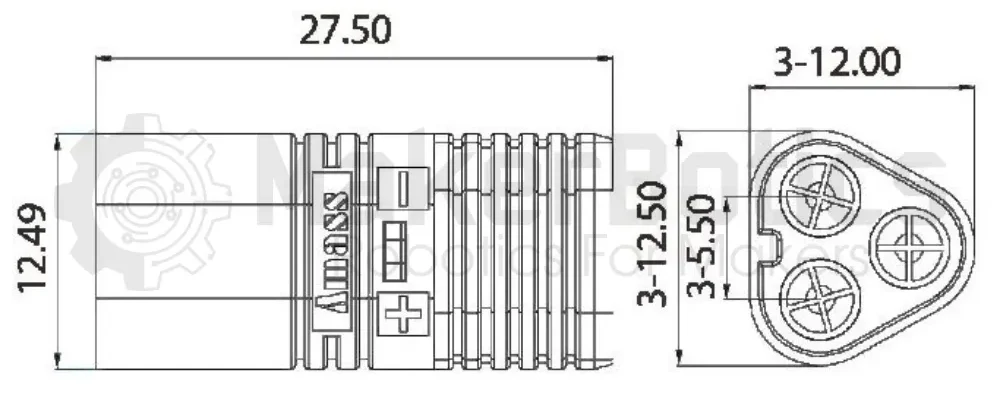

Connector Dimensions – Male

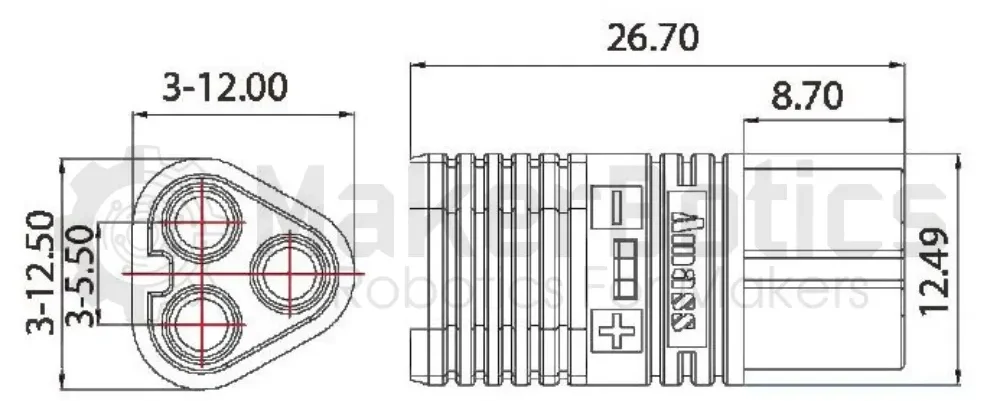

Connector Dimensions – Female

Included

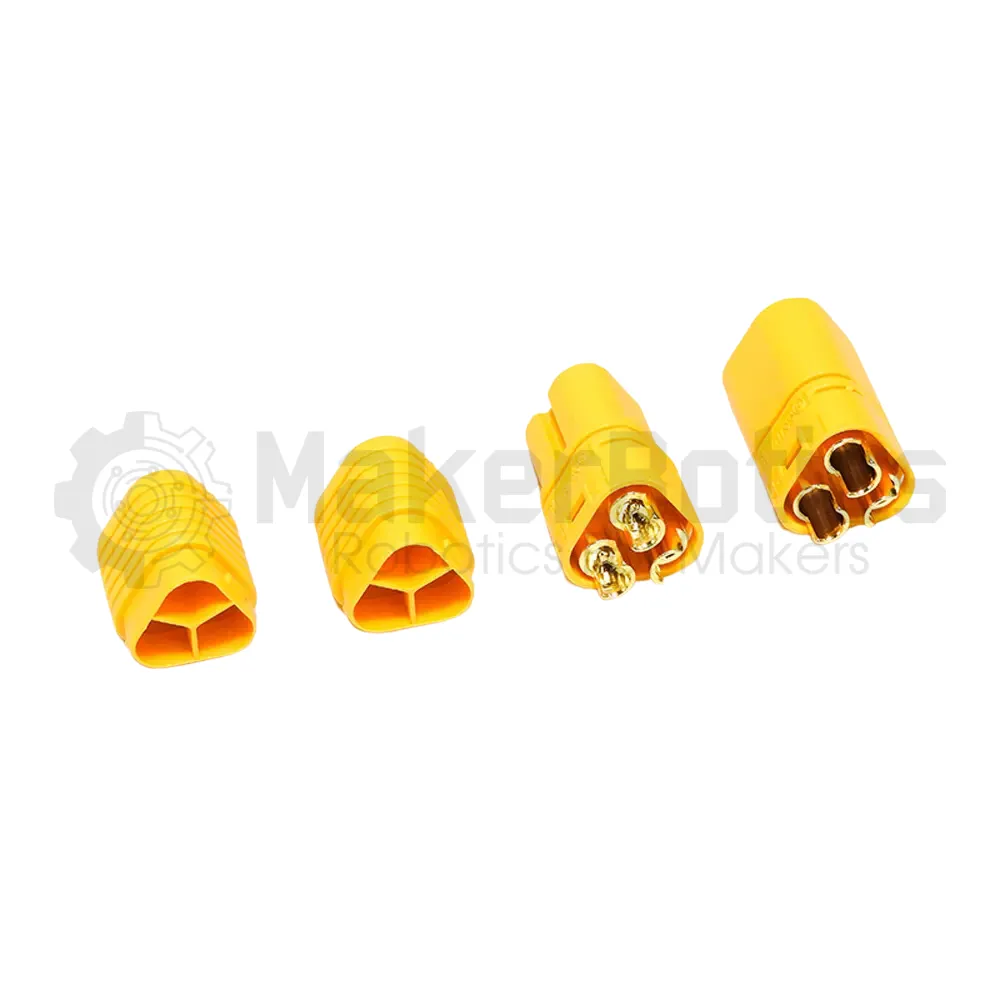

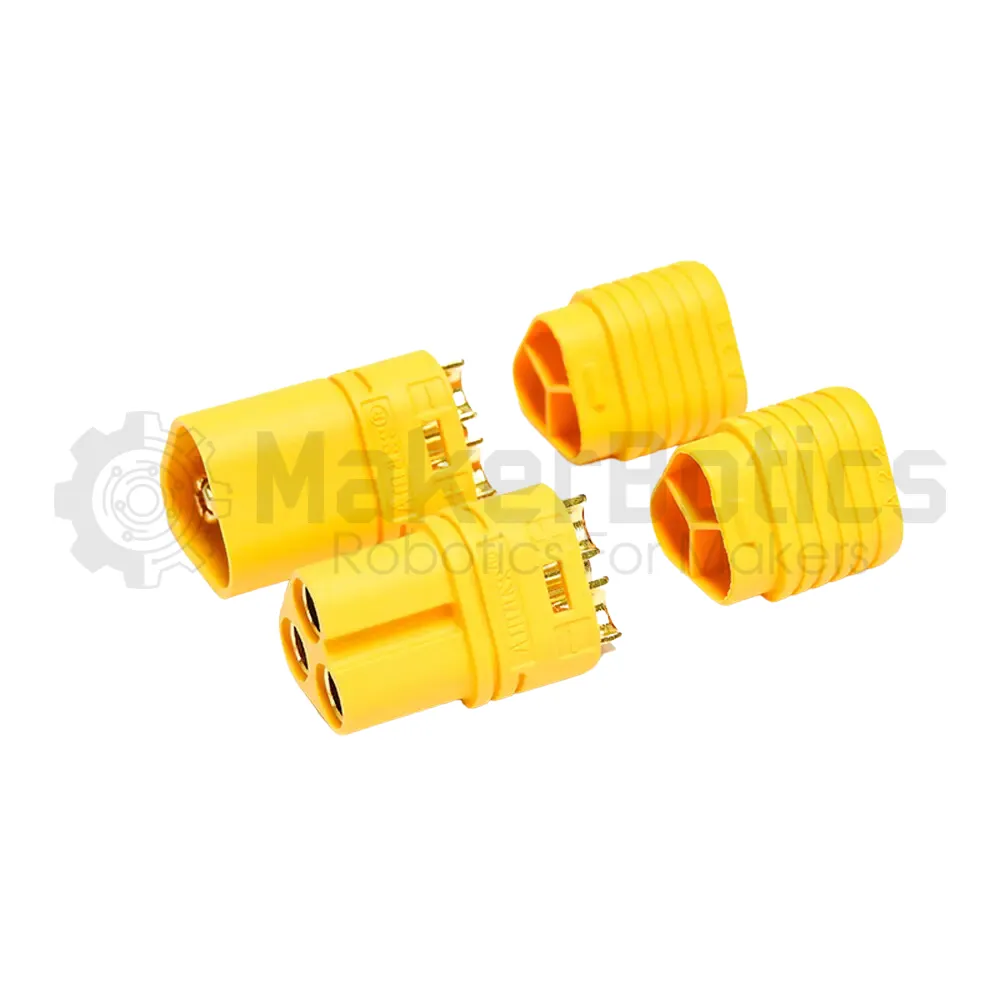

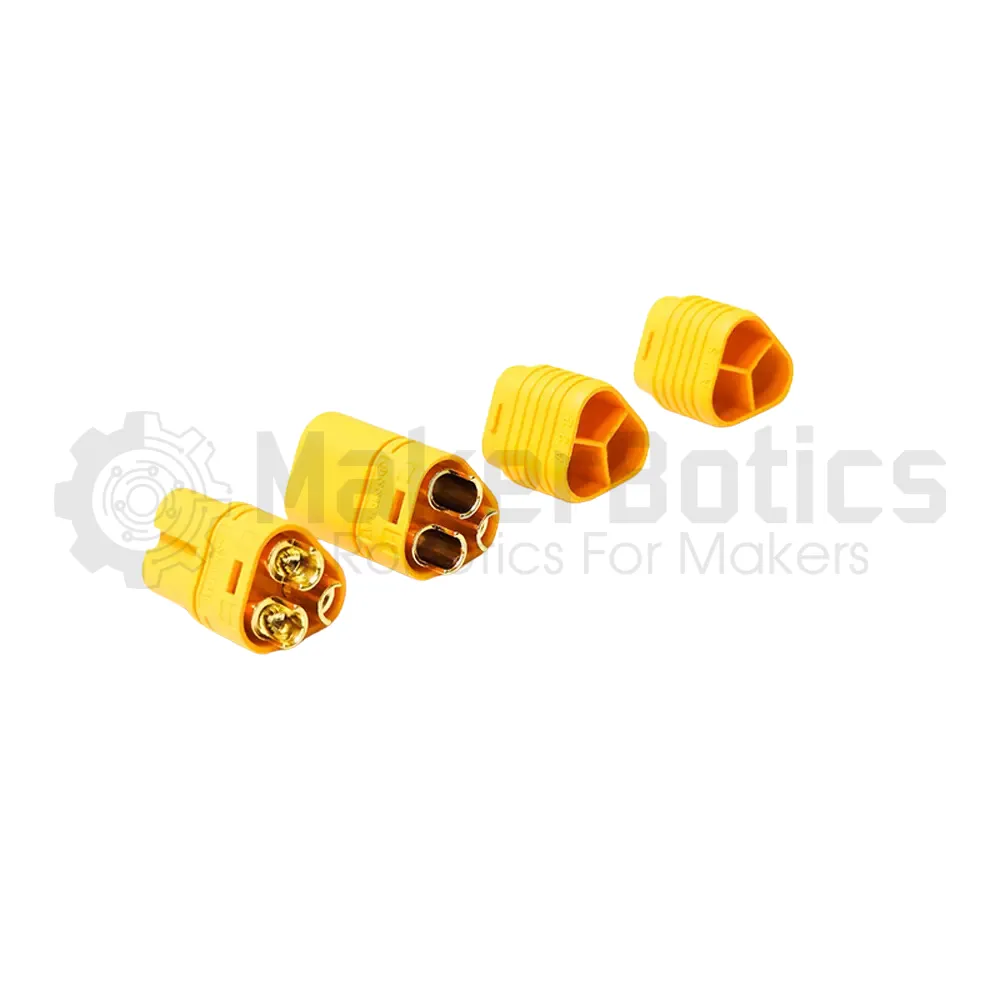

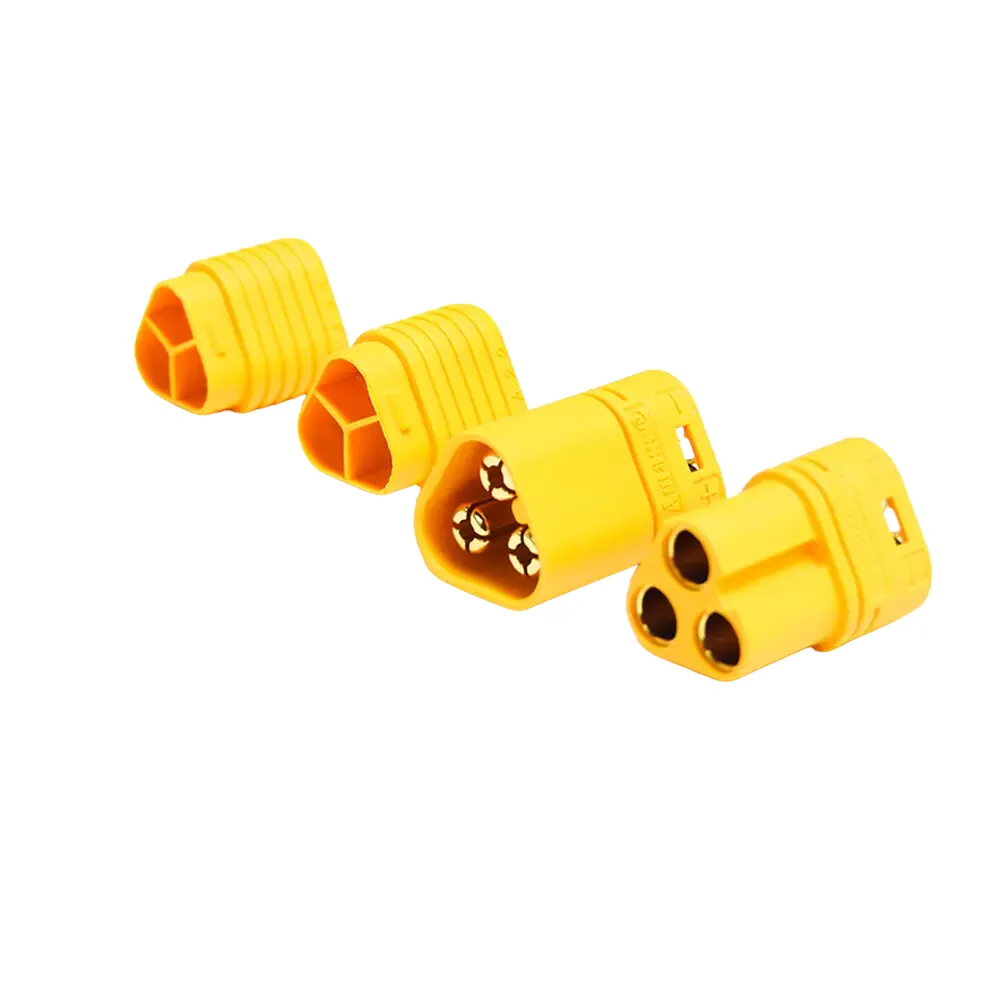

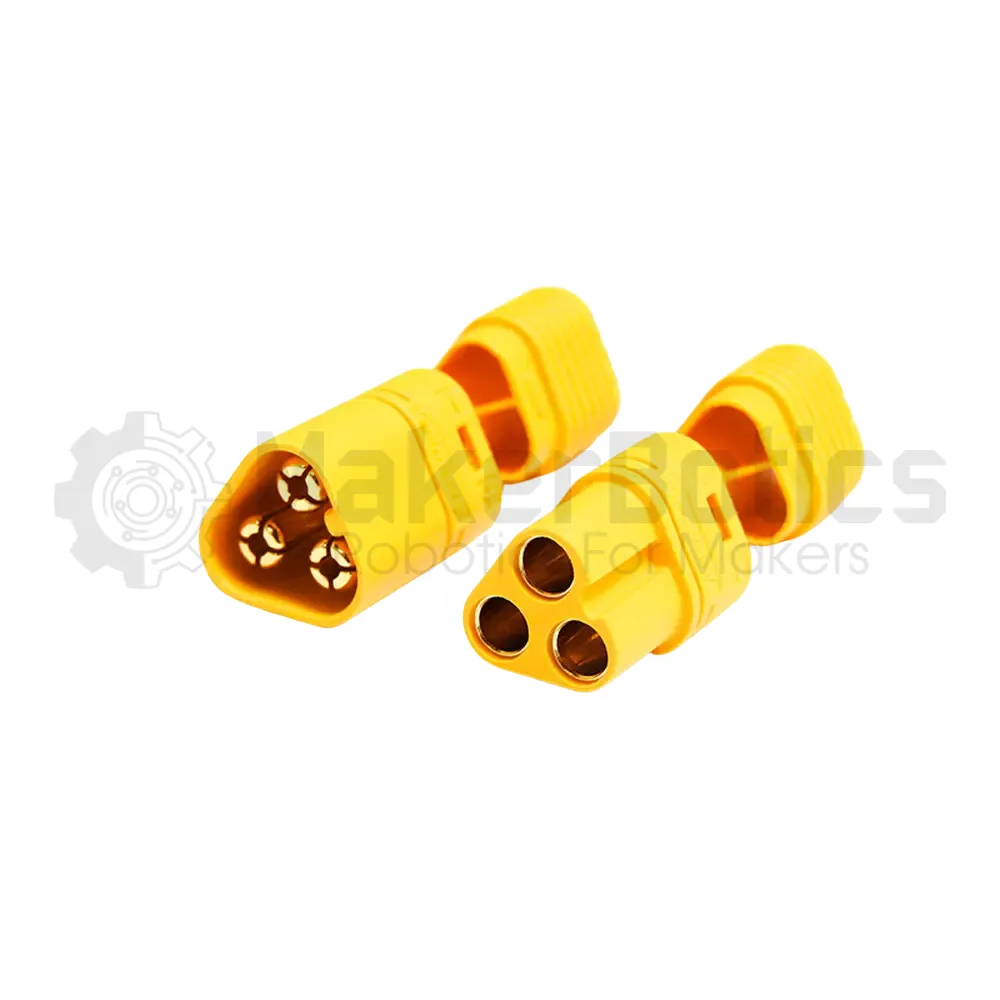

• 1x AMASS MT60 Connector (Male) with Sheath
• 1x AMASS MT60 Connector (Female) with Sheath

Tips and Tricks

• Don’t forget to add some heat shrink over the soldered connectors for added insulation!
• Use these 3 pin connectors with your brushless motors.

Please Note:

• These connectors are unsoldered.
