IP66 Waterproof Connectors with 150mm leads – 2-6 Pin

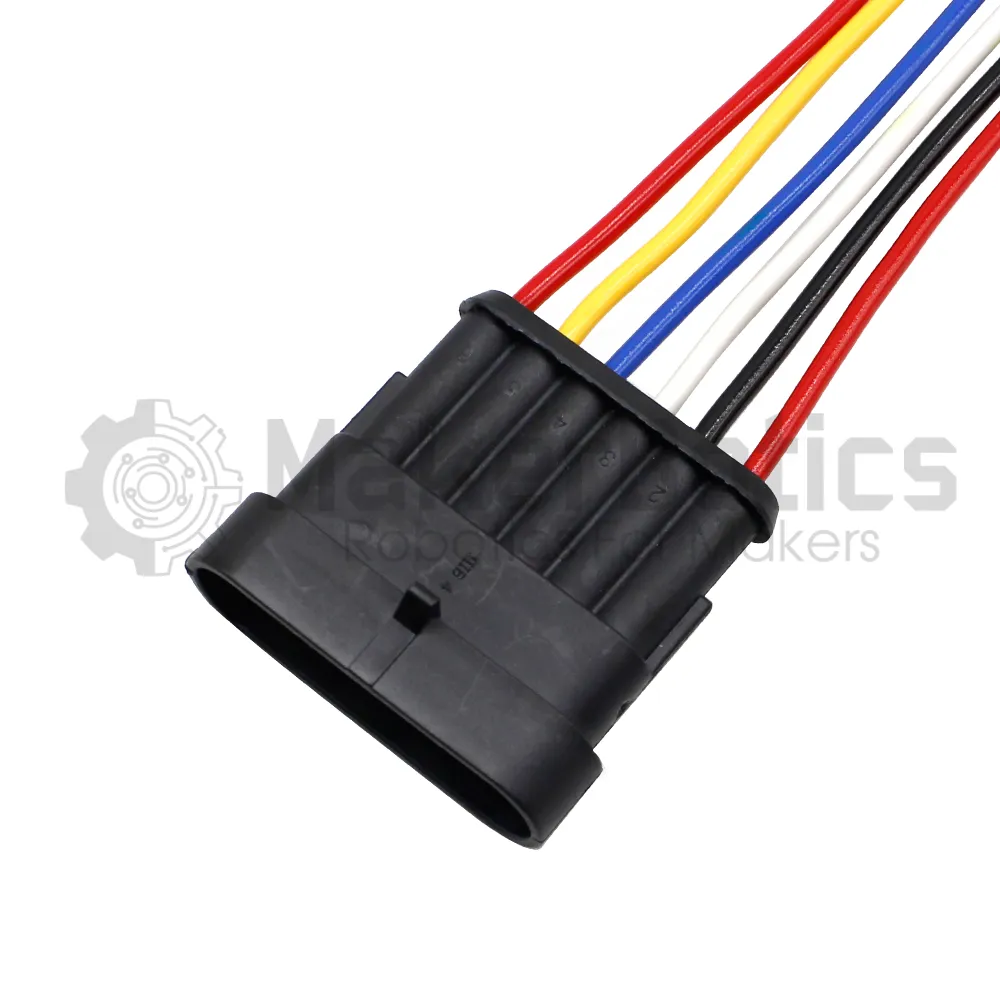

Our IP66 Waterproof Connectors are an excellent choice for those looking to add connections in environments where water and dust ingress would cause damage or electrical issues to your electrical components. These connectors are supplied as a male/female pair each with high-quality 150mm long leads preattached for your convenience. The colour-coded leads make it easy to identify connections.  The male and female pair have an integrated clip and clip receptacle making for an easy and secure connection.

Key Features Of The IP66 Waterproof Connectors :

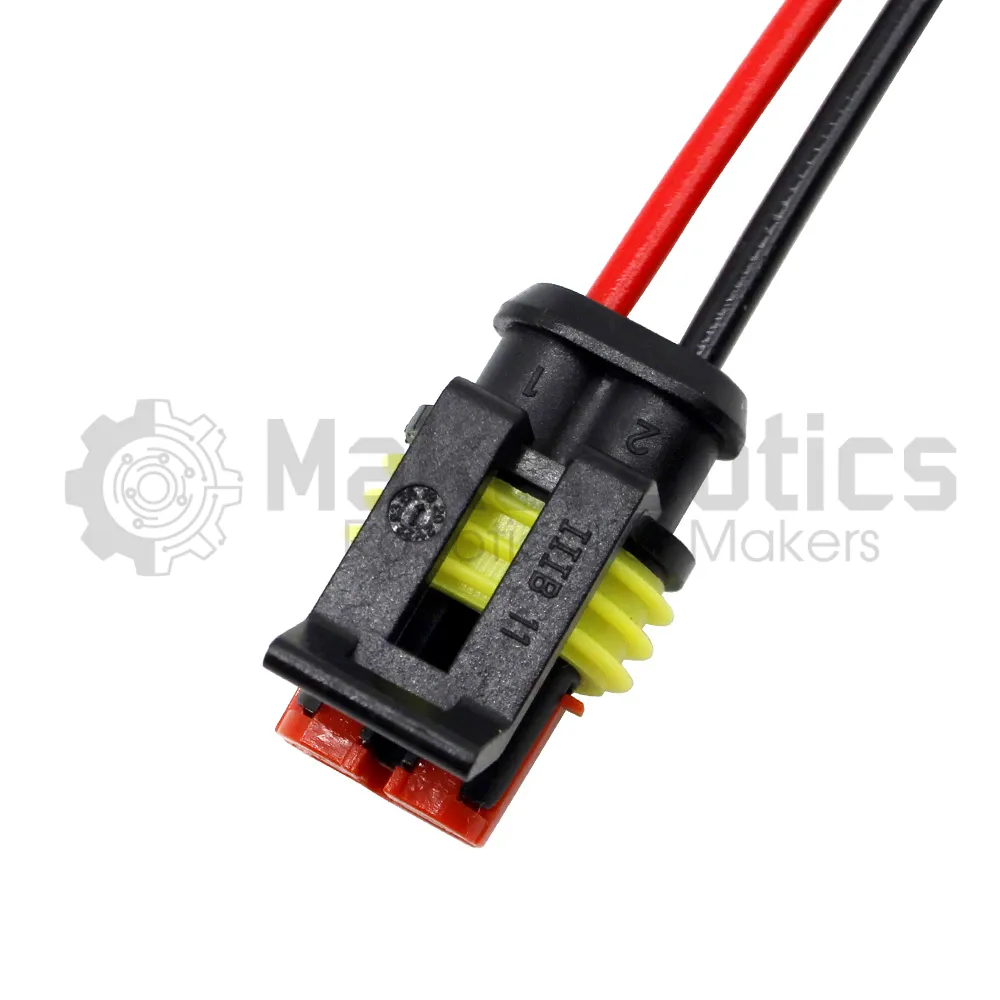

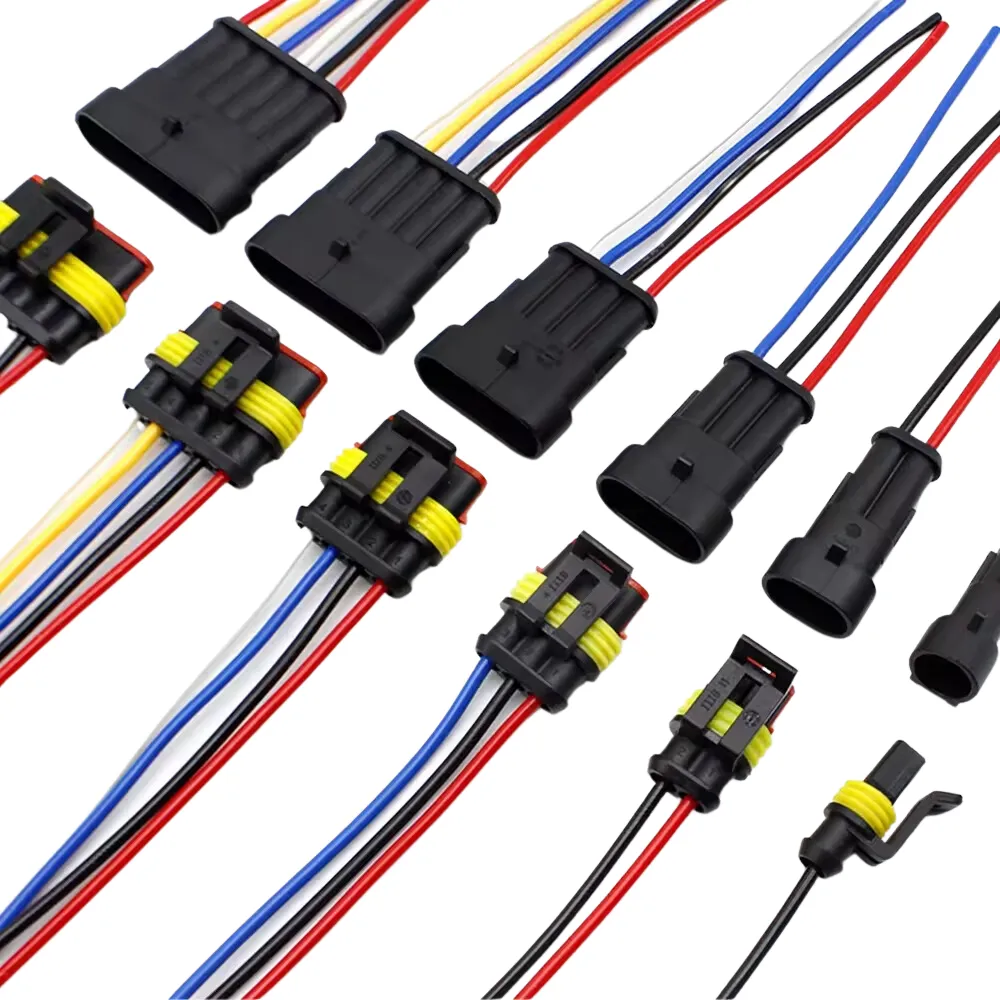

• Versatile Configurations: Available in 2,  4 and 6 pin configurations to suit a wide range of automotive applications.
• High-Quality Materials: Made fromhigh quality materials to resist high temperatures, vibrations, and water/dust ingress.
• Secure Connection: Equipped with a locking mechanism to ensure a secure and stable connection, preventing accidental disconnections.

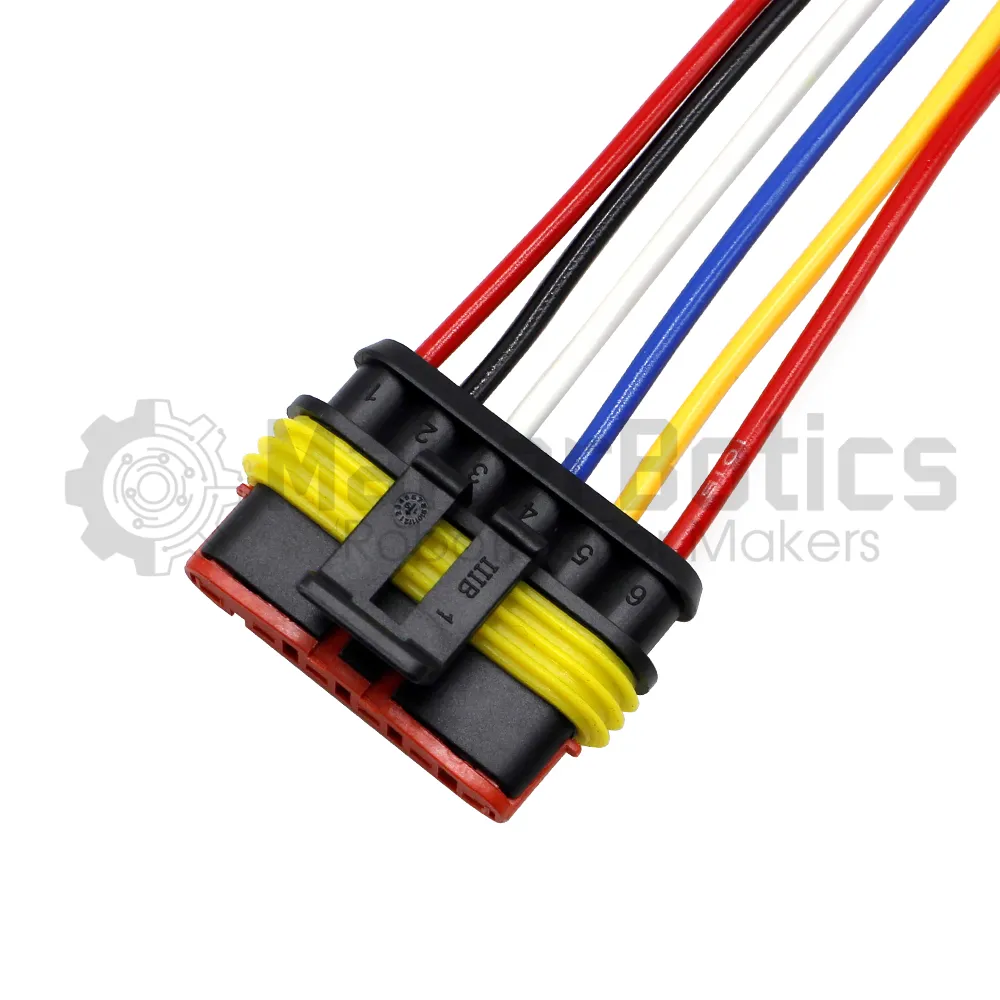

• Labelled Connector and Color-Coded Wires: Each connector comes with pre-attached, colour-coded wires and the connector is numbered for easy identification and installation.
• Water-Resistant: Designed to be water-resistant, making them suitable for use in outdoor/wet environments.

Specifications:

• Supplied cable gauge: 18AWG, 150mm
• Insulation material: PVC
• Rated Current: 8A DC
• Maximum Current: 10A DC
• Maximum  Recommended Voltage: 24V DC
• Number of Pins: Variable – 2-6Pins. (Select variation)
• Operating temperature: -10°C~+80℃

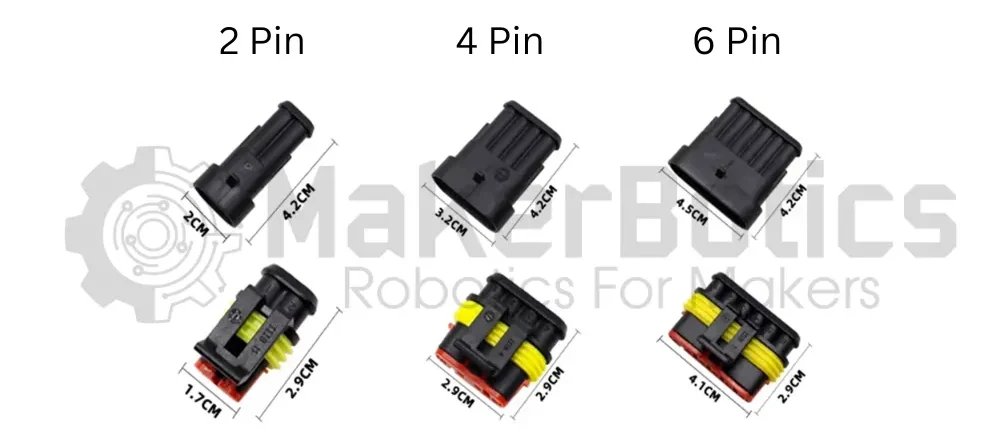

Dimensioned Drawings:

Included

• 1x Male Female Pair Waterproof connector with 18AWG leads (pre-connected).
