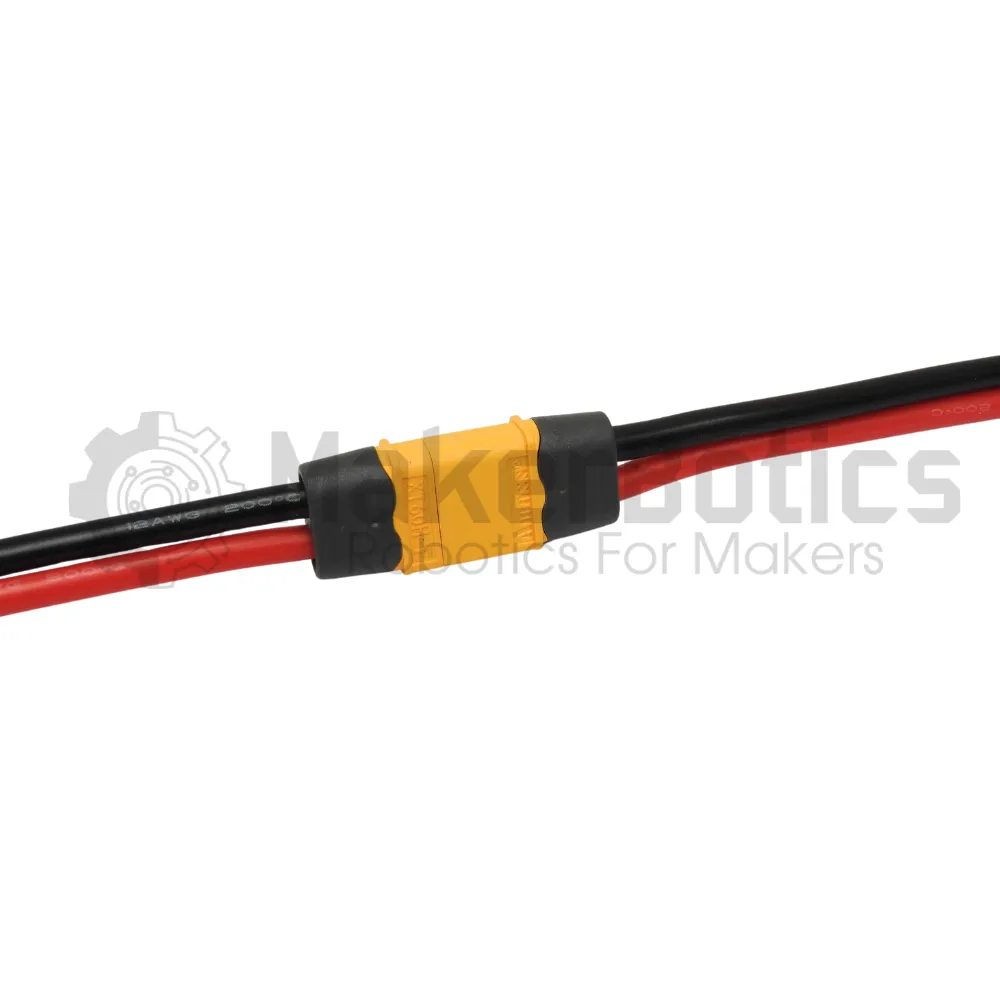

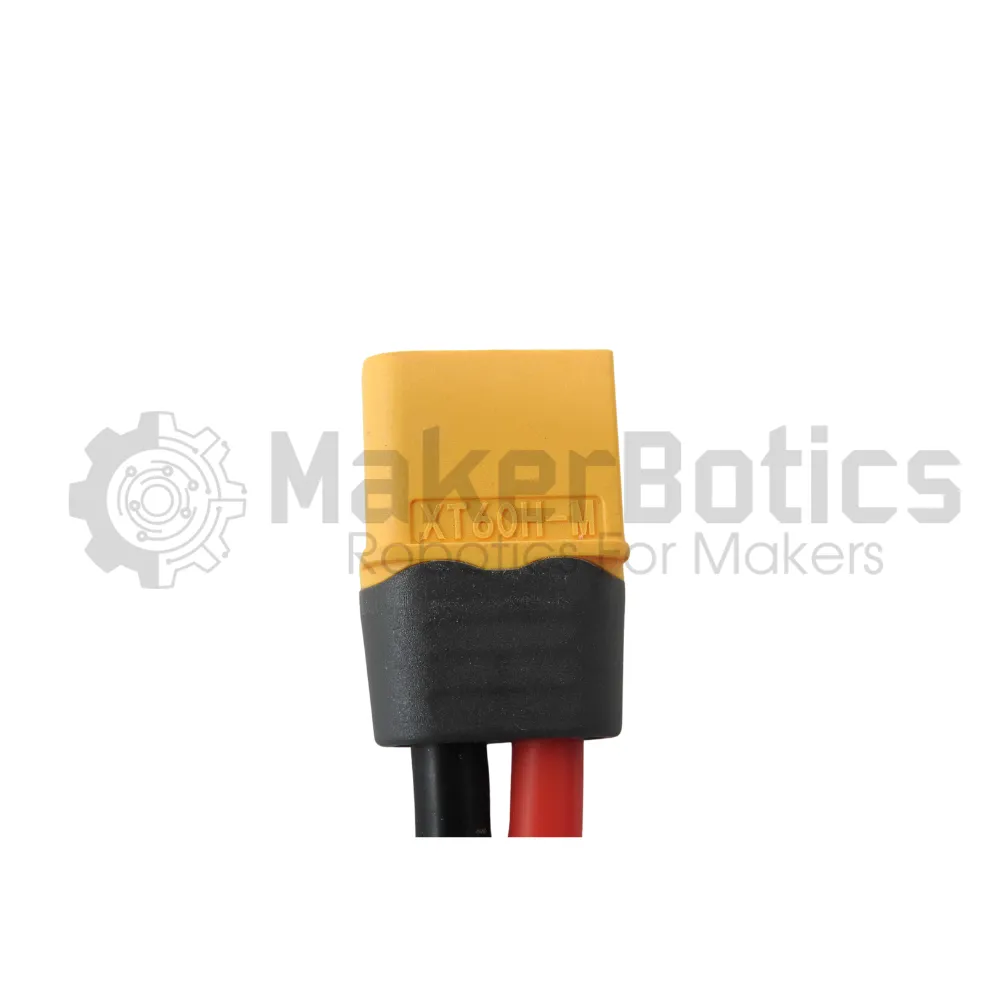

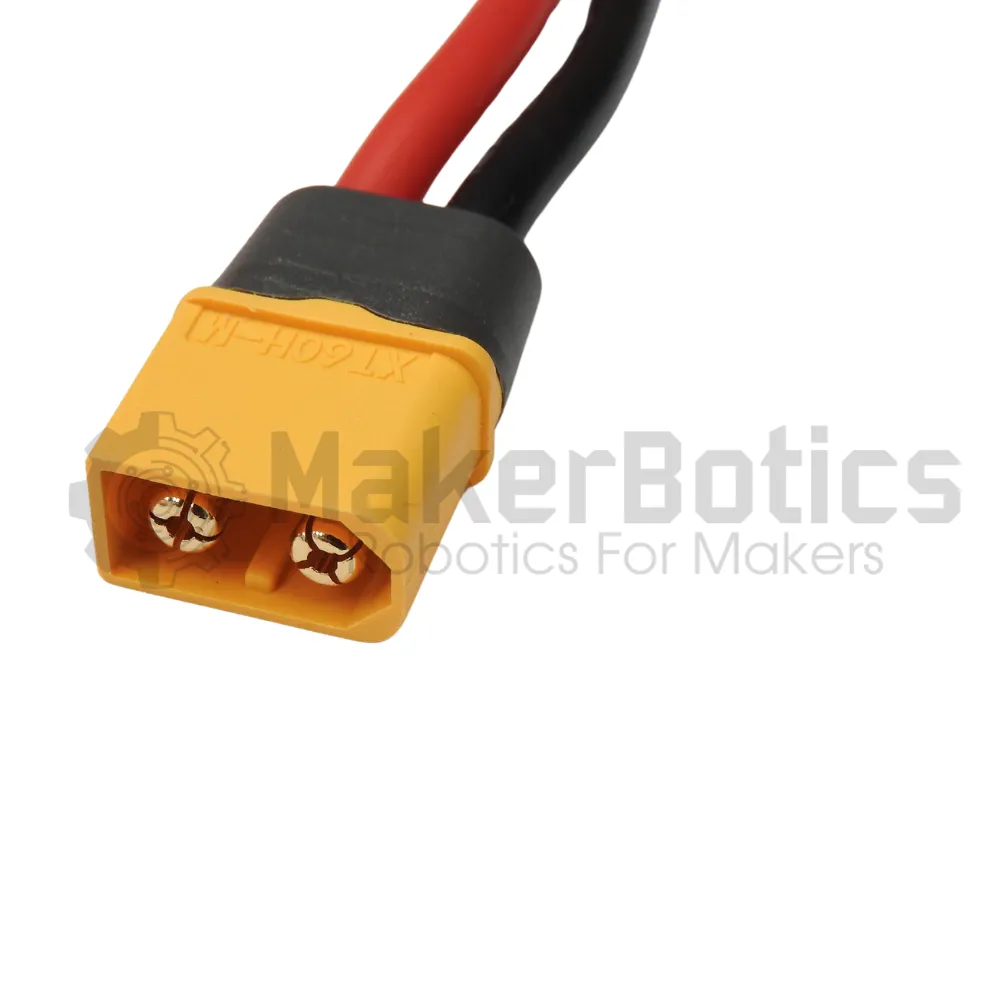

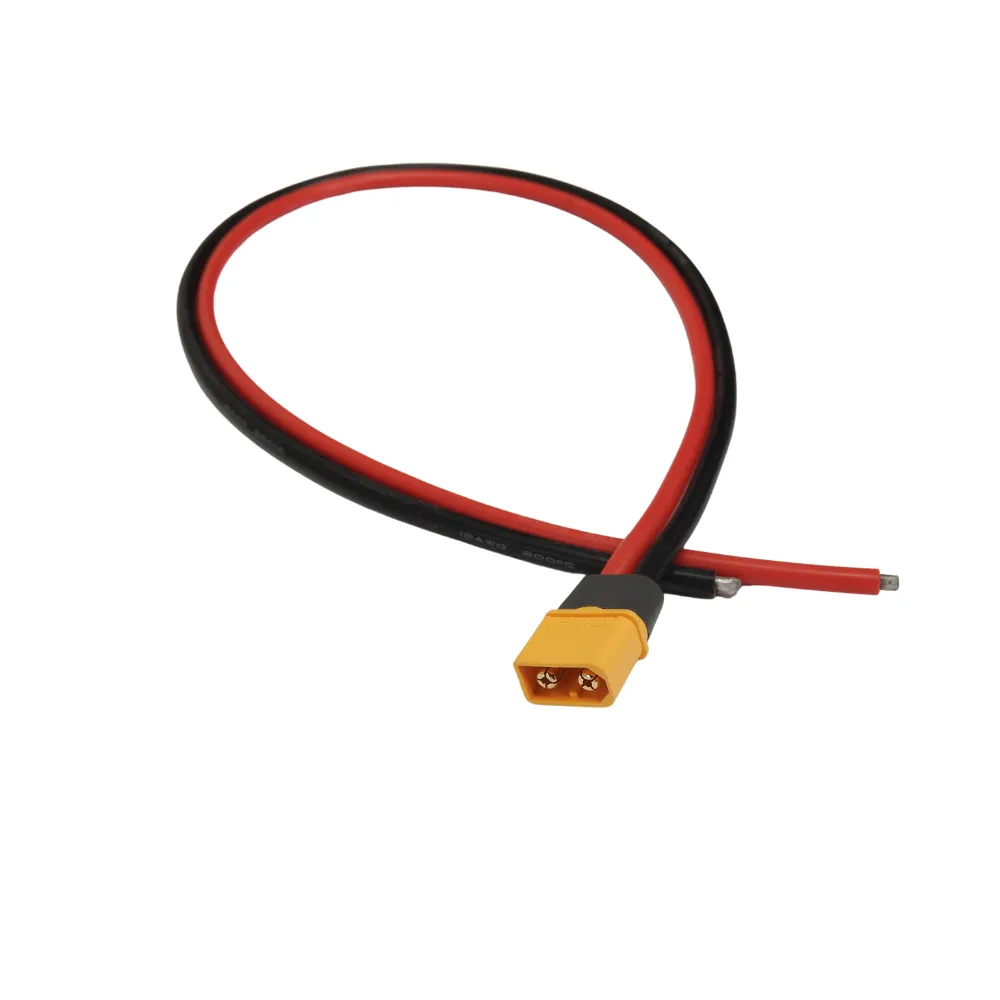

AMASS XT60H Male Connector With 500mm 12AWG Leads
$6.25 Inc. GST
Our pre-wired AMASS XT60H male connectors offer a convenient solution for pre-soldered connectors with high current carrying capability. The XT60H connector and silicone cable are widely used in robotics, hobbyist applications as well as professional applications.
Out of stock
Our pre-wired AMASS XT60H male connectors offer a convenient solution for pre-soldered connectors with high current carrying capability. The XT60H connector and silicone cable are widely used in robotics, hobbyist applications as well as professional applications.

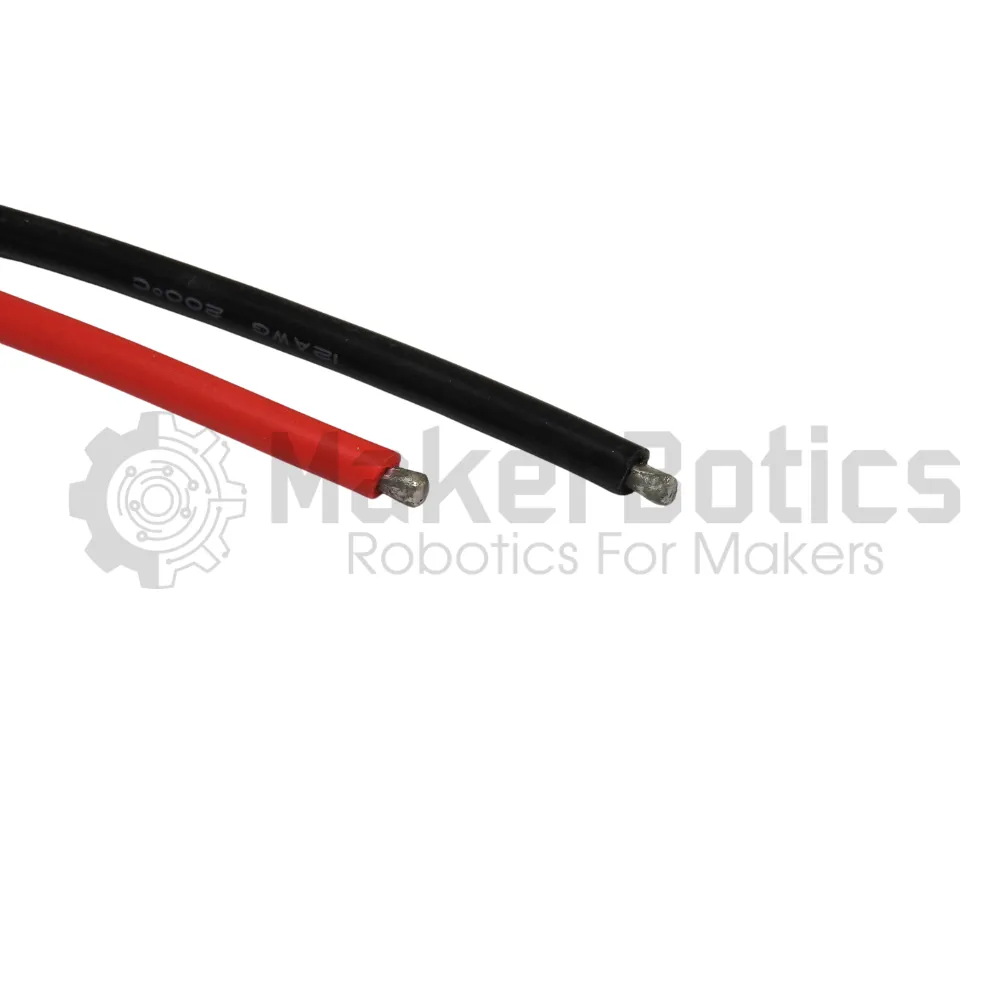

The connector comes pre-soldered to our high-quality silicon cables with a length of 500mm which provides plenty of cable for your projects. Attached to the cables are high-quality XT60H connectors with an integrated sheath to protect your solder joints.
The XT60H connectors are primarily constructed from durable nylon for the connector housing and feature conductive elements made of gold-plated brass. The nylon provides heat resistance and durability, while the gold plating ensures reliable conductivity and corrosion prevention. This combination makes XT60-H connectors well-suited for applications involving high-current DC power.
Specifications:
- Connector Type: AMASS XT60H Male Connector with integrated sheath
- Supplied cable gauge: 12AWG, 500mm
- Housing material: Heat-resistant Nylon
- Rated Current: 30A
- Maximum Current: 60A
- Maximum Voltage: 500V DC
- Number of Pins: 2
Included
- 1x AMASS XT60H male connector with 500mm with 12AWG leads (pre-soldered).

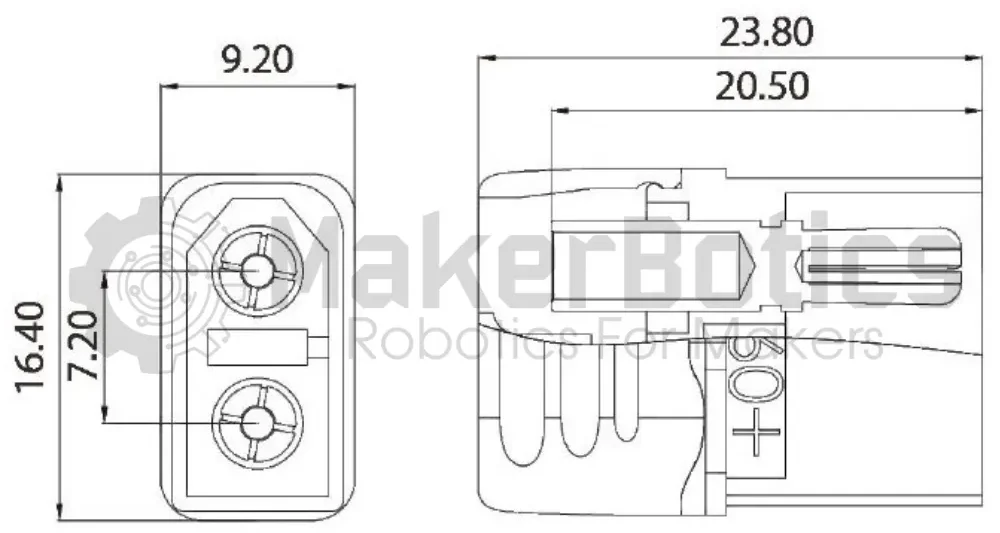

Engineering Drawings
| Weight | 0.05 kg |
|---|---|
| Dimensions | 20 × 2 × 2 cm |
