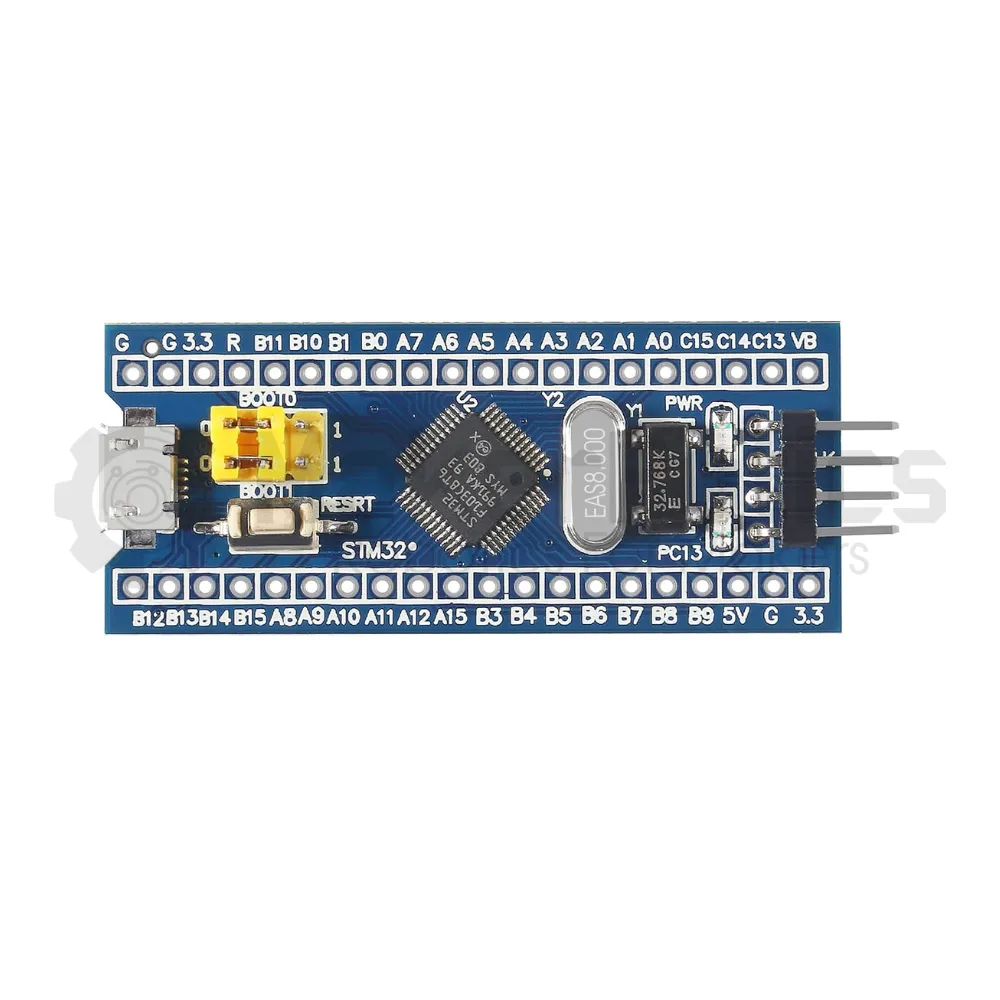

STM32 Compatible Blue Pill APM32F103CBT6

Please note that this microcontroller uses the APM32 which is compatible with the standard blue pill. The Pinouts are identical

The APM32 Blue Pill is a popular and powerful microcontroller used in embedded applications where high processing power is required. Featuring the APM32 microcontroller chip with a robust ARM Cortex-M3 core clocked at up to 72 MHz, offering exceptional processing power and efficiency for a diverse range of applications. Boasting 64 KB of Flash memory and 20 KB of RAM, the Blue Pill provides ample storage and computational resources to handle complex tasks with ease.

The APM32 Development Board is incredibly versatile and can be used in various applications across multiple industries. Some common use cases include:

• Embedded Systems: It is ideal for building embedded systems such as home automation devices, industrial control systems, and IoT (Internet of Things) applications.
• Robotics: Use this microcontroller to control motors, sensors, and other components in robotics projects, ranging from small hobby robots to industrial automation systems.
• Educational Projects: The microcontroller is a great tool for teaching and learning about microcontroller programming, electronics, and robotics in educational settings such as schools, colleges, and maker spaces.
• Prototyping: Rapidly prototype and develop proof-of-concept projects for new product ideas or research initiatives using the Blue Pill’s flexible and feature-rich platform.
• DIY Electronics: Whether you’re a hobbyist or a professional maker, the Blue Pill is perfect for building custom electronics projects, from simple LED displays to complex data logging systems.

Features

• APM32 Chip
• Clock speed up to 72 MHz
• 64 KB Flash memory and 20 KB RAM
• Comprehensive set of peripherals including GPIO, ADC, DAC, UART, SPI, I2C, and more
• On-board LED indicator for easy debugging
• USB interface for programming and debugging
• Compatible with Arduino IDE for seamless development
• Compact form factor (2.54 cm x 5.08 cm) for easy integration into projects

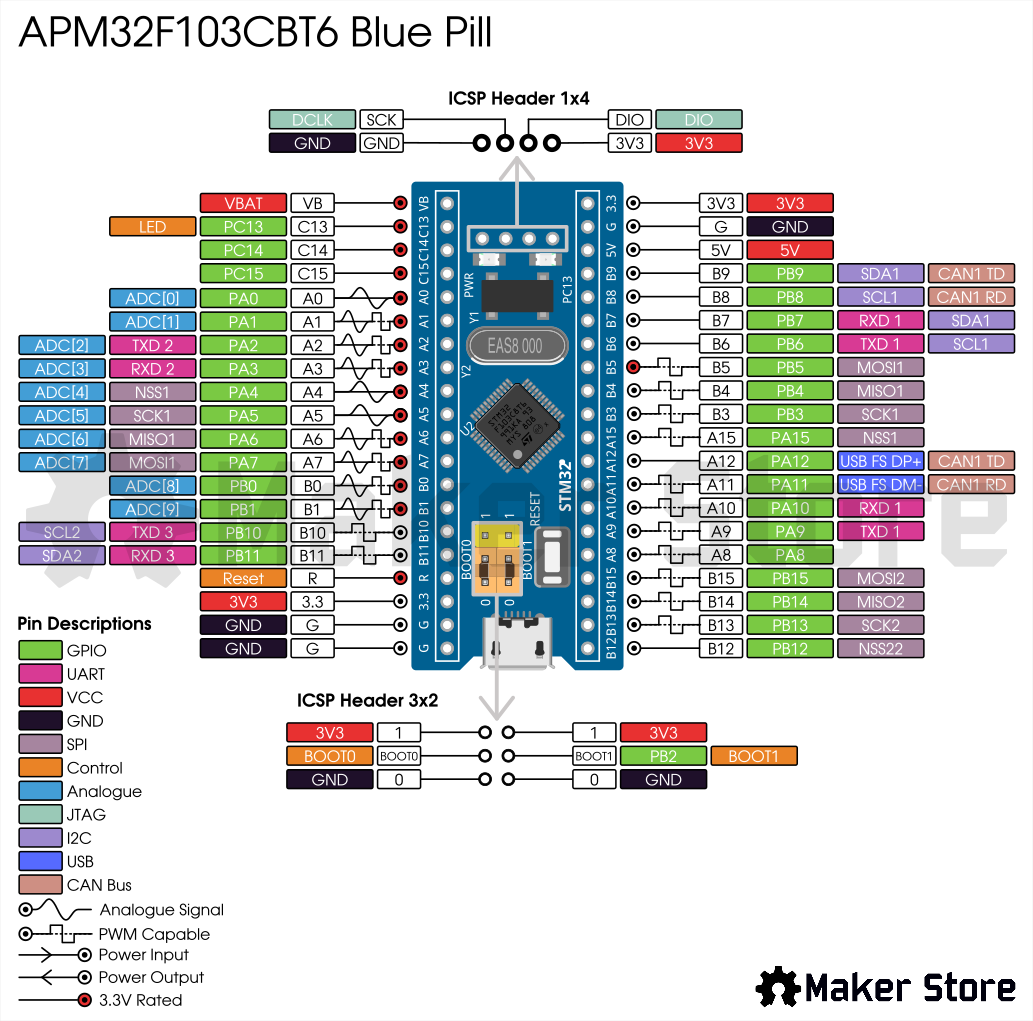

Pinout Diagram

Included:

• STM32 Compatible Blue Pill – APM32
• Male Headers

Resources:

• How to configure the Blue Pill with the Arduino IDE

Software:

The STM32 Blue Pill is compatible with the following software:

• Arduino IDE
• STM32 Cube Programmer
• STM32 Cube IDE
