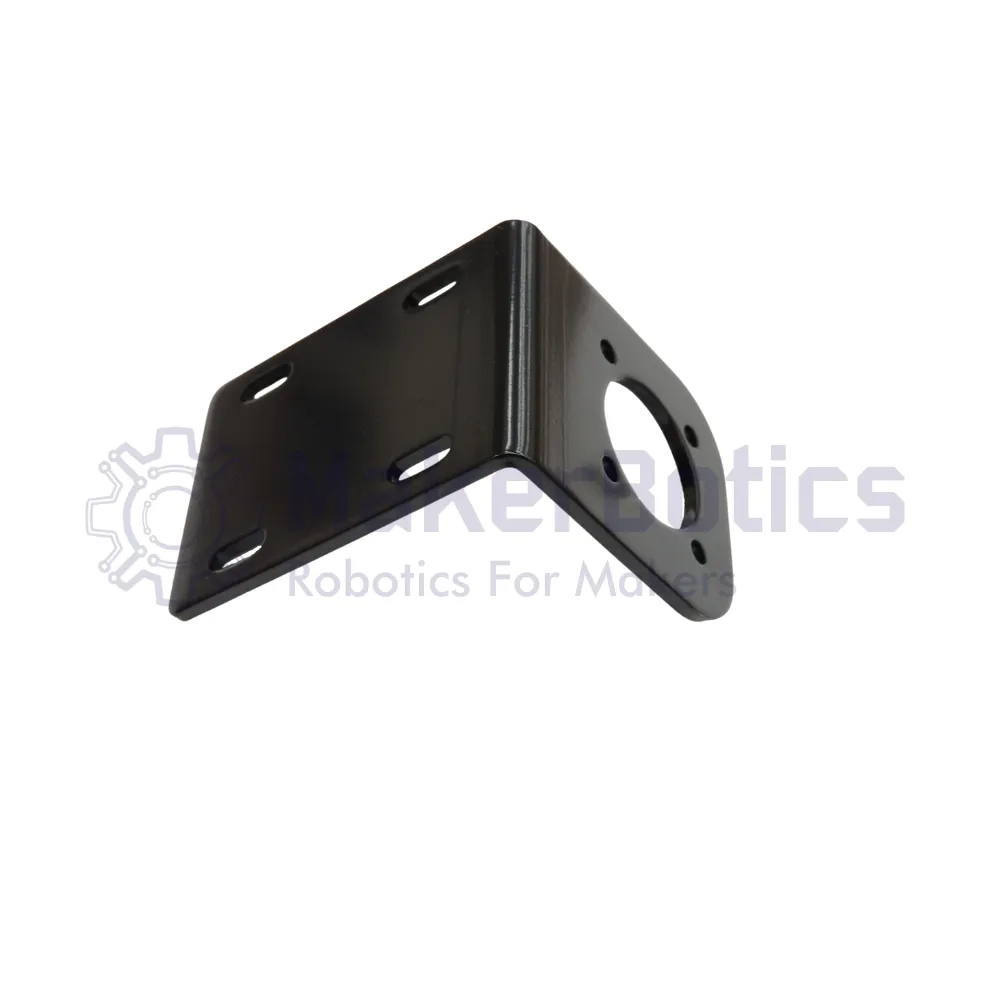

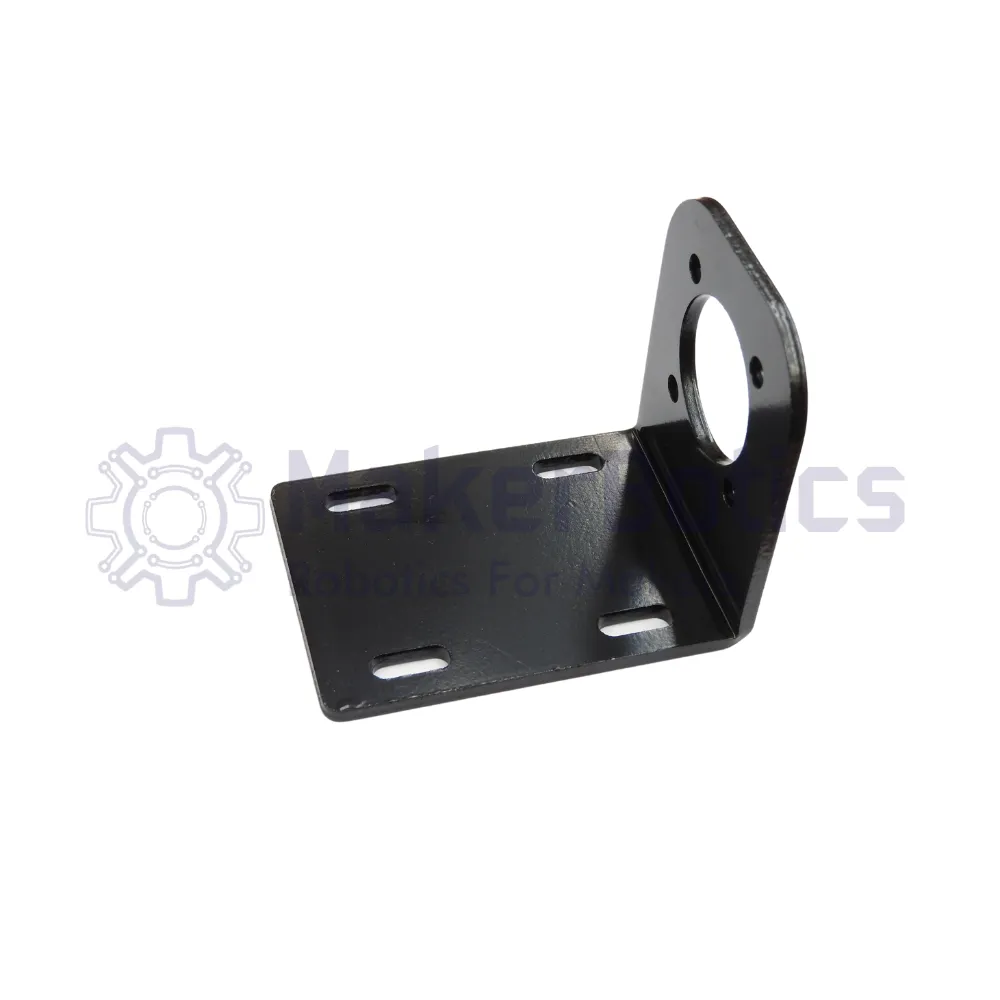

42mm Planetary Geared Motor Right Angle Mount

Our planetary gear motor mounts are excellent for mounting a 42mm planetary geared motor or a similarly sized motor. This bracket features 4 slots for surface mounting, making it suitable for mounting to a variety of surfaces such as plates and aluminium extrusion. These motor mounts are typically used in making custom mobile robot chassis.

The 3mm steel construction makes for a very rigid motor mount that resists deflection.

Mount this extrusion to aluminium extrusion for a rigid setup!

Specifications

• Material: Steel
• Material thickness: 3mm
• Material finish: Black
• Mounting hardware: M4

Included

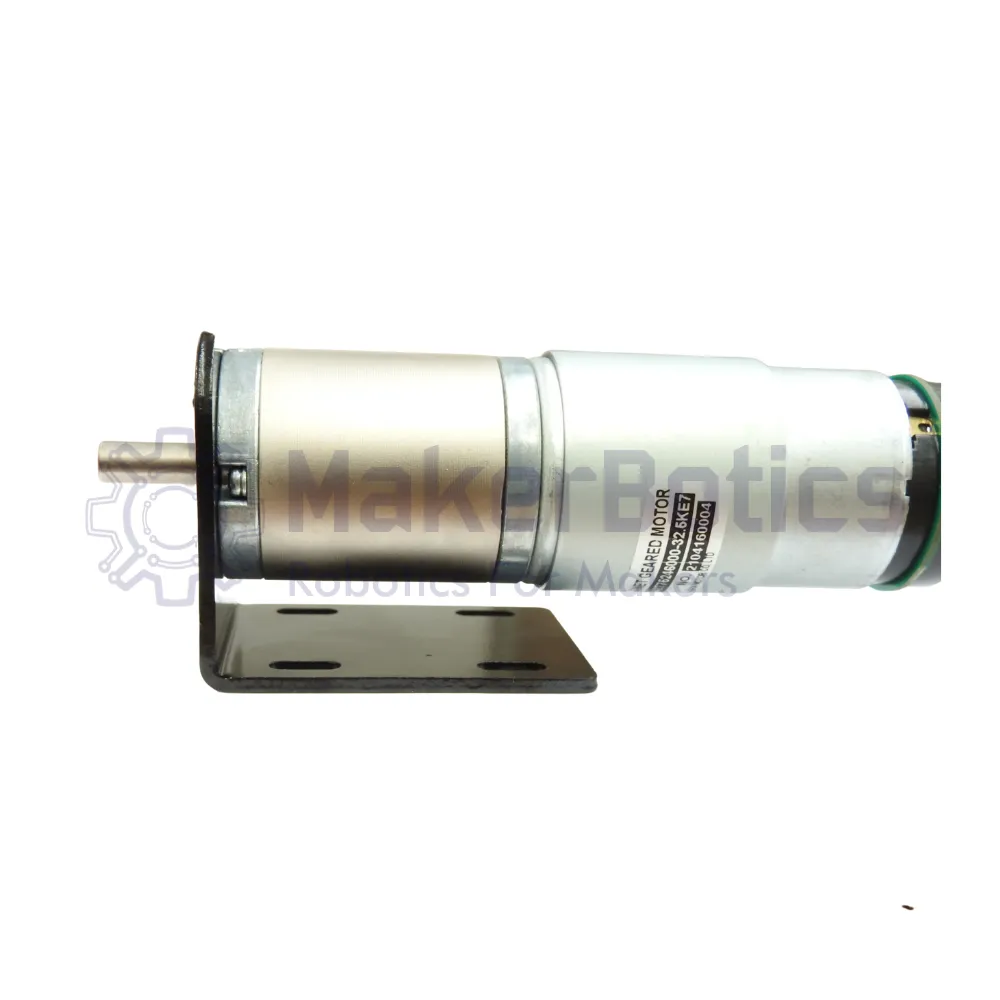

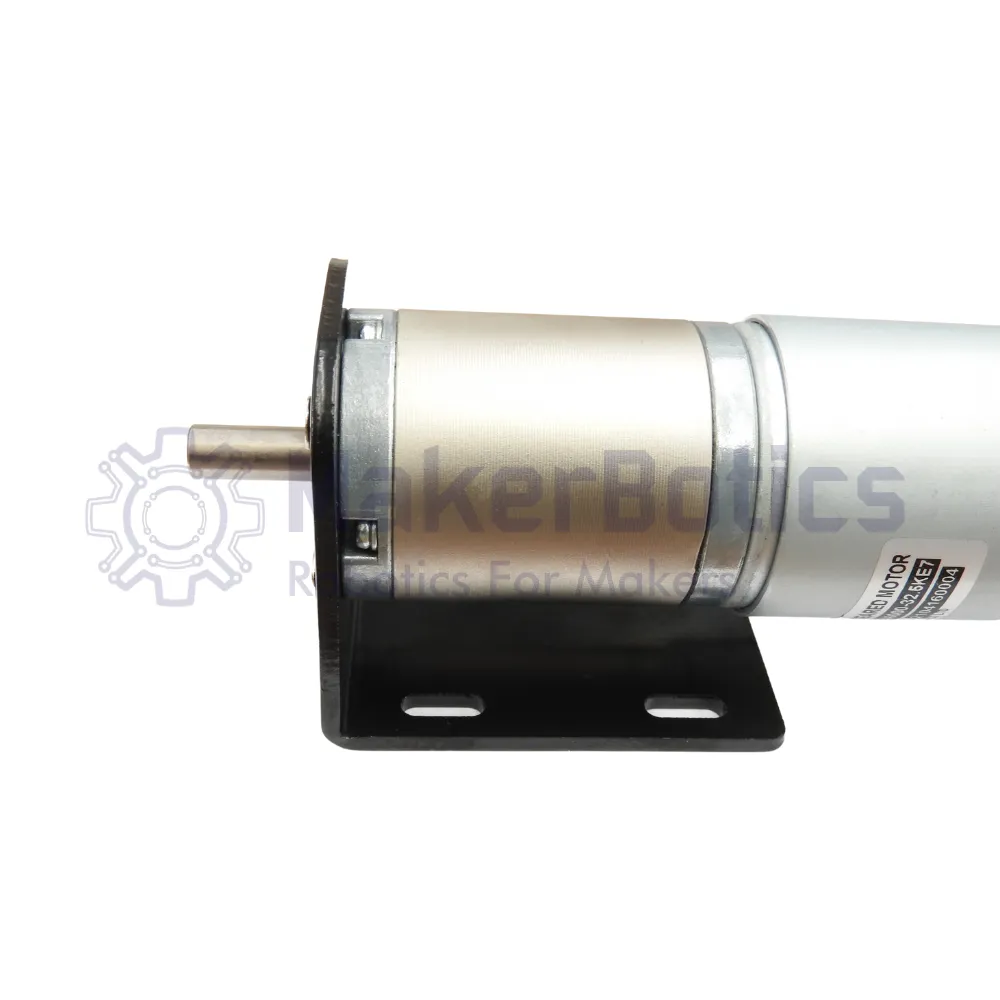

• Right angle motor mount bracket to suit our 42mm planetary geared motor

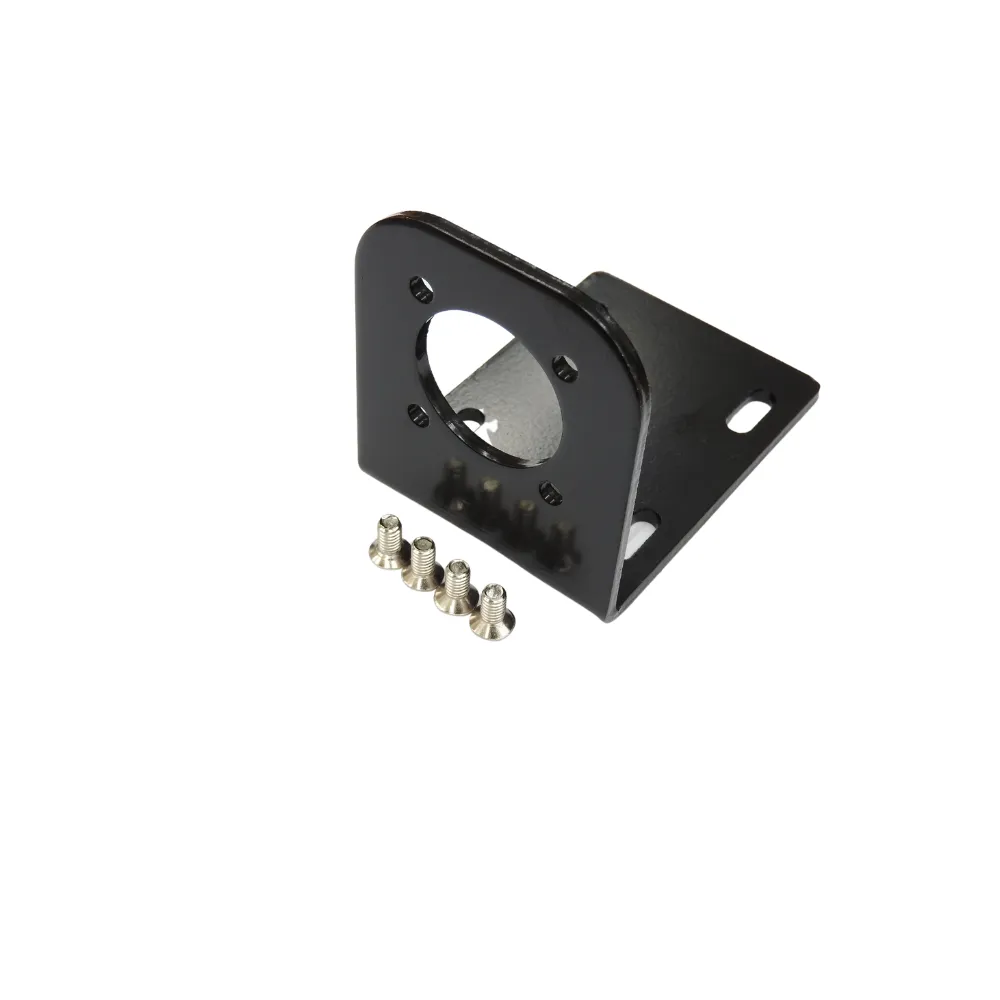

• 4 screws (Phillips head type) to secure the motor to the bracket

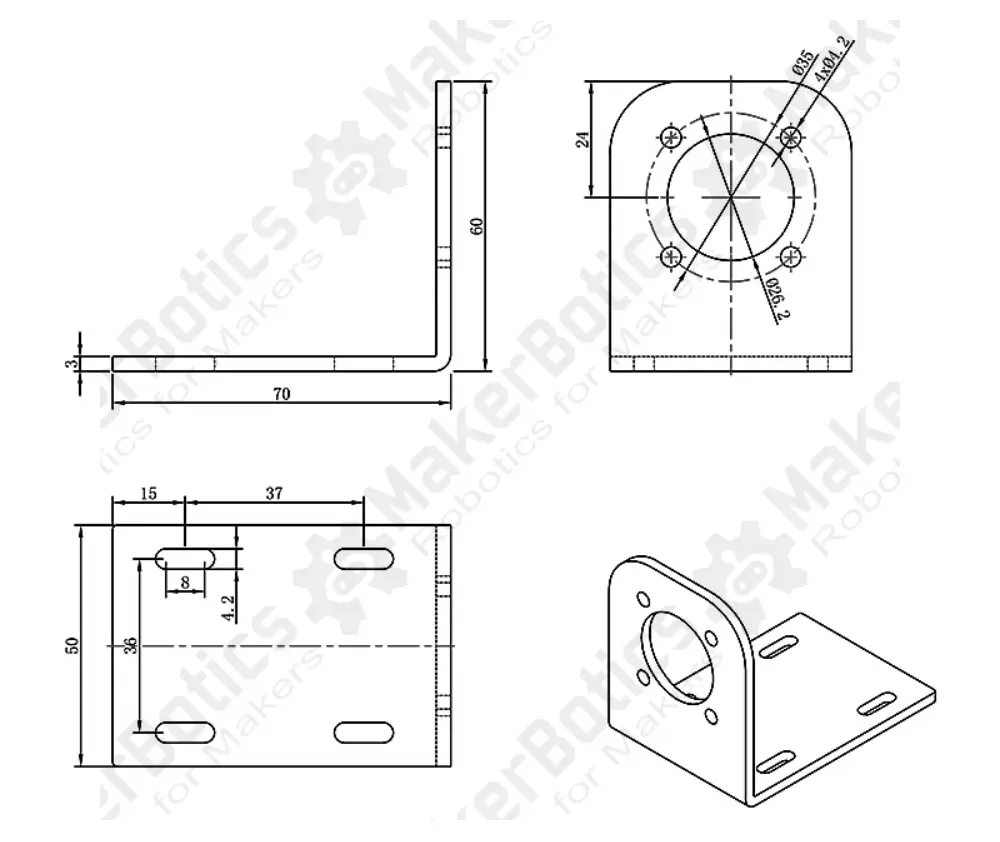

Engineering Drawings

All dimensions are in mm

Note

• Hardware to mount the bracket to a surface is not included
• The motor is not included. Suitable motors can be found here
• If you are using your own motor, check the mounting holes in the above engineering drawings to ensure a good fit
