37mm Spur Gear Motor Mounting Bracket
$5.20 Inc. GST
Our planetary gear motor mounts are excellent for mounting a 37mm Spur Geared Motor or a similarly sized motor. This bracket features 4 mounting holes surface mounting, making it suitable for mounting to a variety of surfaces such as plates and aluminium extrusion. These motor mounts are typically used in making custom mobile robot chassis.
Out of stock
Our 37mm spur gear motor mounts are excellent for mounting a 37mm Spur Geared Motor or a similarly sized motor. This bracket features 4 mounting holes surface mounting, making it suitable for mounting to a variety of surfaces such as plates and aluminium extrusion. These motor mounts are typically used in making custom mobile robot chassis.
The 3mm steel construction makes for a very rigid motor mount that resists deflection.
Specifications
- Material: Steel
- Material thickness: 3mm
- Material Finish: Black
- Mounting hardware: M3

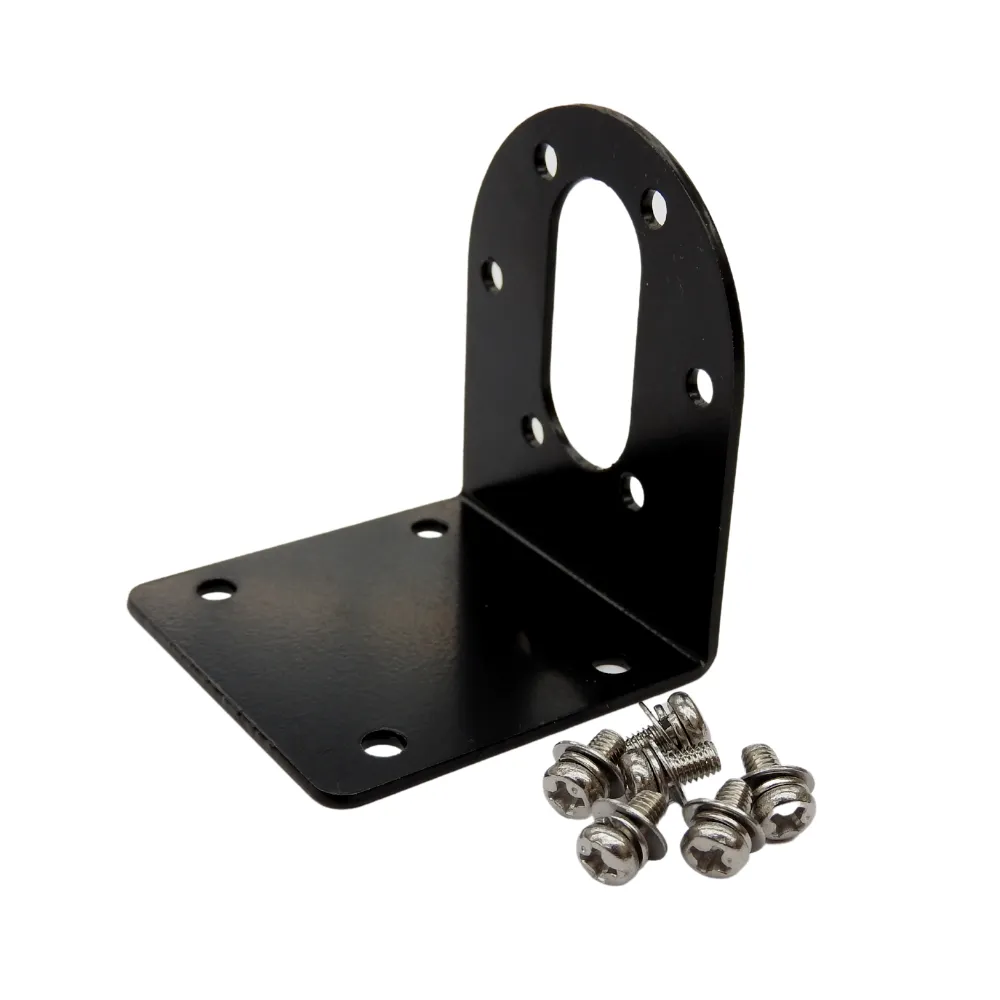

Included
- Right angle motor mount bracket to suit our 37mm Spur Geared Motor
- 4 screws (Phillips head type) to secure the motor to the bracket

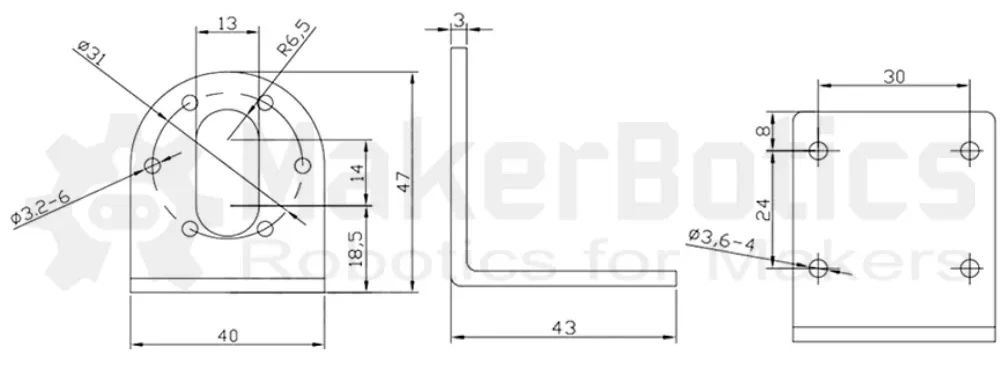

Engineering Drawings
All dimensions are in mm
Note
- Hardware to mount the bracket to a surface is not included
- The motor is not included. Suitable motors can be found here
- If you are using your own motor, check the mounting holes in the above engineering drawings to ensure a good fit
| Weight | 0.08 kg |
|---|---|
| Dimensions | 4 × 6 × 4 cm |
