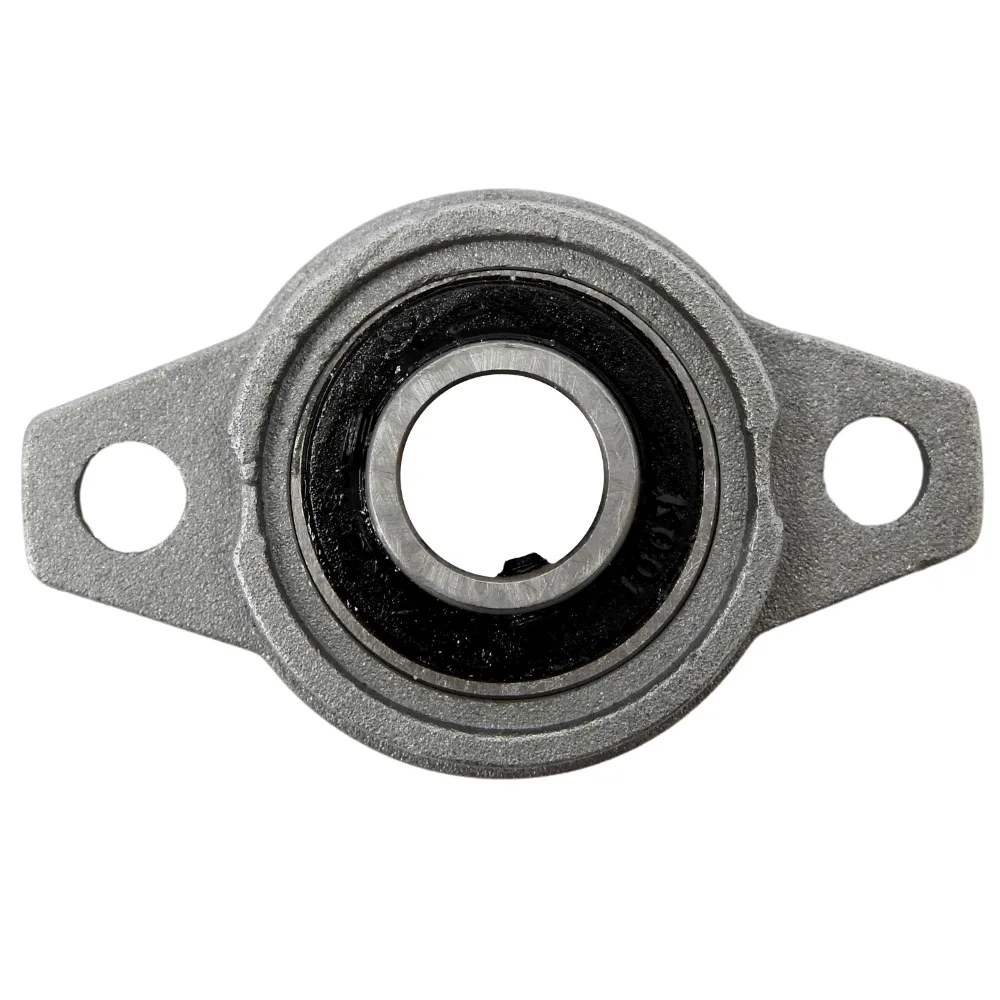

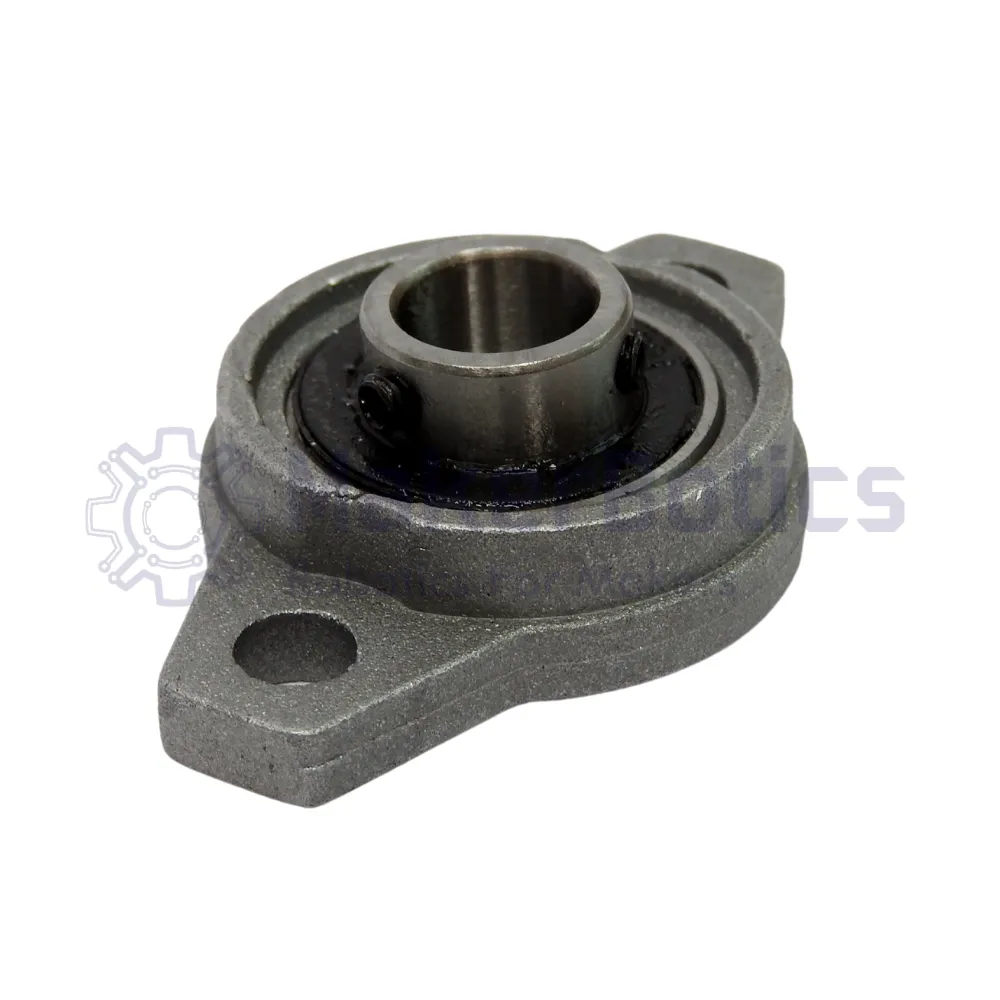

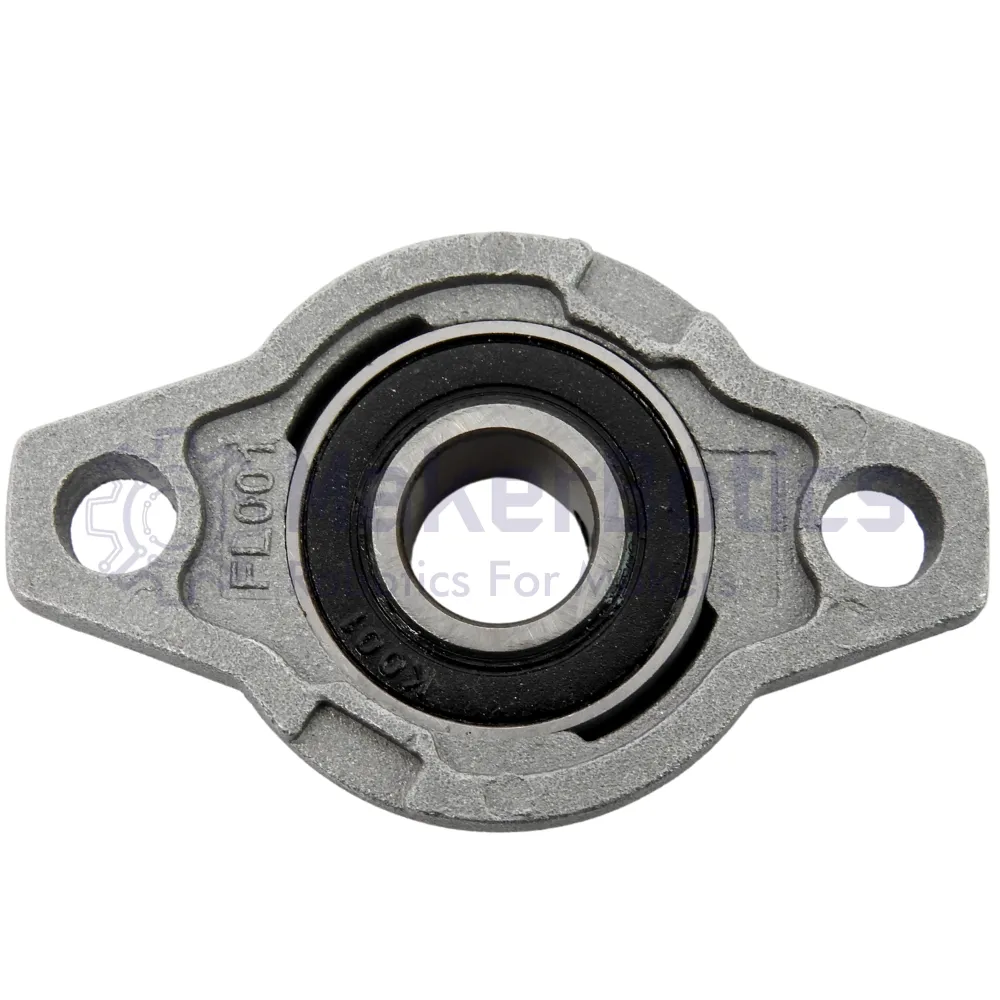

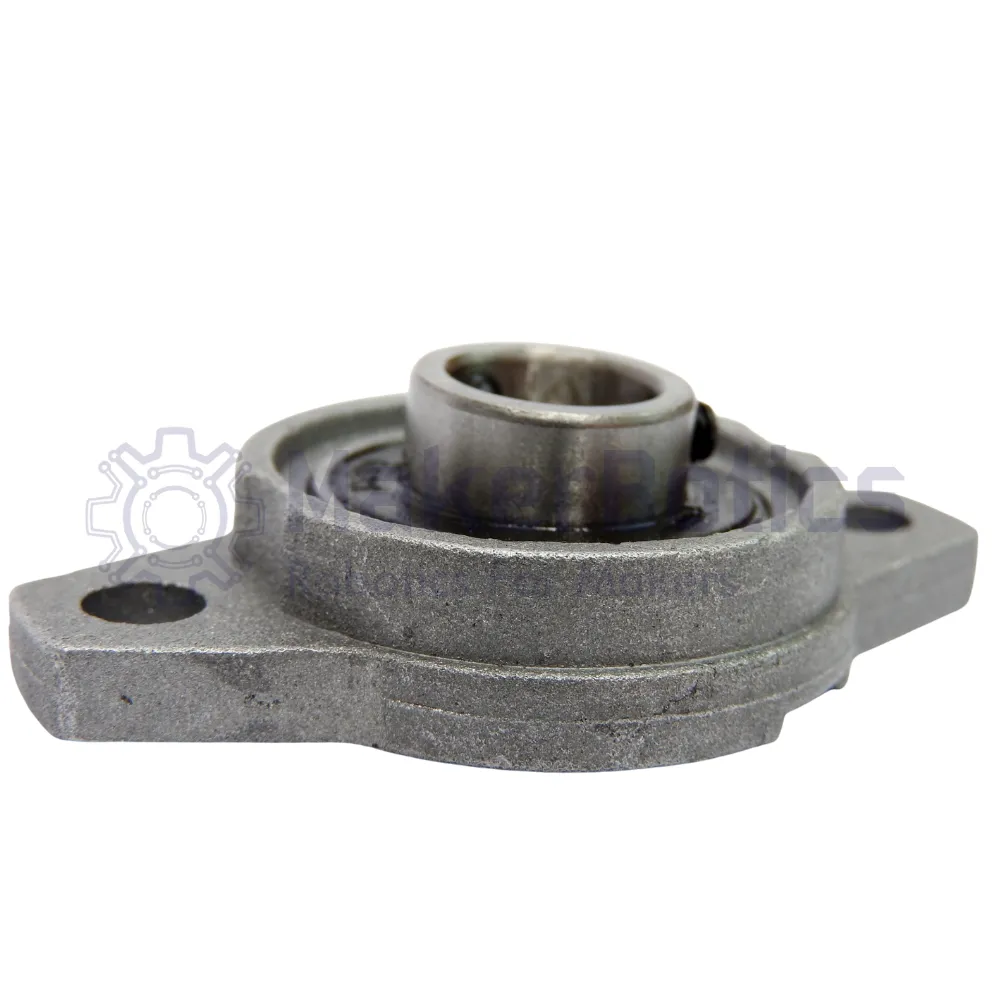

KFL001-12mm Bore – Pillow Block Flange Bearing

The KFL001 is a unitized pillow block bearing that is commonly used in small mechanical applications such as 3D printers, CNC machines, and robotics. The bearing is designed to support a shaft with a diameter of 12mm.

This bearing is composed of two main components: the pillow block housing and the bearing insert. The pillow block housing is made of zinc alloy, which provides good corrosion resistance and strength. It has a set-screw locking mechanism that secures the bearing insert onto the shaft. The bearing insert is made of chrome steel and has two rubber seals to prevent dust and dirt from entering the bearing.

Our KFL001 bearings come pre-lubricated with high-quality grease, which reduces friction and extends the bearing’s lifespan.

Use this bearing with 12mm smooth rods.

Specifications:

• Inner hole dimension: 12mm
• Material: Zinc Alloy
• Type: Pillow Block Bearing Flange Block Bearing
• Model: KFL001

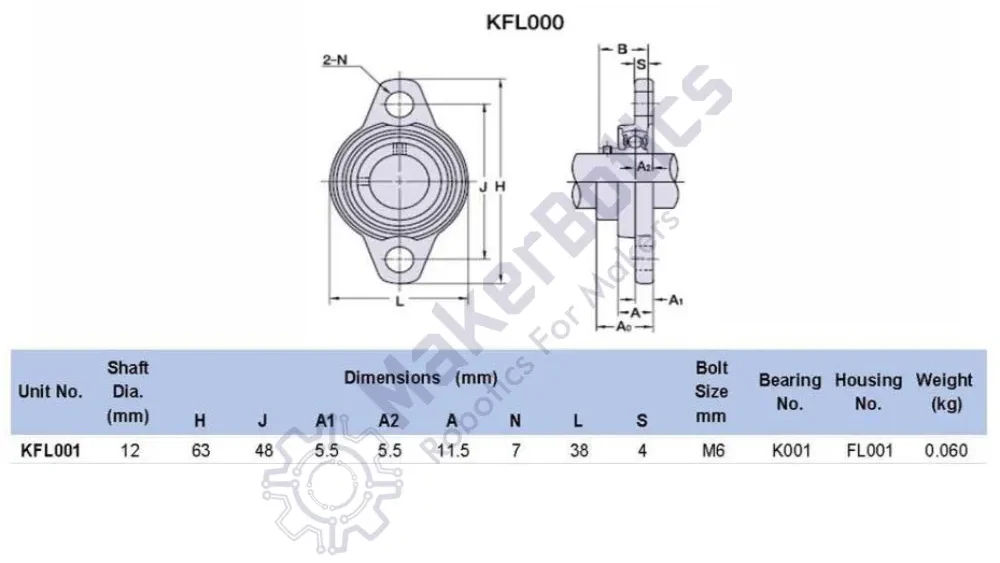

Engineering Drawings

Tips and Tricks

• Use the mounting holes to use M6 Hardware to fix the bearing to a surface.
