JST-XHP-4 Pin DC Motor Encoder Cable – Female
$1.26 Inc. GST

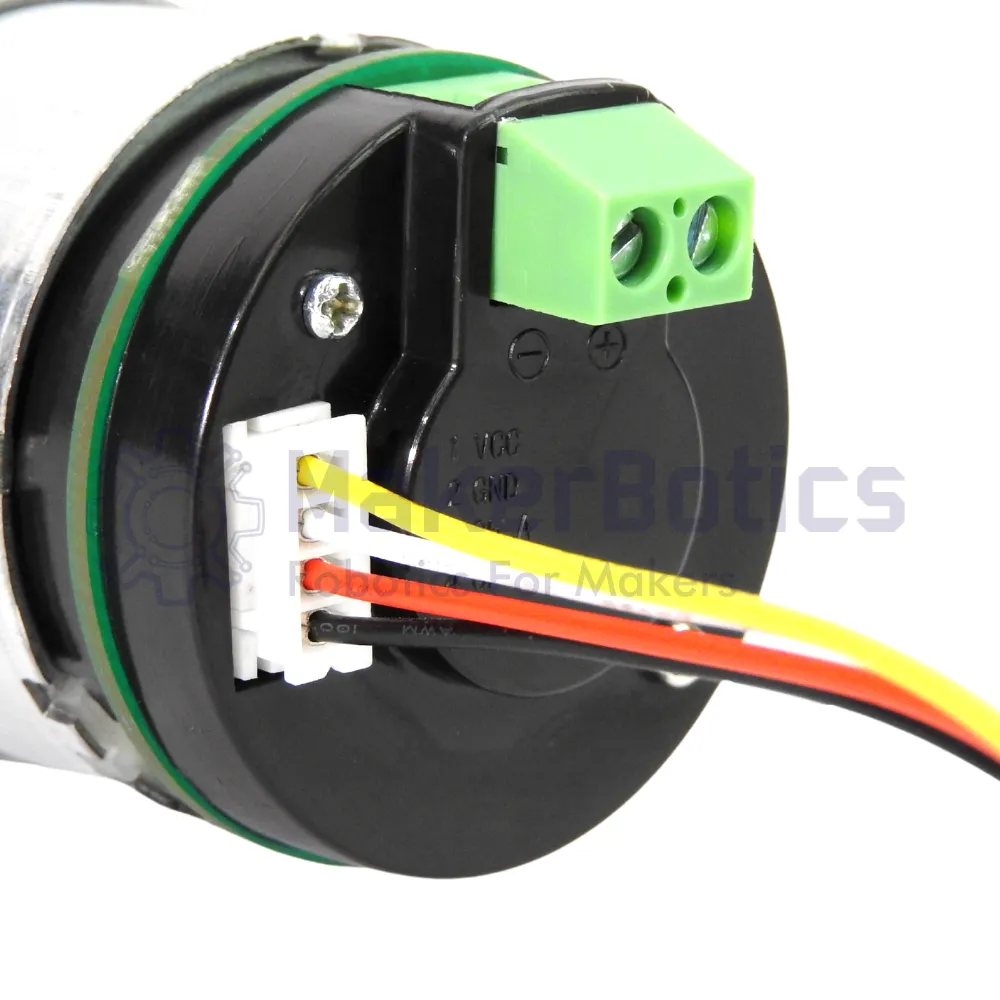

These 4-pin cables are for the MakerBotics Planetary Geared 775 motors or any motor with a JST XH-4 Pin connector with 2.54mm pitch connector.
Use these cables to get encoder readings from the motor for any project requiring odometry data or location data of your mobile robot or robotic arm.
Out of stock

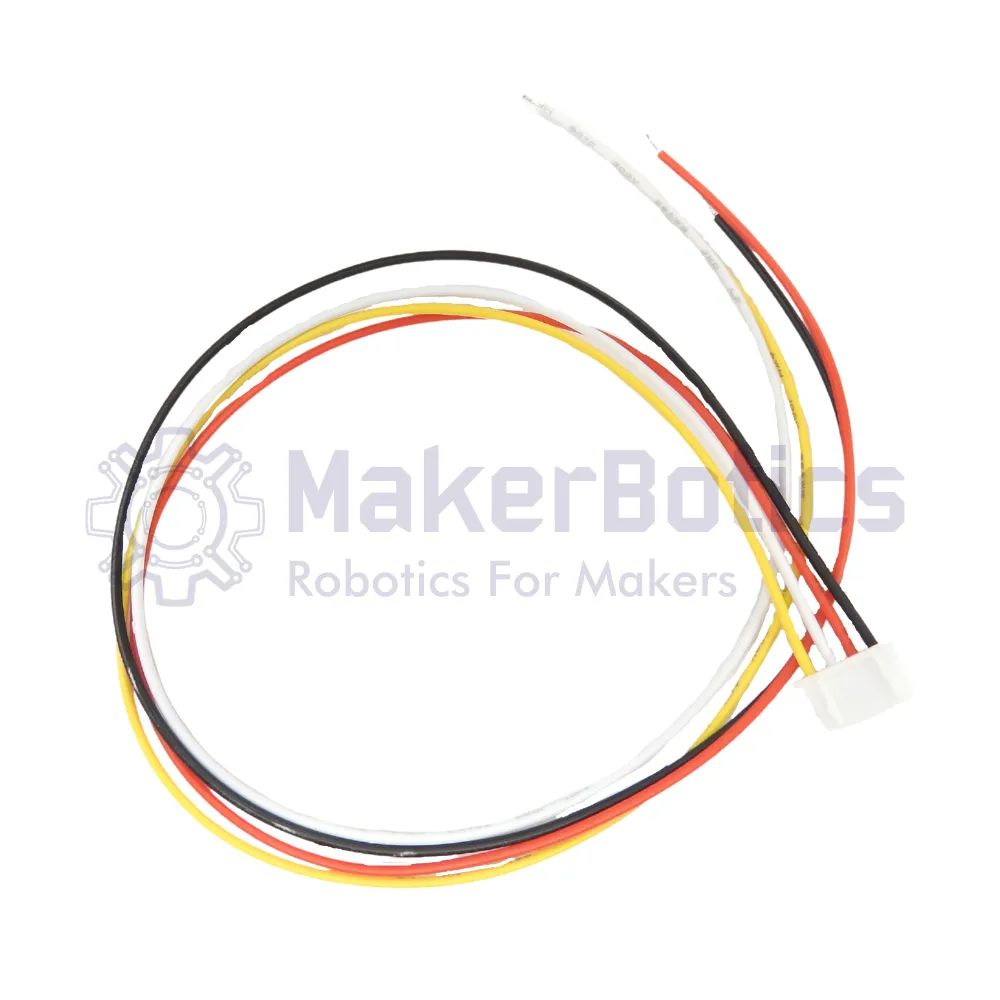

These 4-pin cables are for the MakerBotics Planetary Geared 775 motors or any motor with a JST XH-4 Pin connector with 2.54mm pitch connector. This cable is terminated with the JST connector on one end and has bare, pre-tinned leads on the other to connect directly to the EDG 4-pin connectors.
Use these cables to get encoder readings from the motor for any project requiring odometry data or location data of your mobile robot or robotic arm.
Specifications:
- Length: approx. 30cm
- 26 AWG wires
- Connector Pitch: 2.54mm
- All about JST XH connectors
- Pins: 4
Pinout:
- VCC: Yellow
- GND: White
- Red: Encoder Channel A
- Black: Encoder Channel B
Please Note:
- This connector cable is only compatible with the Planetary Geared 775 motor or any application requiring a JST XH-4P connector

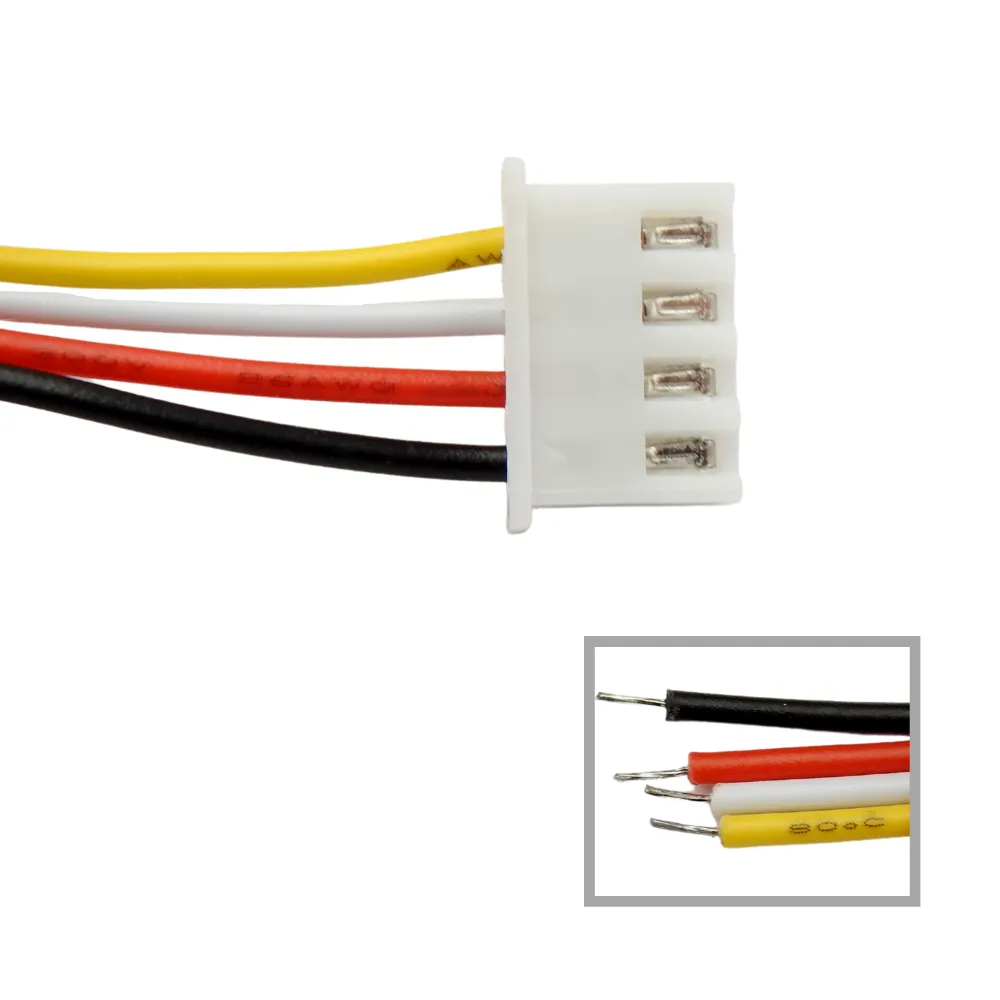

- Supplied as a female pre-terminated 4-pin cable with bare leads
| Weight | 0.05 kg |
|---|---|
| Dimensions | 15 × 2 × 2 cm |
