Feetech Serial Bus Servo SCS0009 180 degree 2.3kg – MakerBotics
$30.98 Inc. GST

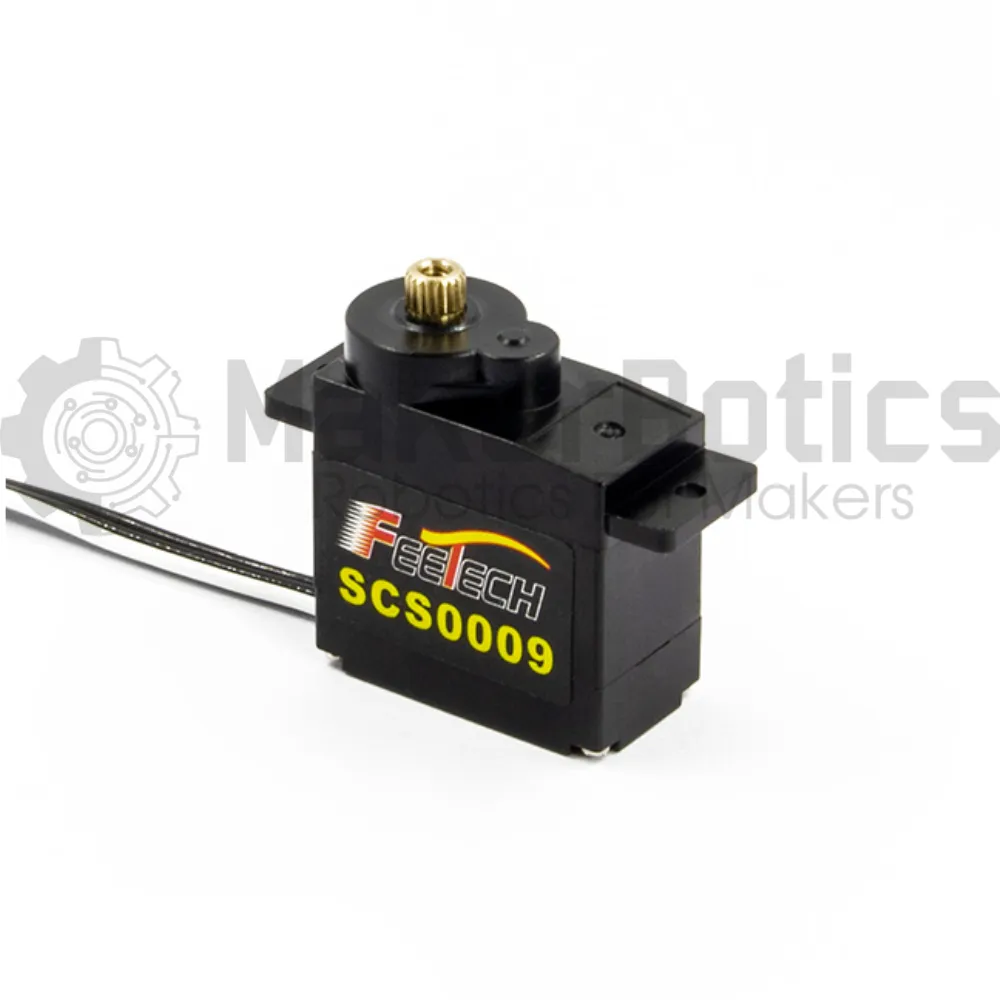

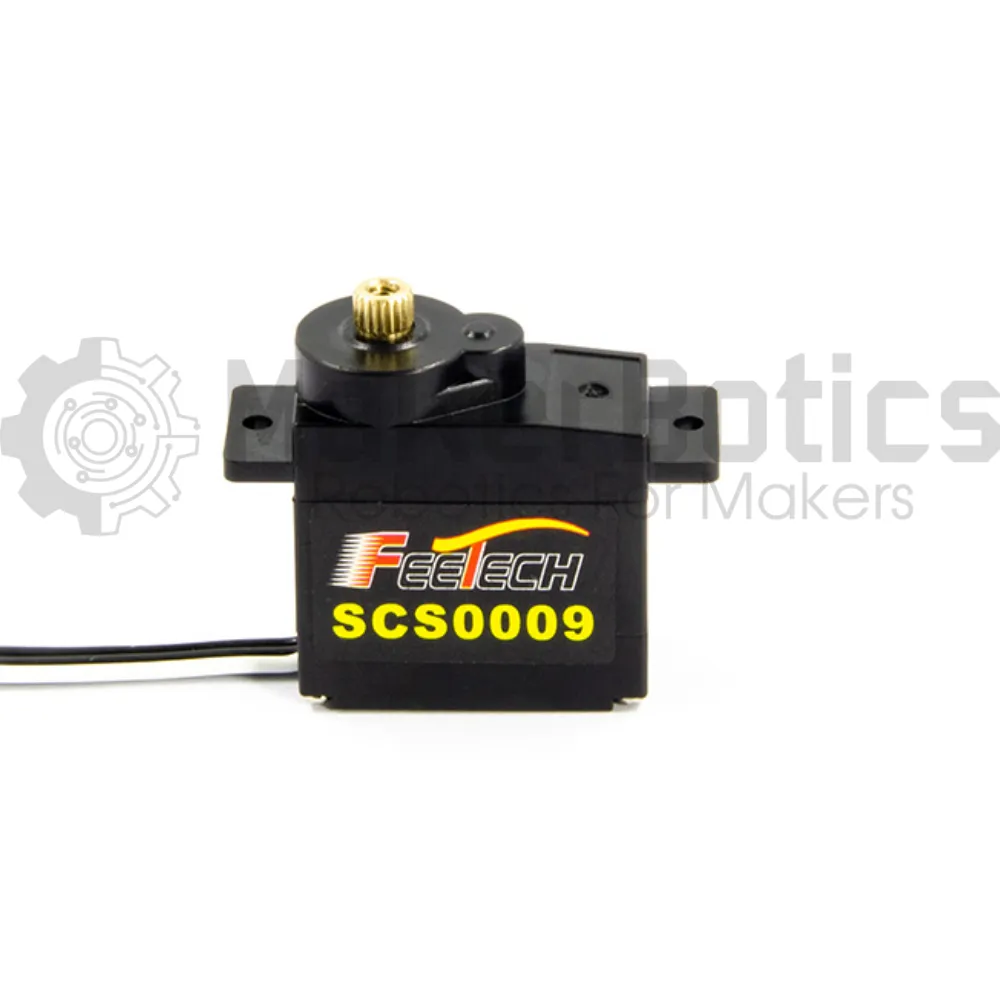

The SCS0009 9G Micro Servo is a unique servo in its class as it features serial bus communication capability and metal gears compared to its contemporaries in the 9G class.
Out of stock
The SCS0009 Micro Servo is a unique servo in its class as it features serial bus communication capability and metal gears compared to its contemporaries in the 9G class which have about 1.6kg/cm. This servo only weighs 11g and boasts an impressive torque of 2.3Kg/cm, making it extremely versatile for projects requiring a high torque requirement in a small space.
This advanced servo can output useful telemetry, boosting the method of control over your projects such as voltage, temperature, load and input voltage.
This servo is compatible with the FE-UR1 Serial Bus servo controller.
Specifications:
- Operating Temperature Range: -15℃～70℃
- Size: 23.2mm x 12.1mm x 25.25mm
- Weight: 13.2± 1g
- Gear type: Metal
- Horn gear spline: 20T/OD3.95mm
- Horn type: Plastic
- Case: Plastic
- Operating Voltage Range: 4-7.4V DC
- No load speed: 0.1sec/60°@6V
- Peak stall torque: 2.3kg.cm@6V
- Stall current: 1.0A@6V
- Command signal: Digital Packet
- Protocol Type: Half duplex Asynchronous Serial Communication
- ID range: 0-253
- Communication Speed: 38400bps ~ 1 Mbps
- Running degree: 300°(when 0～1024)
- Feedback: Load（Position, Speed, Input Voltage, Temperature

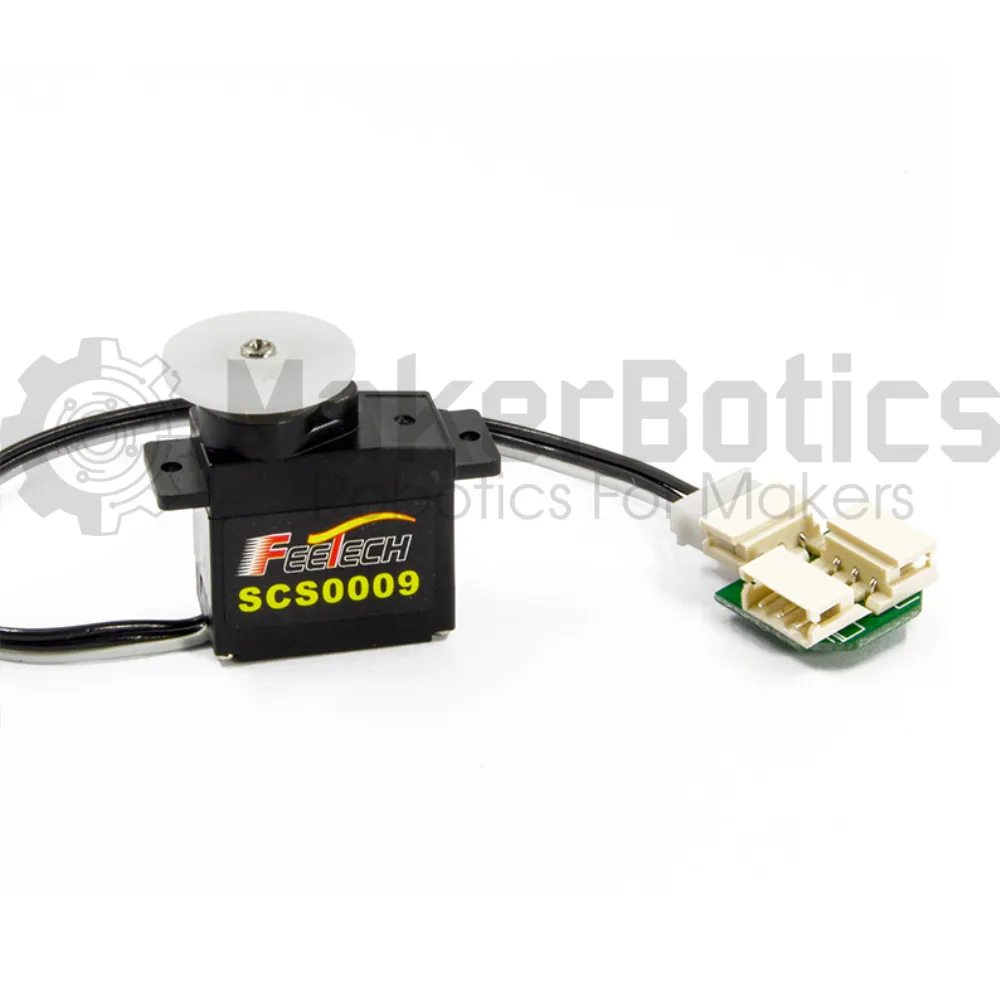

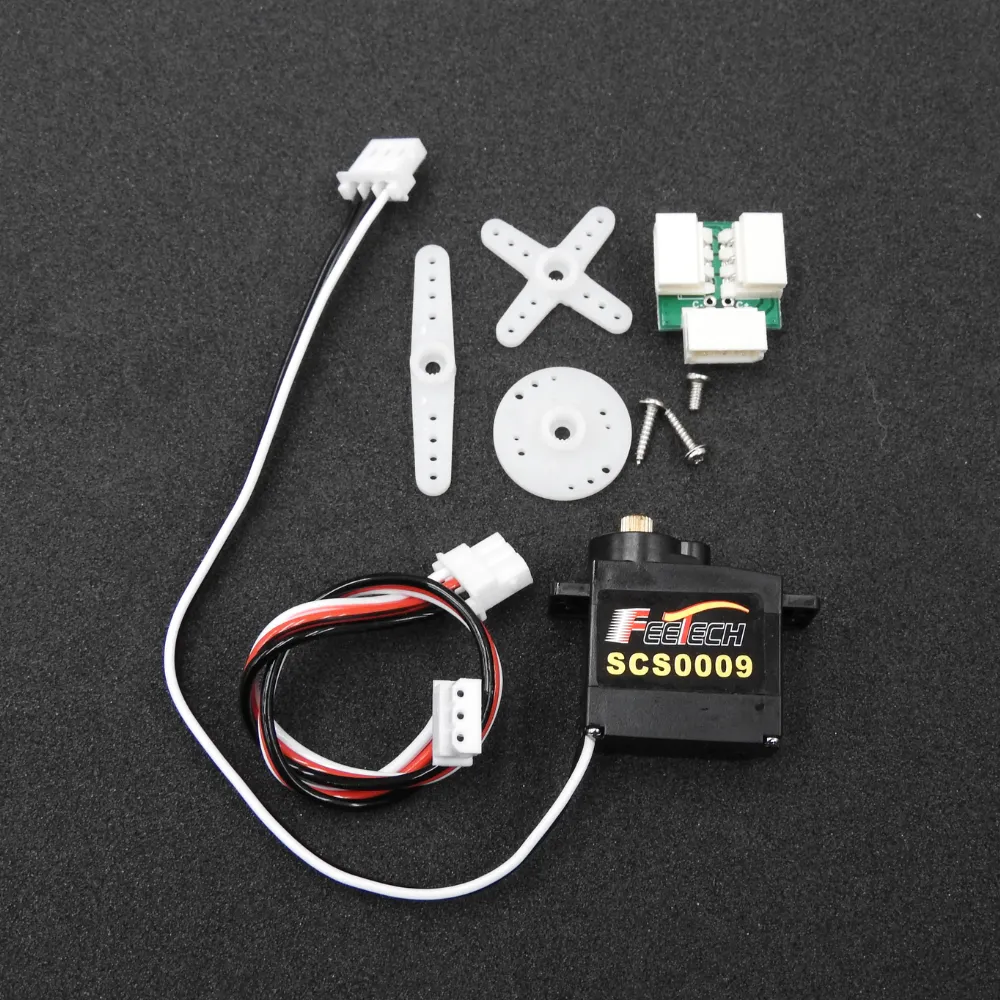

Included
- 1x SCS0009 Serial Bus Servo

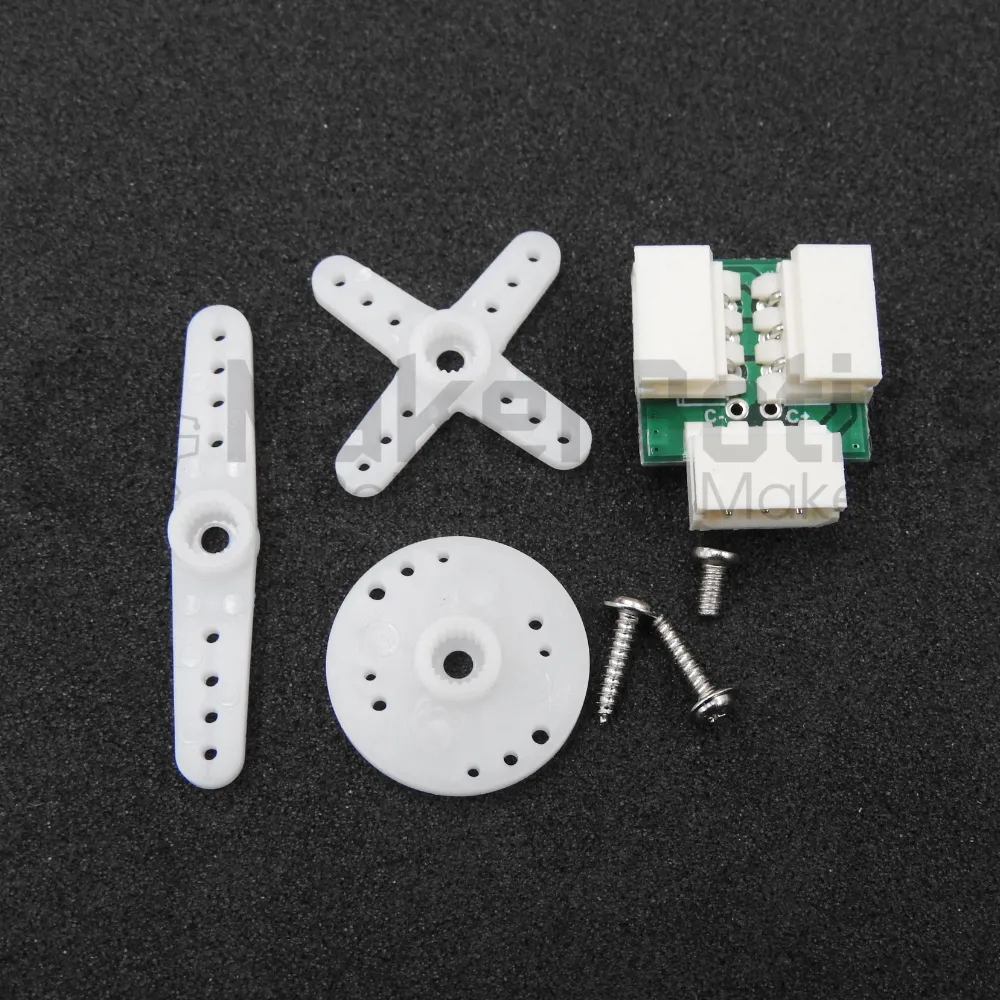

- 3x servo horn and arms
- Serial Bus Adaptor Module
- Serial Bus cable

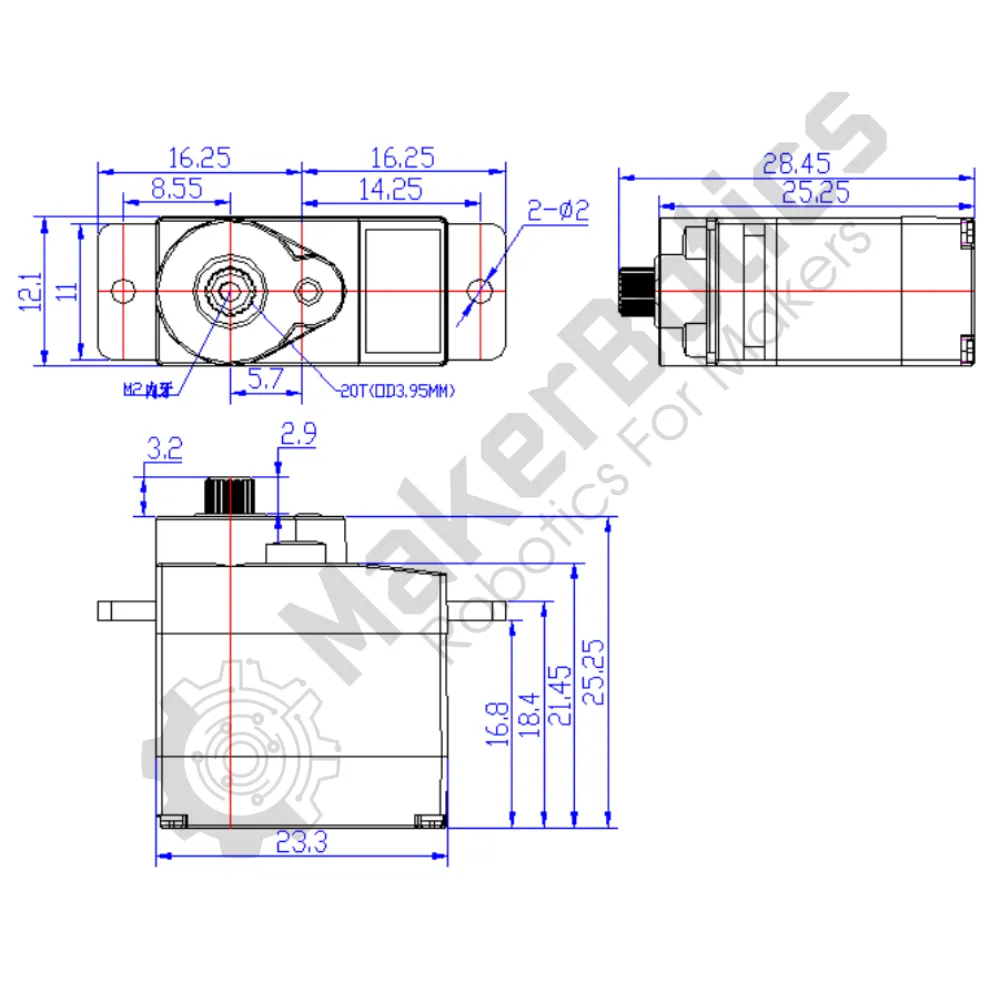

Engineering Drawings
Note: All dimensions are in mm
| Weight | 0.11 kg |
|---|---|
| Dimensions | 4 × 2 × 4 cm |
