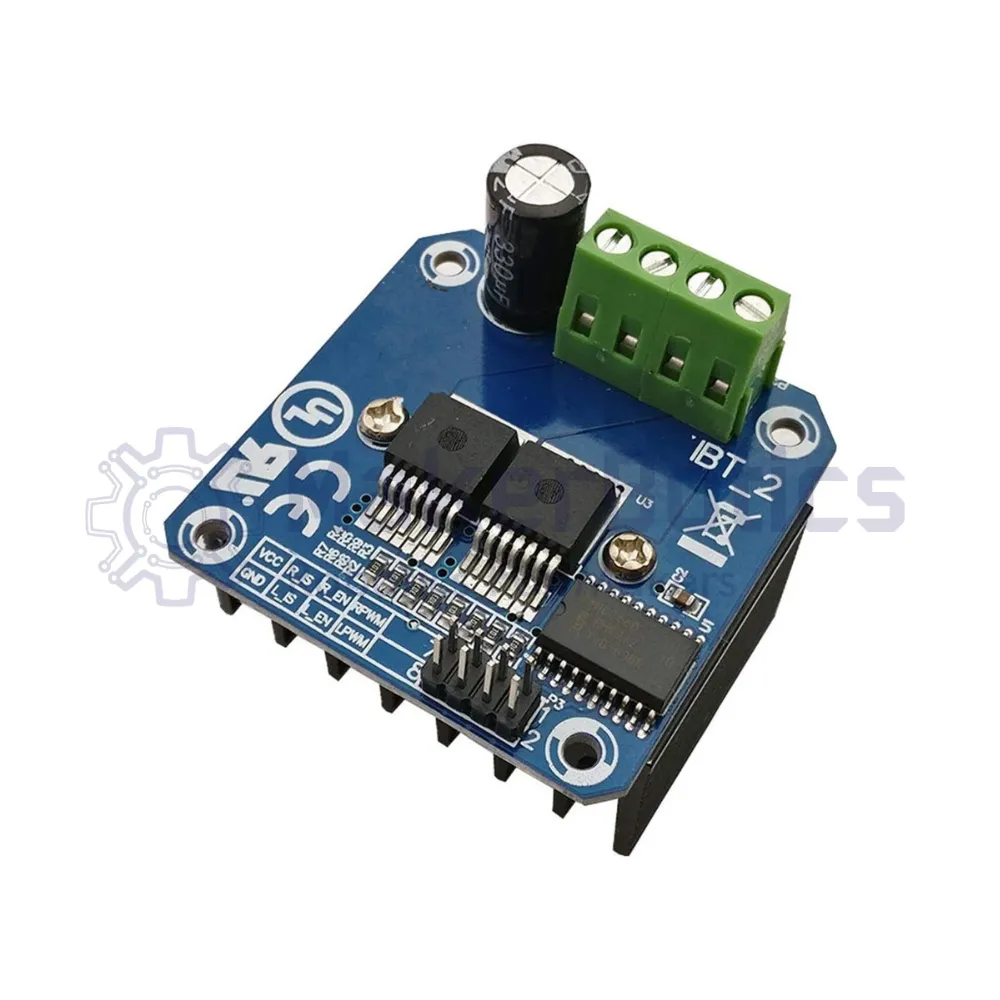

The BTS7960 Motor Driver is well suited for a DC motor-driven project demanding high current and a wide voltage input range of between 6-27VDC.

This high-current motor driver includes a BTS7960, an advanced motor driver IC with advanced features such as thermal overcurrent protection, current sense and undervoltage protection. The driver can easily be interfaced with micro-controllers such as the popular Arduino, ESP32 and Teensy microcontroller and the control method is via two control signal inputs. The driver can work with both 3.3 and 5V signal logic levels.

Use this motor driver to control our MakerBotics selection of motors.

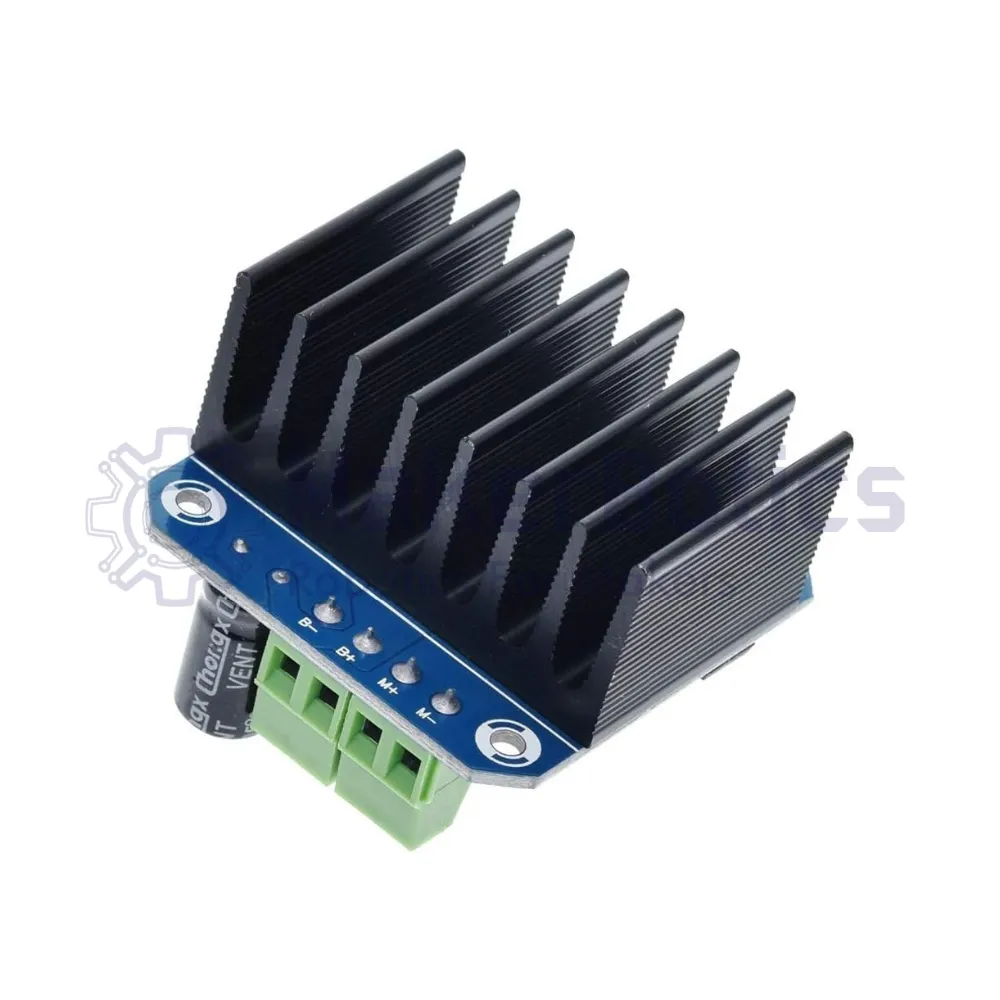

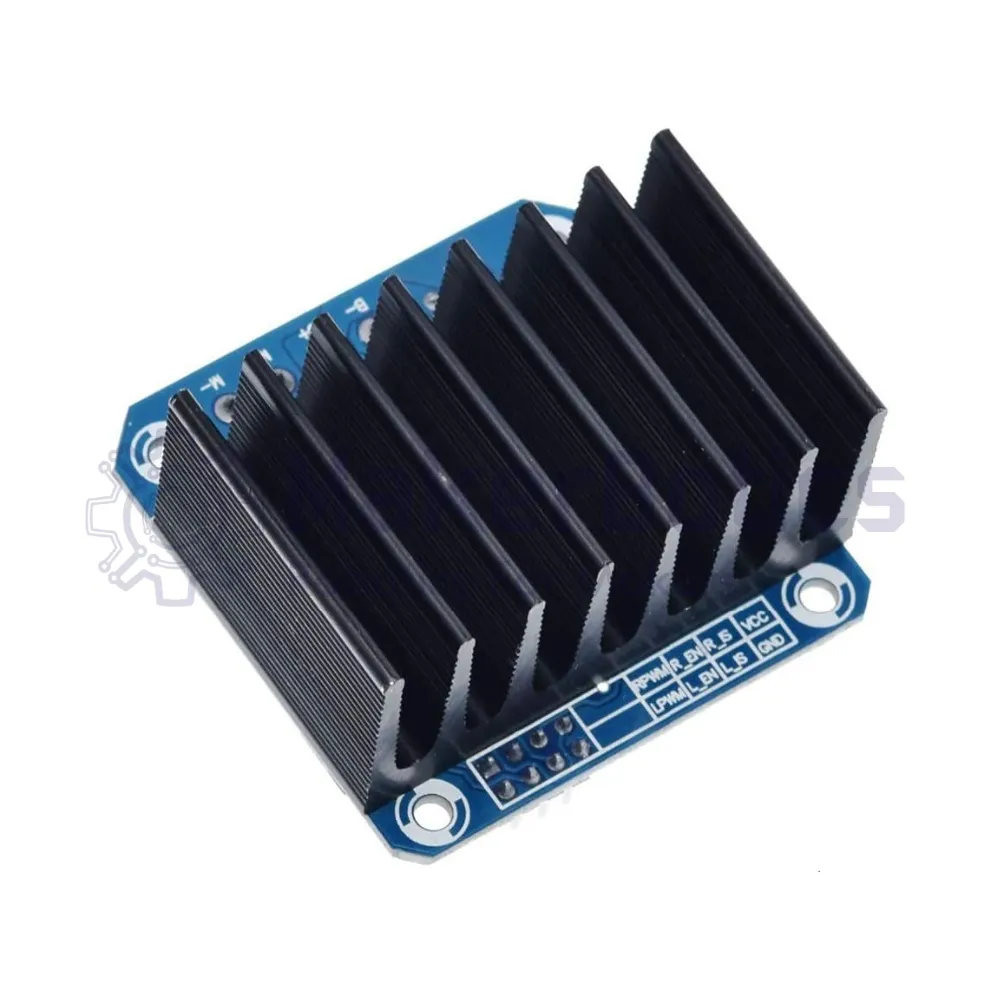

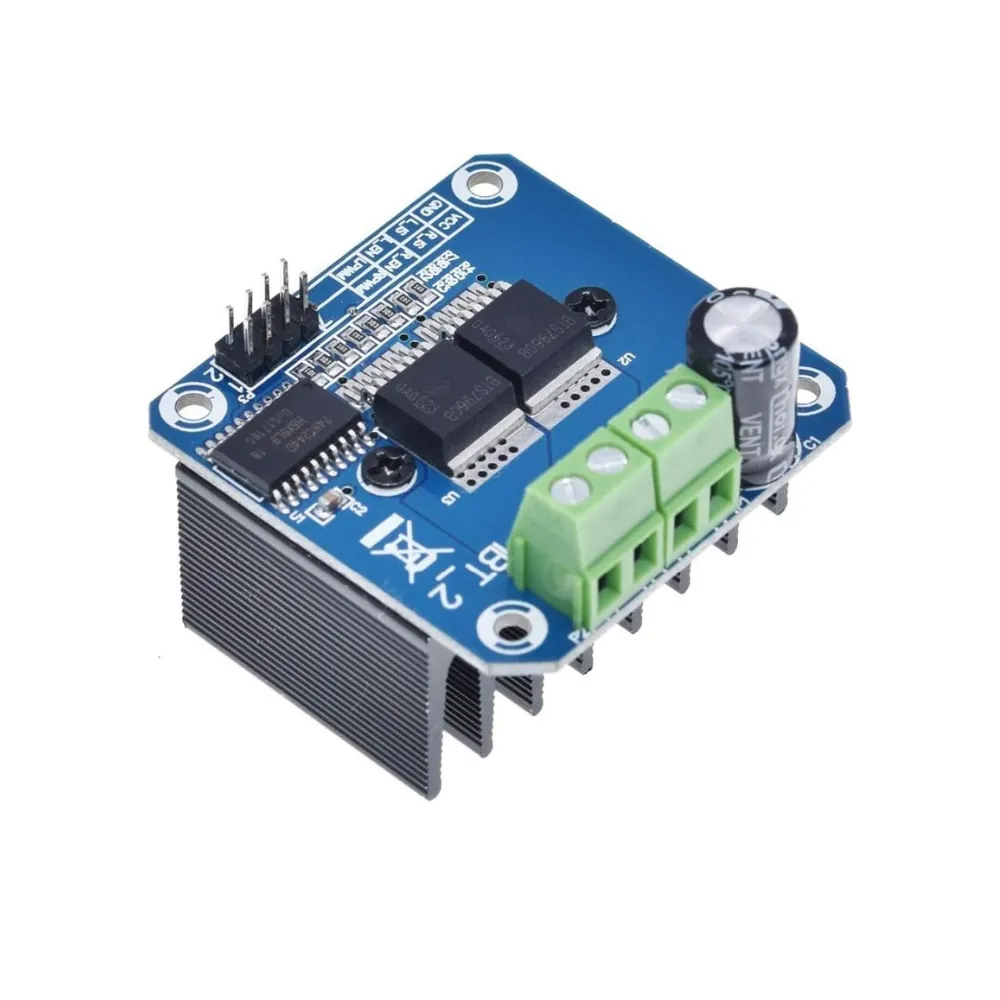

The BTS7960 Motor Driver features a large black-anodised aluminium heatsink to dissipate heat and ensures higher operating efficiency.

Specifications:

• Input Voltage: 9 ~ 27VDC.
• Driver: BTS7960 Motor Driver IC in a H Bridge Configuration.
• Maximum recommended operating current: 30A
• Peak current: 43A.
• PWM capability of up to 25 kHz.
• Control Input Level: 3.3~5VDC.
• Control Mode: PWM or High/Low Logic Level
• Working Duty Cycle: 0 ~100%.
• Over-voltage Lock Out.
• Under-voltage Shut Down.
• Board Size (LxWxH): 50mm x 50mm x 43mm.

Pinout and Function

The table below identifies the pins on the motor driver module and their functions.

Resources

• Arduino IDE Library
